10 points Non-Reversible Temperature Monitors - Maximum temperature: 138°C, Minimum temperature: 88°C, Pack of: 10 pcs
Item# (PN): TL-10-190-10 Shipping and Payment
Packs of 10 and 30 pcs. Non-Reversible temperature labels. Gives a Permanent Record of Temperature Reached. Indicator turns black when exposed. Adhesive backs for easy mounting. 18 mm wide by 54 mm long. Indicates in Degrees F and Degrees C. More

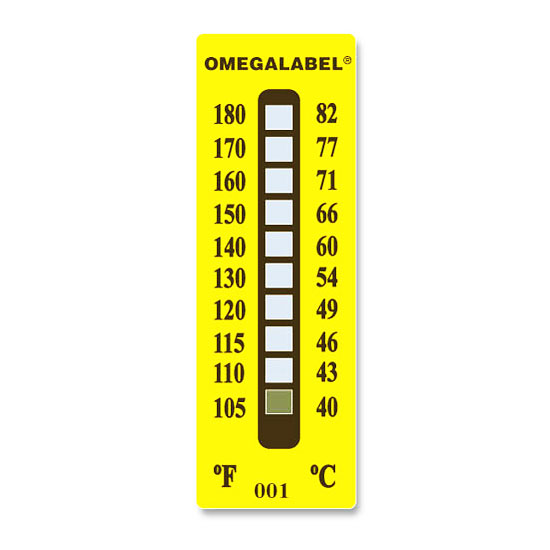

TL-10 temperature labels feature ten silver "dots", each representing a different temperature. As their corresponding temperature is reached the dots change colour permanently from silver to black.
Omega temperature labels have a self-adhesive backing for easy application to clean, dry surfaces and are available in packs of 10 or 30. Large quantites can also be provided in bulk packaging or with custom temperature ranges, please contact our sales department for details.
Model No. | Temperature Points | ||||||||||
TL-10-105 | °F | 105 | 110 | 115 | 120 | 130 | 140 | 150 | 160 | 170 | 180 |
°C | 40 | 43 | 46 | 49 | 54 | 60 | 66 | 71 | 77 | 82 | |
TL-10-190 | °F | 190 | 200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 |
°C | 88 | 93 | 99 | 104 | 110 | 116 | 121 | 127 | 132 | 138 | |
TL-10-290 | °F | 290 | 300 | 310 | 320 | 330 | 340 | 350 | 360 | 370 | 380 |
°C | 143 | 149 | 154 | 160 | 166 | 171 | 177 | 182 | 188 | 193 | |
TL-10-390 | °F | 390 | 400 | 410 | 420 | 435 | 450 | 465 | 480 | 490 | 500 |
°C | 198 | 204 | 210 | 216 | 224 | 232 | 241 | 249 | 254 | 260 |
SPECIFICATIONS:
From 100°C (212°F) to 154°C (309°F) is ±1.5°C (2.7°F);
From 160°C (320°F) to 280°C (536°F) is ±1% and ±1°C (1.8°F)
How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
