3-Prong Standard Size Connector for Thermocouple, RTD and Thermistor - Thermocouple type: K, Connector type: female
3 Prong / Pin Standard Design. Thermocouple Color Coded ANSI or IEC. White Uncompensated Available. Glass Filled Nylon Rated to 180°C (356°F). Allows Connection of a Shield with Thermocouple Sensors. U Version for 3 Wire RTD. Plug & Socket Version Available. More

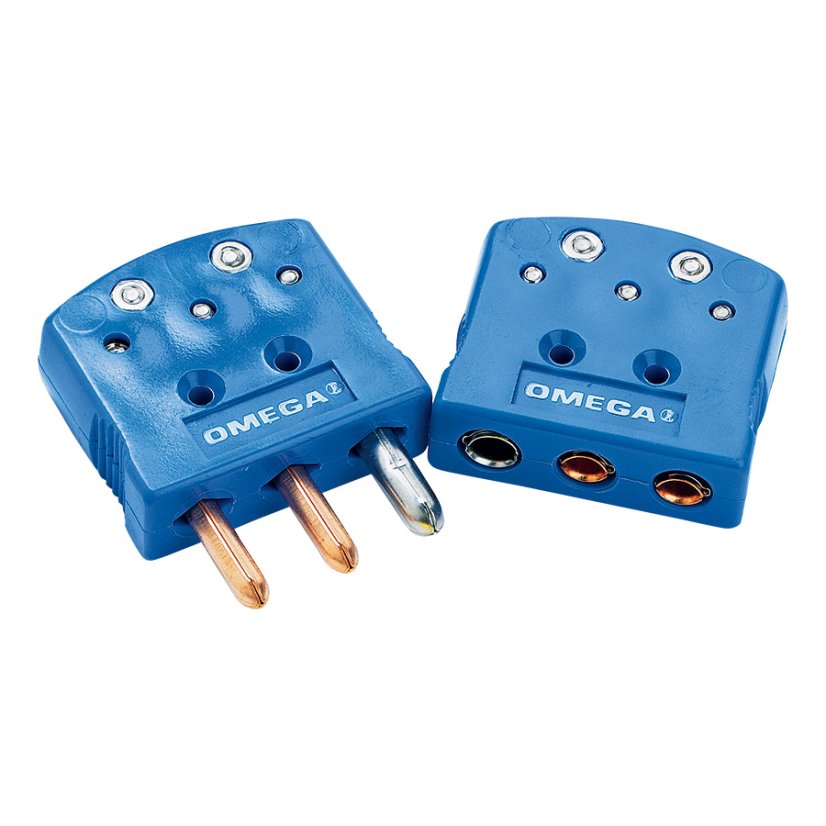

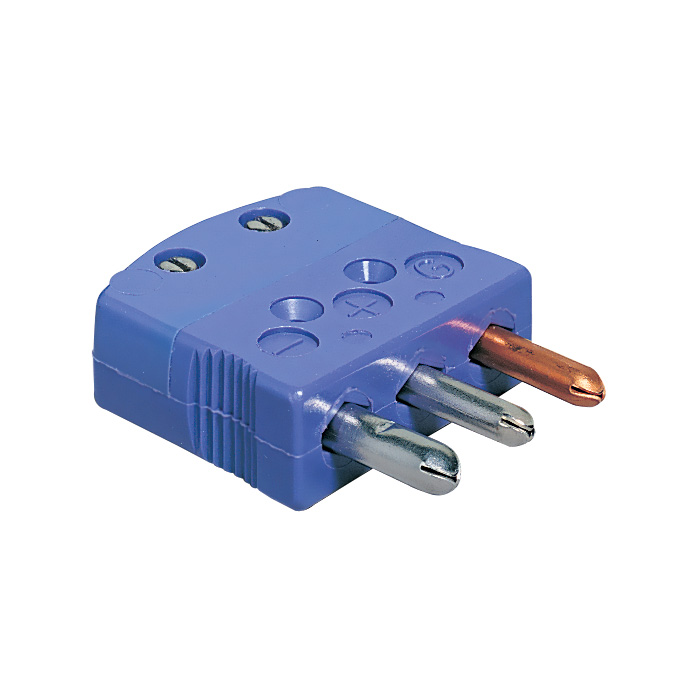

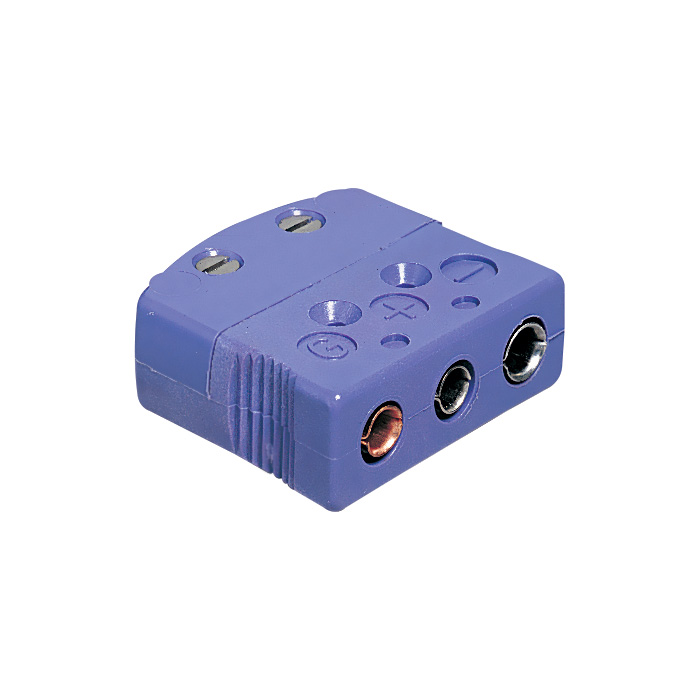

The OTP 3-prong is standard sized with round pins and is available color-coded for thermocouple or white for uncompensated 3 wire and 3 pin TC connectors. These quick disconnect plugs and jacks provide reliable connections between thermocouple, RTD or thermistors (type U) and extension wires. The color-coded bodies are molded of high performance glass-reinforced nylon. Tubular plug prongs and collet-type jack inserts have low mass and reduce temperature gradients. Negative prongs and inserts are larger than positives to insure proper polarity upon connection. This is a standard feature on all connectors. Recommended for most applications requiring three-wire circuits, including shielded thermocouples, thermistors, and RTD's. Especially useful for continuing thermocouple shield leads through panel jacks. High-impact construction.
Standard supply is ANSI version, if you want to order IEC version, please state this in the note.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
