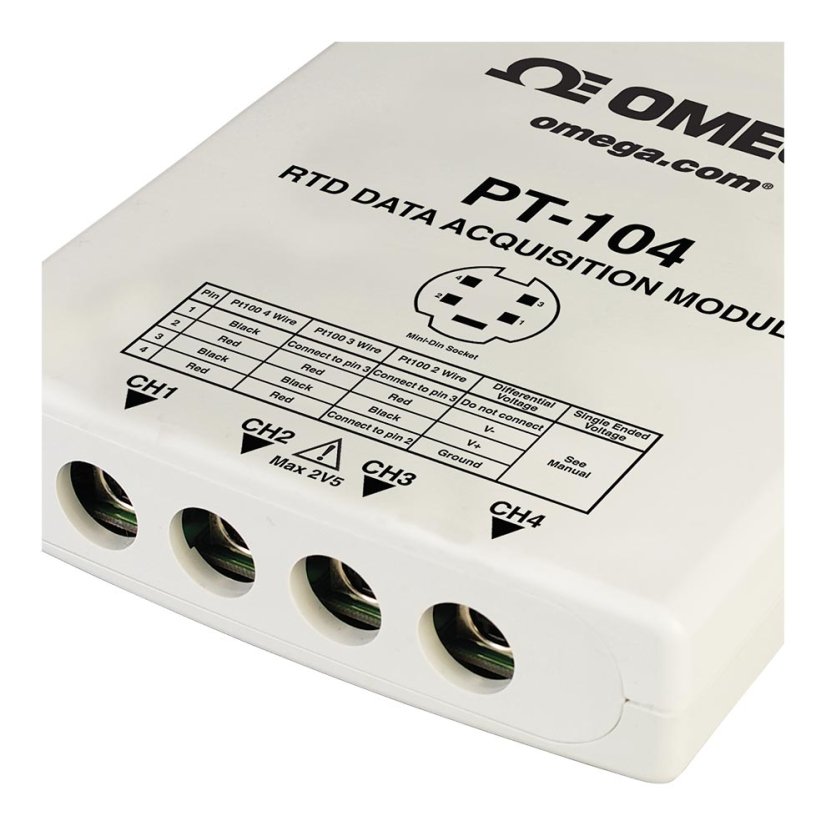

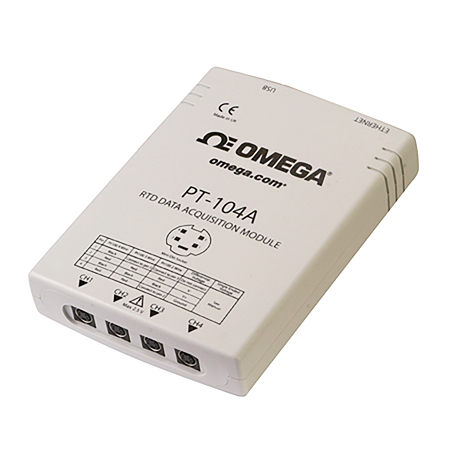

4-Channel RTD Input DAQ Module with USB or Ethernet Interface
Measures Temperature (RTDs), Resistance and Voltage. High Accuracy (0.01°C) and Resolution (0.001°C). Powered by USB Port or Power-Over-Ethernet (PoE). For Use with 2, 3 and 4-Wire Pt100 and Pt1000 RTD Sensors. Software for Windows, MacOS, Linux and Raspbian. Can be mixed with TC-08 thermocouple input modules and used at the same time. More
The PT-104A is a four-channel, high-resolution temperature data acquisition module for use with PT100 and PT1000 RTD sensors. It can also be used to measure resistance and voltage. In PT100/PT1000/ resistance mode, the unit uses a four wire circuit. In voltage mode, the input connector can be treated as a differential input with ground, or two single-ended inputs. Both inputs must be 0V or above, though it does not matter which input has the higher voltage.
Although accurate temperature sensors are widely available, it has been difficult to take advantage of them due to errors caused by the measuring device. The PT-104A, however, is designed to be inherently accurate. Rather than relying on voltage references (which tend to be temperature sensitive) it uses ‘reference’ resistors which are extremely stable (low temperature coefficient and drift). The exact value of each resistor is stored in an EEPROM to provide the ultimate in accuracy. To achieve the 0.001°C resolution a highly advanced ADC is used that can resolve to better than 1 part in 16 million.
PT-104A modules can be mixed with TC-08 thermocouple input modules and used at the same time. Up to 20 units of any kind (PT-104A or TC-08) can be connected.
The PT-104A measures temperature using platinum resistance temperature sensors (RTDs). Both common industry standards (PT100 and PT1000) are supported. The unit is compatible with 2, 3 and 4 wire sensors (4 wire PT100 sensors are recommended for accurate measurements).
When measuring resistance, the unit uses a four-wire circuit to give the greatest possible accuracy. Two resistance ranges are available (0 to 375 Ohm and 0 to 10,000 Ohm). The unit is calibrated for 0 to 375 Ohm so this range should be used for accurate measurements.
For voltage measurements, each input connector can be treated as a differential input with ground, or two single-ended inputs. Both inputs must be zero volts or above, though it does not matter which input has the higher voltage. Two voltage ranges are available (0 to 115 mV and 0 to 2500 mV). For the most accurate measurements use the 0 to 2500 mV range
Remote Data Collection
The new USB/Ethernet interface allows the logger to be used in a variety of situations: USB-only, USBpowered with Ethernet data, and Ethernet data with Power-over- Ethernet (PoE). Using the Ethernet interface, the PT-104A can be located anywhere on a LAN or on the internet.
Power over Ethernet (PoE)
The PT-104A can obtain its power from the Ethernet port as a Powered Device (PD) according to the PoE standard. To use this feature, you must connect the unit to Power Sourcing Equipment (PSE) such as a network switch, router or power injector that also supports the PoE standard. Any standard Ethernet cable up to 100 m (about 328') in length can be used.
The PT-104A is supplied with Windows Logging and Player Software. The software will automatically detect which sensor is connected and will display readings in the correct units. Also supplied is a software development kit (SDK). The SDK contains a range of software drivers and example code that you can use to write your own software or to use your PT-104A data logger with third party software.
With the included Logging Software you can set the sampling interval from 1 second to several hours and set the maximum number of readings. You can also tell the PT-104A data acquisition module what do to when the temperature readings have been taken—either: stop; repeat immediately (start again); scroll (oldest recordings disappear); or repeat after delay (where the delay is set by the user). Using the PT-104A logging software, data can be viewed in a spreadsheet and/or in a graph as it is being recorded. Data collected from previous recordings can also be viewed using the Player. The control software is available for various platforms - Windows, MacOS, Linux and Raspbian for the popular Raspberry Pi single board computers.
If you are interested in temperature calibration, also select the appropriate temperature probes for the required number of channels.
|Input / output|
|Range||–200 to +800 °C||0 to 375 Ω
0 to 10 kΩ
|0 to 115 mV
0 to 2.5 V
|Accuracy (at 23 ±2 °C)||0.015 °C
+ 0.01% of reading
|50 ppm at 100 Ω||0.4%|
|Temperature coefficient||5 ppm/°C||5 ppm/°C||100 ppm/°C|
|RMS noise with filter||0.01 °C||10 ppm||10 ppm|
|Resolution||0.001 °C||1 µΩ||0.156 µV|
|Overload protection||±30 V|
|Number of inputs||4|
|Converter resolution||24 bits|
|Conversion time||720 ms per channel|
|Input connectors||4-pin mini-DIN|
|Input impedance||>1 MΩ|
|Output connectors||USB and Ethernet|
