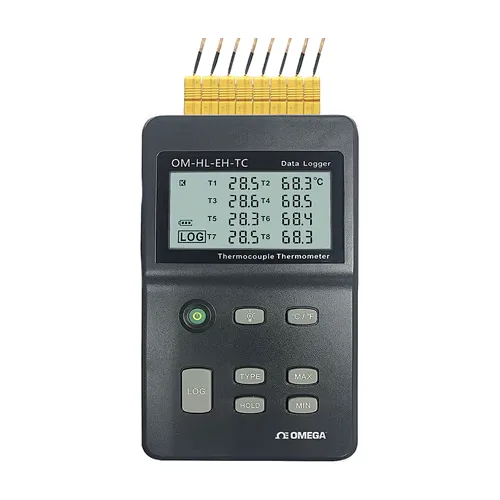

8 Channel Handheld Thermocouple Thermometer/Data Logger

Add to favourites Add to compare list

Calibration of Temperature (accredited, 100-1100°C)

3 points calibration

5 points calibration

Specify calibration points, address for calibration certificate...

€ 376.80 excl. VAT

can be ordered - date of dispatch to be specified

qty

Support 8 Types Thermocouple: K, J, E, T, R, S, N, B. Each Channel Store Up to 8,6000 Data Points. NIST Traceable Calibration Report Available. Large LCD Display 8 Channels, Switchable °C or °F. Real Time Data Monitoring and Tracking Capability. Download Data Through the USB Interface. Sampling Rate 1 Sec & Logging Cycle From 2 Seconds to 24 Hour. Professional OM-HL Logpro Software for Data Logging, Monitoring and Analysis. More

Item# (PN): OM-HL-EH-TC Shipping and Payment

The portable OM-HL-EH-TC logger is an eight-channel handheld thermometer/data logger with a large LCD display, which can take all 8 types of thermocouple inputs. This user friendly data logger is powered by an internal battery and capable of sampling, processing and displaying measurements without being connected to a computer.

OM-HL-EH-TC Operation Instruction

With the high resolution and fast analog to digital converter (ADC), the OM-HL-EH-TC logger meet majority of data logging requirements in most industrial applications, 86000 data points each channel, real-time data monitoring & recording, sampling time 1 sec with all 8 channels on, logging interval sets from 2 secs to 24 hrs comes standard.

OM-HL-EH-TC Software Setup

By using the professional OM-HL Logpro software, this data logger can save the 8-channels temperature measuring data, along with the time information (year, month, date, minute, second) into the computer and can download to Excel, PDF, and JPG formats. The end user can easily make any data or graphic analysis if needed.

If you are interested in temperature calibration, also select the appropriate temperature probes for the required number of channels.

SPECIFICATIONS:

Battery: DC 9V battery
Usage Type: Handheld or Desktop
Product Features: Professional OM-HL analysis software is simple to use, data multiple protection, professional cold chain compensation, automatic detection of break-even
Display: LCD Double Row Display
Keys: On/Off button, screen light control, ºC/ºF switching, LOG, TYPE, HOLD MAX, and MIN
Measurement Range: -200 to 1800ºC
Accuracy: ±0.8ºC ±0.2% Reading
Memory Capacity: 86000 readings each channel
Sampling Rate: 1 sec
Logging Interval: 2 secs to 24 hours
Battery Life: 4 months(60s sampling 300s Logging as Standard)
Sensors: Support eight types of thermocouple sensor K, J, E, T, R, S, N, B
Work Environment: 0 to 80% RH/ 0 to 50ºC
LCD Size: 68 x 35 mm
Dimensions: 162 x 95 x 35 mm
Packing Size: 202 x 165 x 58 mm
Weight: 290 g
Resolution: 0.1ºC
Compatible OS: WIN 7 / 8 / 10
Connection: USB
Number of Temperature Channels: 8
Certifications: CE, ROHS, NIST Calibration Report (Optional)

Download

OM-HL-EH-TC_cz_manual.pdf (pdf, 579.1 kB)

OM-HL-EH-TC_en_manual.pdf (pdf, 2.7 MB)

OM-HL_software_v1.5.5.zip (zip, 4.6 MB)
