Bolt On Washer Thermocouple

More photos (2)

Quick Calibration

Price

from € 15,30 excl. VAT

Manufacturer

Product code

Screw size

Thermocouple type

Wire insulation

Lenght

Assembly of connectors (optional)

Connector assembly

Thermocouple Calibration (accredited, 100-1100°C)

Thermocouple calibration

Specify calibration points, address for calibration certificate...

qty

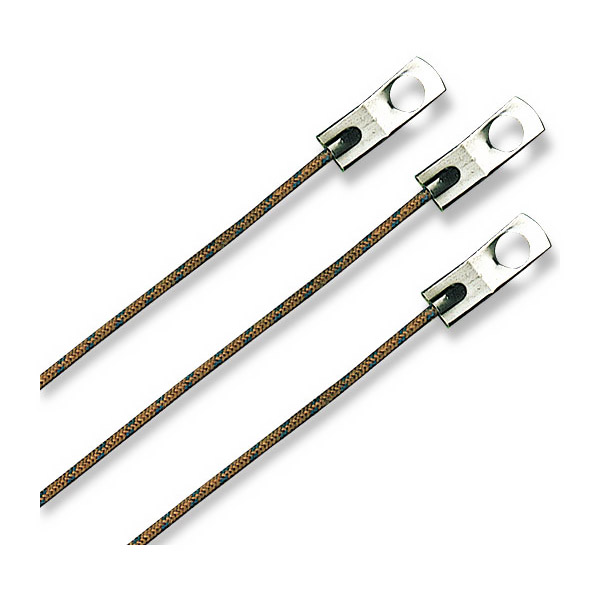

J, K, T, and E Thermocouple. New Rugged Design. For M3.5, M4, M4.5 and M6 Screw Sizes. Made from 0.8 mm Dia. Glass-On-Glass or PFA-Insulated Class 1 Tolerance Wire. Stocked in 300 mm, 600 mm, 1.0 m, and 1.5 m Lengths with Stripped End Leads. Rated up to 480°C for Glass-On-Glass Insulation. Rated up to 260°C for PFA Insulation. Special Lead Lengths. Thermocouple Connectors in lieu of Stripped End Leads. More

Add to favourites Add to compare list Shipping and Payment

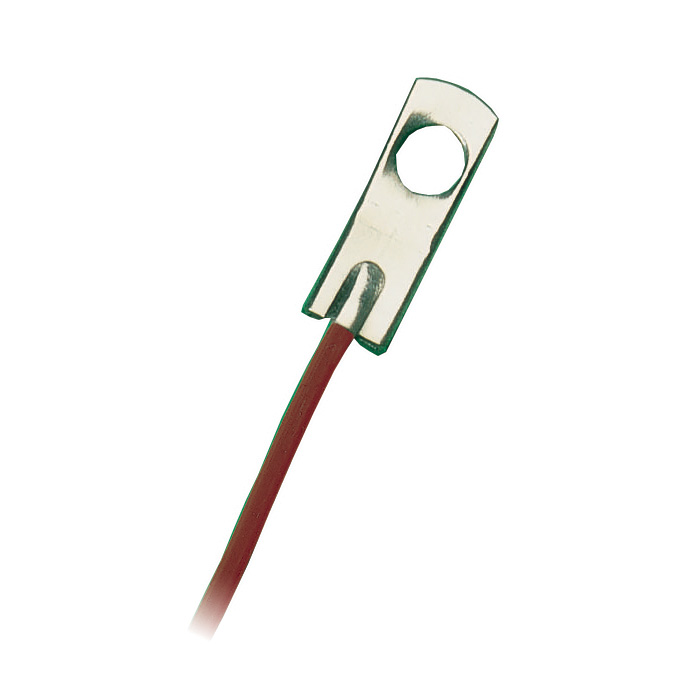

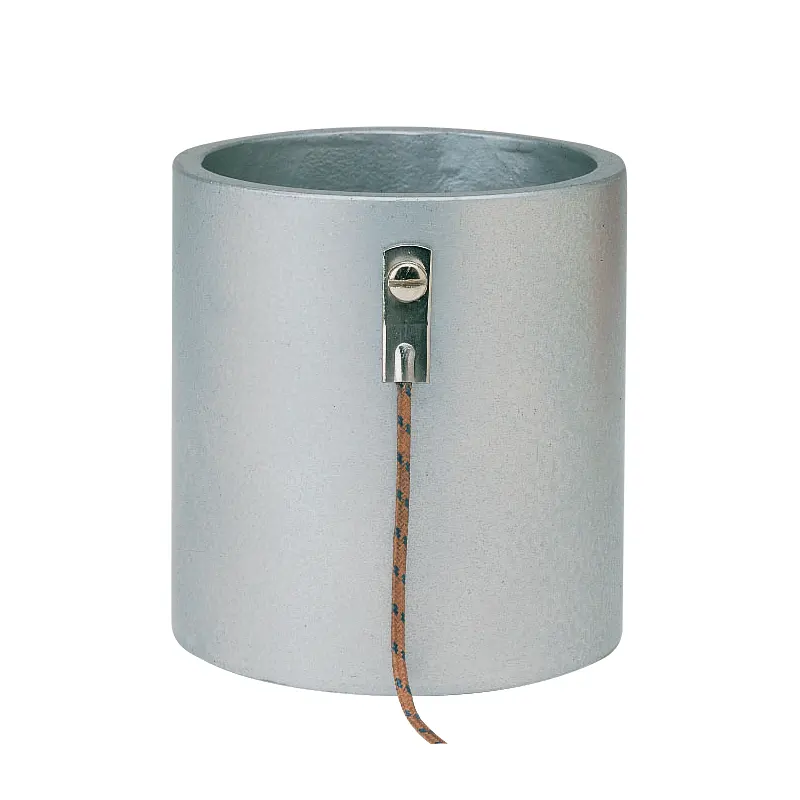

A versatile thermocouple assembly that easily mounts to a variety of surfaces. Suitable for a number of surface temperature measurement applications where fixed mounting is possible.

Complete informations can be found in the spec sheet (PDF), see the "Download" section.

Comes with bare stripped ends as standard. You can order the probe, including the installation of connectors. Put the required connectors in the basket together with the probe. If needed, order the required connectors separately, see "Related Products" below.

SPECIFICATIONS:

Washer Dimensions:
M3.5 and M4 screw size: 22 L x 6.5 mm W
M4.5 and M6 screw size: 25 L x 9 mm W

Temperature:
Rated up to 480°C for Glass-On-Glass Insulation.
Rated up to 260°C for PFA Insulation

Option Descriptions:

(1) Thermocouple Type select from:
J for J Thermocouple
K for K Thermocouple
T for T Thermocouple (maximum temperature is 260°C regardless of insulation)
E for E Thermocouple

(2) Screw Size select from:
6 for M3.5 Screw Size
8 for M4 Screw Size
10 for M4.5 Screw Size
14 for M6 Screw Size

(3) Thermocouple Length select from:
M300 for 300 mm
M600 for 600 mm
1M for 1 m
1.5M for 1.5 m

(4) Insulation select from:
Nothing(leave field blank) for Glass Fibre
-TT for PFA

Note: All combinations may not be valid, check spec sheet for valid part numbers.

Download

WT_spec_sheet.pdf (pdf, 165.6 kB)

Barevne_znaceni_ANSI_IEC.pdf (pdf, 82.2 kB)

Thermocouple Sensor - What is a Thermocouple?

A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.

Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...

How is Temperature Measured?

Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.

Choose the right temperature measurement instrument for your application...

What is a Type K Thermocouple?

What Are Common Applications for Thermocouples?

Thermocouples are the most widely used temperature sensors on the planet due to their combination of wide temperature capabilities, ruggedness, and low cost. Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites and spacecraft.

When it comes to high temperatures, small size, fast response, high vibration or shock, most times you will find thermocouples providing the temperature measurements.
