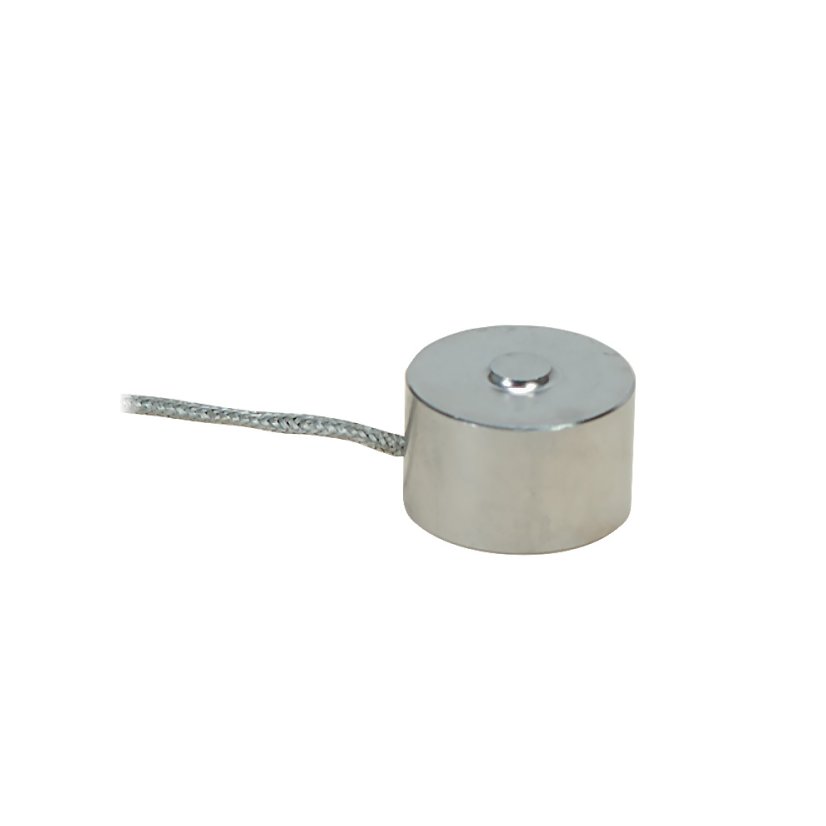

Button Style Load Cell 0-100 N to 0-5 kN Diameter 19 mm

Price
€ 371,10 excl. VAT, € 449,03 incl. VAT

Manufacturer
OMEGA

Product code
LCM302

Specify product selection
Variant does not exist

qty

Small 19 mm Dia. Low 13 mm Profile. Robotic and Test Bench Applications. Built in Load Button for Easy Installation. 5-Point Traceable Calibration Provided. Stainless Steel Construction. More

The LCM302 Series is only 19 mm in diameter and fits in the smallest places. Its high ±0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gauge assures long term reliability in industrial environments.

SPECIFICATIONS:

Excitation: 10 Vdc, 15 Vdc max
Output: 1 mV/V (nominal)
Accuracy: ±0.5% FSO (linearity, hysteresis and repeatability combined)
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: 0.009% FSO/°C Span: 0.036% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms minimum
Construction: Stainless Steel
Protection Class: IP54
Electrical: 1.5 m (5 ft) 4 Conductor Shielded Cable
