Button Style Load Cell 0-100 N to 0-50 kN Diameter 51 mm
Item# (PN): LCM305 Shipping and Payment
Button compression load cell with 0.25% Interchangeability for Scale Applications. Rugged, Stainless Steel Construction. Built-in Load Button for Easy Installation. 5-Point Calibration Certificate Included. FM Intrinsically Safe. More

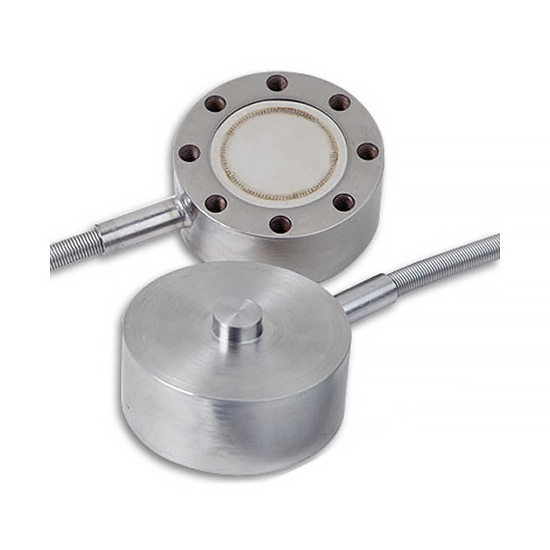

OMEGA’s LCM305 Series Load Cell is a heavy duty miniature (51mm dia.) compression load cell. Factory Mutual Intrinsically Safe rating is standard. Its small size and low profile make it ideal for test benches, prototype structures and industrial weighing applications. There are 8 x M5 mounting holes in the base of the load cell for locating it securely to the test fixture or structure.
SPECIFICATIONS:
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V (±0.25%)
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Agency Approvals: FM IS/I.II.III/1/CDEFG – Standard
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: 0.0045% FSO/°C Span: 0.009% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±10 Ohms
Protection Class: IP65
Construction: Stainless Steel
Electrical: 3 m (10 ft) 4-conductor colour coded, shielded cable

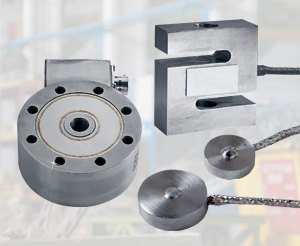

Introduction to Load Cells
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of force sensors, strain gauge load cells are the most commonly used type.
Except for certain laboratories where precision mechanical balances are still used, strain gauge load cells dominate the weighing industry. Pneumatic load cells are sometimes used where intrinsic safety and hygiene are desired, and hydraulic load cells are considered in remote locations, as they do not require a power supply...
