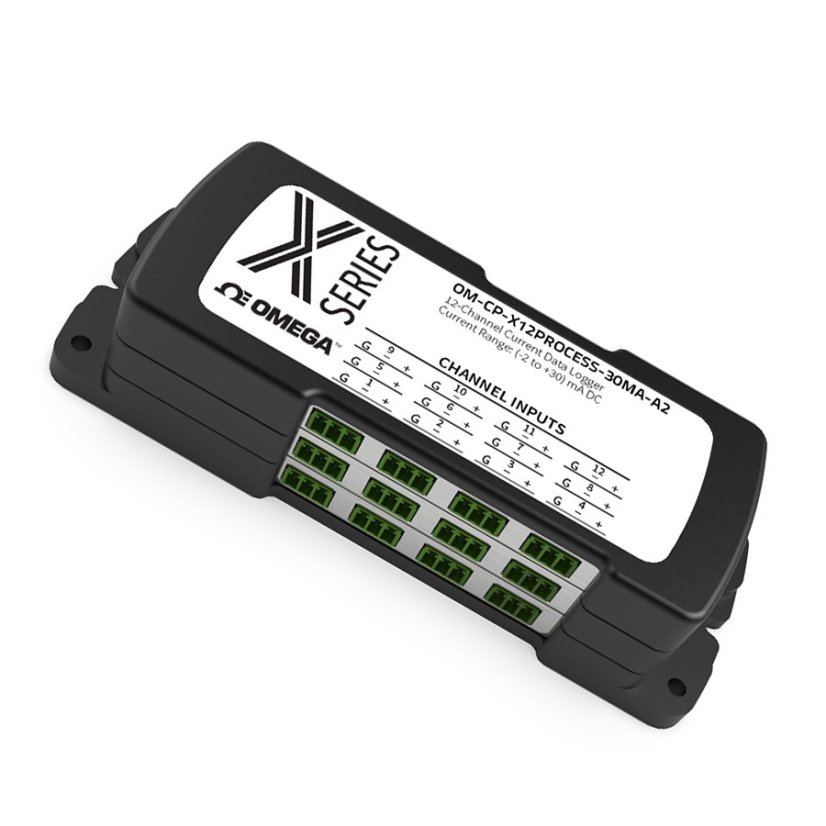

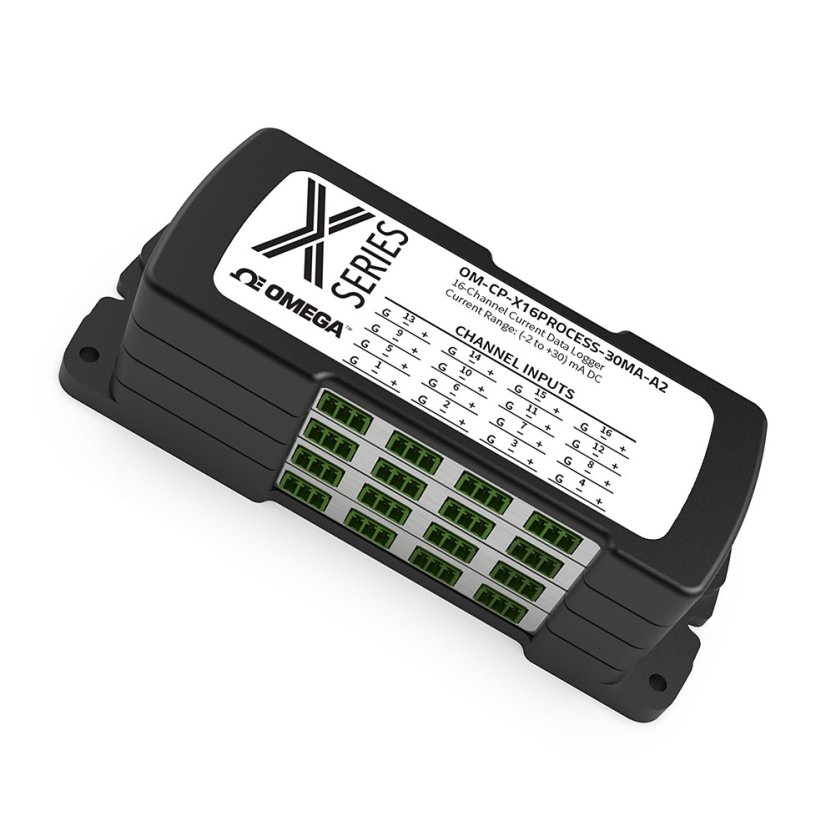

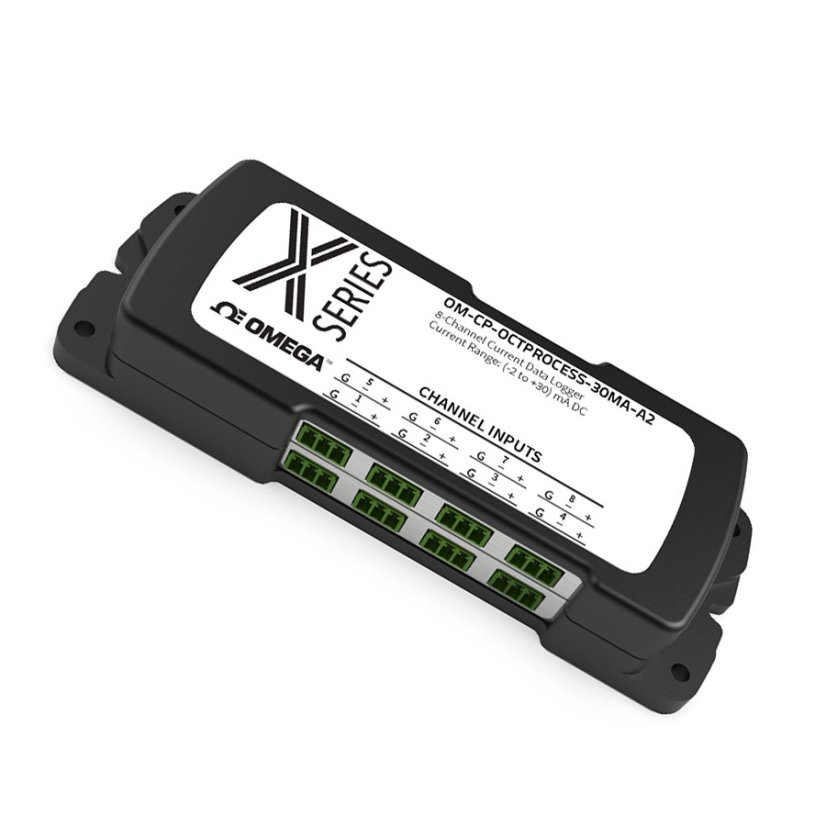

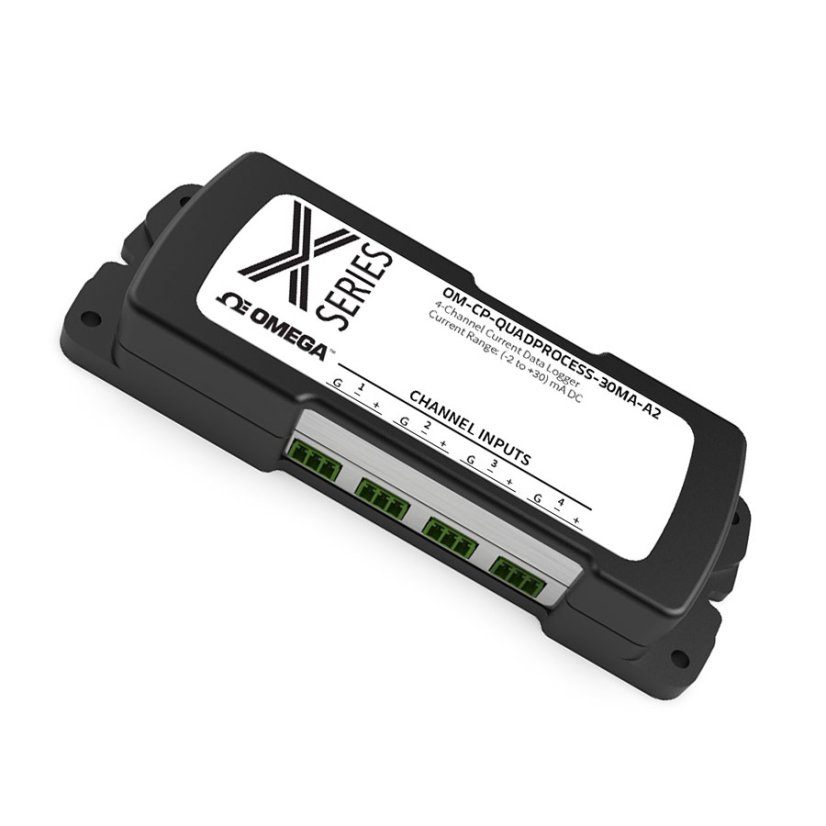

Current Data Logger with 4, 8, 12 or 16-channels
16-bit Readings Provide High Resolution. User-defined Engineering Units. Pushbutton or Programmable Start Time. External Power or User Replaceable Battery. Real Time Operation. Up to 4 Hz Reading Rate. NIST Traceable Calibration Certificate Included. Configurable Channel Names. Does not require a communication interface, connects to the PC directly with a USB cable. More
Item# (PN): OM-CP-XProcess Shipping and Payment
The new OM-CP-ProcessX Series consists of 4, 8, 12 and 16-channel, battery powered, low level DC current data loggers with a reading rate of up to 4 Hz. X-Series devices ship with a standard USB-A to Micro USB cable for use with free OM-CP PC based software (no longer requires the OM-CP-IFC200 communication interface like previous models). The X-series has a high memory capacity and increased download speed compared to previous generations of product.
These easy-to-use devices feature an 18 month typical battery life, user replaceable battery and programmable engineering units. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.
Using the OM-CP Data Logger Software, starting, stopping and downloading from the OM-CP-ProcessX Series data loggers is simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
For technical specifications, see the spec sheet in the "Downloads" section.
Data Logger / Introduction to Data Logging Devices
Technically speaking, a data logger is any device that can be used to store data. This includes many data acquisition devices such as plug-in boards or serial communication systems which use a computer as a real time data recording system. Most instrument manufacturers, however, consider a datalogger a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.
The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Data loggers are available in various shapes and sizes...
