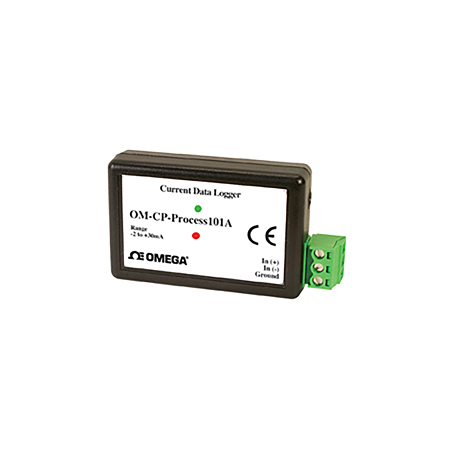

DC current Data Logger
±20mA & ±160mA DC current, perfect as your 4-20mA data logger. 10 Year Battery Life. 4 Hz Reading Rate. Multiple Start/Stop Function. 1 Million Reading Storage Capacity. Ultra High Speed Download. Battery Life Indicator. Optional Password Protection. Programmable High and Low Alarms. More
Item# (PN): OM-CP-PROCESS101A-20MA Shipping and Payment
The OM-CP-PROCESS101A is one of our newest data loggers. It is part of a new series of low cost, state-ofthe- art data logging devices that has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.
The OM-CP-PROCESS101A is available in two ranges, 20 mA and ±160 mA. It is perfect as a 4-20 mA process signal data logger. Both models offer a 10 year battery life, a 4Hz reading rate, a multiple start/stop function, ultrahigh speed download capability, 1 million reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. Using the OM-CP-IFC200 software, starting, stopping and downloading from the OM-CP-PROCESS101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in A, mA or µA.
The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available USB port and the easy to use Windows software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in tabular format and can also be exported to a text or Microsoft Excel file for further calculations. As the leader in low power data logger technology, we continuously improve our products and develops solutions to meet ever-changing challenges. The OM-CP-PROCESS101A was designed with our customers in mind. There are free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Available models:
OM-CP-PROCESS101A-20MA - range +/- 20 mA
OM-CP-PROCESS101A-160MA - range +/- 160 mA
For technical specifications, see the spec sheet in the "Downloads" section.
Data Logger / Introduction to Data Logging Devices
Technically speaking, a data logger is any device that can be used to store data. This includes many data acquisition devices such as plug-in boards or serial communication systems which use a computer as a real time data recording system. Most instrument manufacturers, however, consider a datalogger a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.
The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Data loggers are available in various shapes and sizes...
