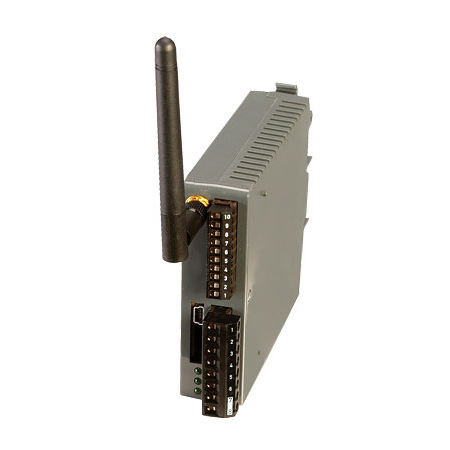

DIN Rail Mount Wireless Receivers with 4 Analog Outputs - Output: 4-20 mA
Works with Up to 48 Wireless Transmitters. Four 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA Analog Outputs. Interface Directly to PLCs, Chart Recorders and Data Loggers. Included Software Turns a PC Into a Multi-Channel Meter, Chart Recorder or Data Logger. More
Item# (PN): UWTC-REC4-MA Shipping and Payment
The UWTC-REC4 wireless DIN rail receiver can work with up to 48 wireless transmitters, displaying their data in real time on your PC. The UWTC-REC4 also has four independent analog outputs, which can be user-programmed as a retransmission signal from any input channel, driving a PLC or data logger. The UWTC-REC4 is compatible with the full range of UW wireless transmitters from Omega; choose from thermocouple, RTD, %RH, infrared (non-contact) temperature, pH, as well as process voltage and current models.
The standard DIN rail mount design provides for easy mounting, and fast connections to other DIN rail equipment, including PLCs.
SPECIFICATIONS:
Power: 12 to 24 Vdc @ 250 mA
Analog Output: 4 independent, non-isolated, retransmission 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Alarms (Programmable): One per channel, rising/falling activation
Alarm Type: Open drain, 100 mA max Power, Output, Alarm Connection: Screw terminals
Operating Ambient: 0 to 55°C, 90% RH non-condensing Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Enclosure: DIN rail (plastic)
Dimensions: 93 H x 39 W x 125 mm D
