Heat Flux Sensors for Heat Transfer Measurements
HFS-5 sensor for use in R&D heat transfer measurements and thermal systems evaluation. HFS-6 larger sensor for use in buildings thermal evaluation and higher sensitivity. UHFS-09 larger sensor, highest sensitivity and waterproof for use in geothermal studies. HFS-DAQ as the accessory of HFS/UHFS series, data acquisition system to accurately measure the signals outputted from HFS/UHFS heat flux sensors and their integrated thermocouples. For sensor application we suggest OMEGATHERM™ High Temperature and High Thermally Conductive Paste. More
Item# (PN): UHF-HFS-SERIES Shipping and Payment
OMEGA's Heat Flux Sensors provide accurate readings, high sensitivity with fast response times. The sensors are rugged and economical. They are ideal for R&D applications ranging from aerospace, industrial processes to building sciences applications. Do not forget to get your OMEGATHERM™ high temperature and high thermal conductive paste for mounting.
What is Heat Flux? Explained!
HFS-5 Heat Flux Sensor

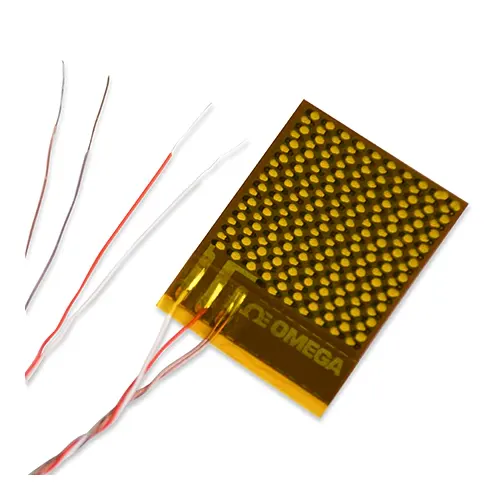

The HFS-5 is the first low-cost heat flux sensor on the market. It has minimal thickness while still maintaining excellent sensitivity. The heat flux sensor is flexible enough to be easily attached to round surfaces.
HFS-6 Heat Flux Sensor
The HFS-6 is the first low-cost large area heat flux sensor on the market. It is particularly useful for monitoring the performance of thermal insulation and directly in-situ measuring insulation thermal resistance R-values. The sensor has excellent sensitivity that is perfect for measurements of heat transfer through building thermal insulation. Metal encapsulation increases the robustness of the sensor itself for repeated applications of the sensor to measurement surfaces.
UHFS-09 Heat Flux Sensor
The UHFS-09 is the first low-cost ultra-sensitive plate heat flux sensor on the market. The high sensitivity design makes it ideal for accurately measuring relatively low-heat fluxes such as those seen in both building envelope and soil testing. A rigid, robust & water-proof construction makes the sensor durable and effective in various testing conditions.
HFS DAQ System

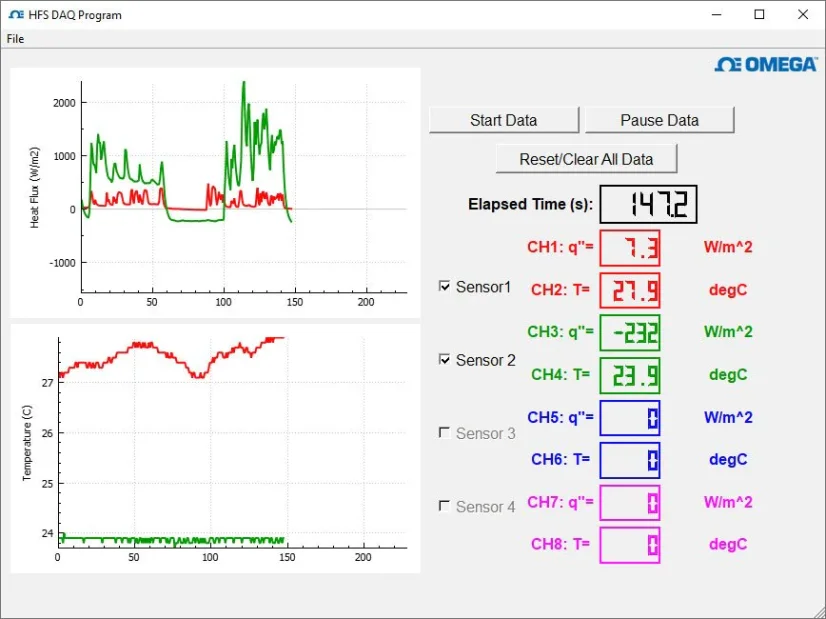

The HFS DAQ is a low-cost data acquisition system that is designed and packaged together to accurately measure the small analog DC voltage signals that are outputted from HFS heat flux sensors and their integrated thermocouples. The HFS DAQ enables precise measurement resolution at a fraction of the cost to other currently available systems.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
Thermocouple Sensor / What is a Thermocouple?
A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.
Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...
