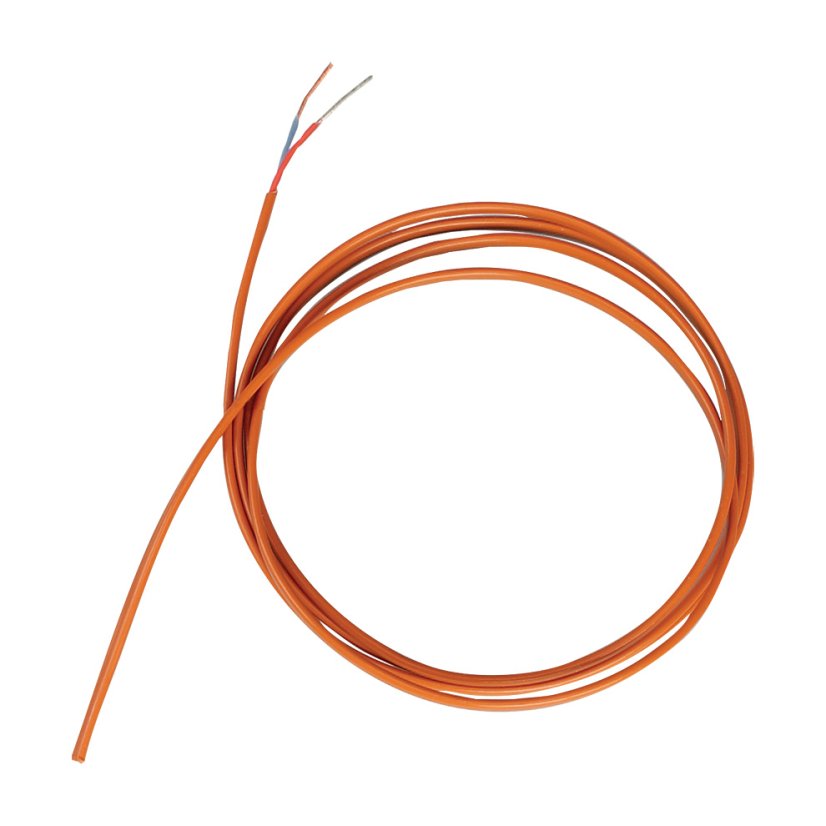

Hermetically Sealed Thermocouple
Hermetically Sealed Tip. Highly Resilient to Chemicals and Oils. Electrically-Insulated Junction. Easily Cleaned and Sterilized. Small Size Provides a Fast Response. Rated to 250°C. Response Time = 4.5 Seconds Max in Water Flowing at 3 Feet per Second (63%). 24 AWG Stranded Thermocouple Grade Wire Standard. 20 AWG Stranded Construction is Available for Longer Lengths. Available in 1, 2, 3, 5m Lengths. More
Item# (PN): HSTC Shipping and Payment

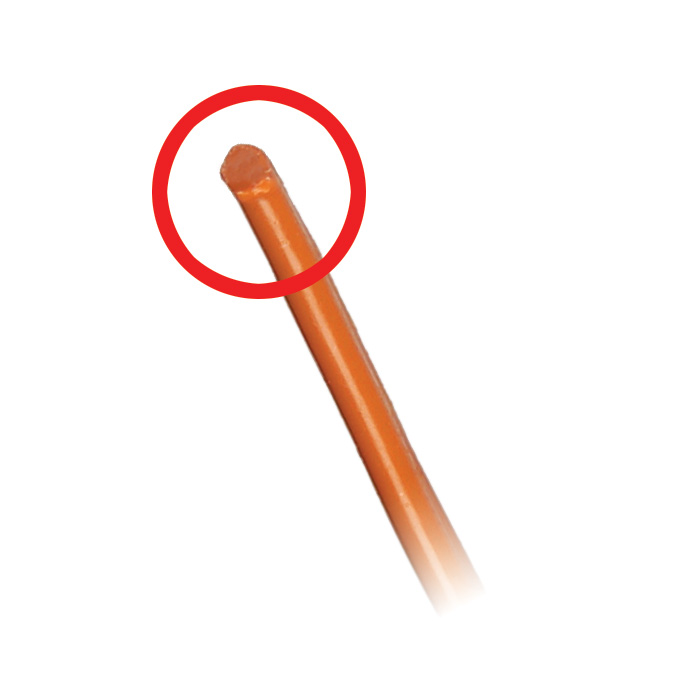

These PFA insulated thermocouple wire sensors are hermetically sealed at the sensor tip to provide continuous PFA protection over the measurement junction. This hermetic seal design provides a small, flexible, and electrically isolated thermocouple, suited to a variety of applications.
When using longer lengths, #20AWG stranded wire construction is available to reduce sensor resistance.
For a hermetically sealed RTD sensor, see the HSRTD.

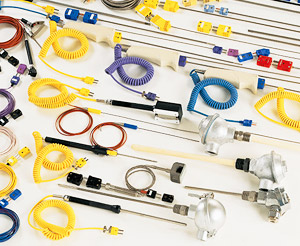

Thermocouple Sensor / What is a Thermocouple?
A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.
Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...
How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
Choose the right temperature measurement instrument for your application...

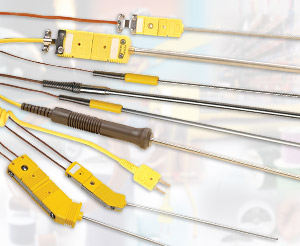

What is a Type K Thermocouple?

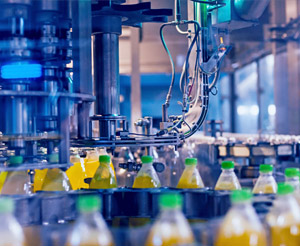

What Are Common Applications for Thermocouples?
Thermocouples are the most widely used temperature sensors on the planet due to their combination of wide temperature capabilities, ruggedness, and low cost. Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites and spacecraft.
When it comes to high temperatures, small size, fast response, high vibration or shock, most times you will find thermocouples providing the temperature measurements.
eBook / Automotive
OMEGA is an industrial sensor and measurement solutions provider with over 50 years of experience. With the ability to provide a complete range of instruments and engineering services it would be difficult to find a better partner for the automotive industry.
OMEGA has a track record of providing state-of-the-art sensors and measurement instrumentation for the automotive industry. With our vast experience and knowledge in industrial applications and development of high quality measuring instruments, sensors and complete solutions...
Common Techniques to Calibrate Thermocouples
Temperature measurement is possible through several means. We commonly use thermometers for measuring temperature. However, for precision measurements, where even a small spike in temperature requires to be recorded, we use advanced forms of measurement devices like thermocouples. Thermocouples are measurement devices that can read very slight temperature changes. Hence, they are widely used in applications where accuracy is of utmost importance.
However, like any measurement device, the efficiency of thermocouples will deteriorate overtime under constant use. At this point, the thermocouple needs recalibration...
