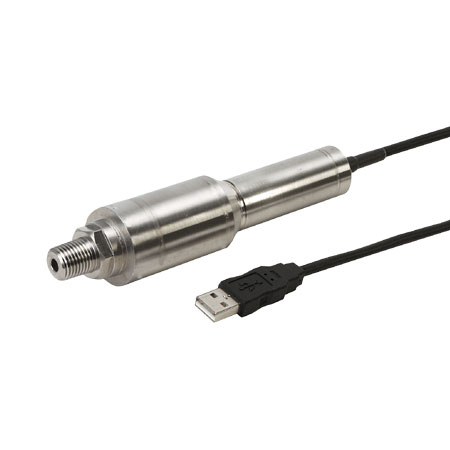

High Pressure transducer with USB output
High Speed! 1000 Readings/Second. Free Software Available for Download. All Stainless Steel Body. Heavy-Duty Construction for Harsh Environments. Available in Gauge, Sealed Gauge, and Absolute Pressure Models. More
Item# (PN): PX51_PXM51-USBH Shipping and Payment
The PX51 high speed USBH Series connects directly to your computer. Free PC software enables you to chart, log, display, and output data for analysis. Also included are .NET APIs, and a command set for command-line access. The high accuracy, rugged, low-cost transducer has an all stainless steel construction, making it suitable for the harshest environments. A 2 metre long USB cable is standard.
SPECIFICATIONS:
Accuracy: 0.25% full scale linearity and hysteresis combined
Resolution: Up to 5.5 significant figures
Bandwidth: DC to 1000 updates per second typical (±3%)
A to D Conversion: 24-bit
Output: Digital (USB)
Minimum Isolation: 1 GΩ @ 50 Vdc case to sensor 2MΩ @ 50 Vdc case to output terminations
Shock: 50 g, 11 mS half sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz, 30 minute cycle, Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis
Power Consumption: 0.35 W typical
CE Compliant: Meets industrial emissions and immunity EN61326
Environmental Protection: IP65
Weight: 400 g
Operational Temp Range: -40 to 85°C
Compensated Temp Range: 16 to 71°C
Thermal Effects:
Span: 0.003% of FSO/°F
Zero: 0.005% of FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: See dimensional drawings
≥10,000 psi: 9/16-18, ¼" HP tube
Excitation: Derived from USB Power
Electrical Connection: 2 metres USB type A cable
Option Descriptions:
(1)-(2)(3)-USBH
(1) Model select from:
PX51C for 1/4-NPT Male Pressure Connection
PXM51MC for G1/4B Male Pressure Connection
PX51S for 1/4in HP Tube Fitting
(2) Range - Not all ranges available for all models. Refer to spec sheet select from:
-750 for 0 to 750 psi and 0 to 51 bar
-1K for 0 to 1K psi and 0 to 68.9 bar
-1.5K for 0 to 1.5K psi and 0 to 103 bar
-2K for 0 to 2K psi and 0 to 138 bar
-2.5K for 0 to 2.5K psi and 0 to 172 bar
-3K for 0 to 3K psi and 0 to 206 bar
-3.5K for 0 to 3.5K psi and 0 to 241 bar
-5K for 0 to 5K psi and 0 to 345 bar
-7.5K for 0 to 7.5K psi and 0 to 517 bar
-060 for 870 psi and 60 bar
-100 for 1450 psi and 100 bar
-160 for 2320 psi and 160 bar
-250 for 3625 psi and 250 bar
-400 for 5801 psi and 400 bar
-10K for 0 to 10K psi and 0 to 689 bar
-15K for 0 to 15K psi and 0 to 1034 bar
-20K for 0 to 20K psi and 0 to 1379 bar
-30K for 0 to 30K psi and 0 to 2068 bar
(3) Transducer Type select from:
G for Gauge Pressure
A for Absolute Pressure
SG for Sealed Gauge
Pressure Transducers and Transmitters
A pressure transducer, often called a pressure transmitter, is a sensor that converts pressure into an analog electrical signal. Although there are various types of transducers, one of the most common is the strain-gage wheatstone bridge pressure transducer.
The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gages which are bonded into the diaphragm of the pressure transducer and wired into a wheatstone bridge configuration. Pressure applied to the transducer produces a deflection of the diaphragm which introduces strain to the gages. The strain will produce an electrical resistance change proportional to the pressure...
