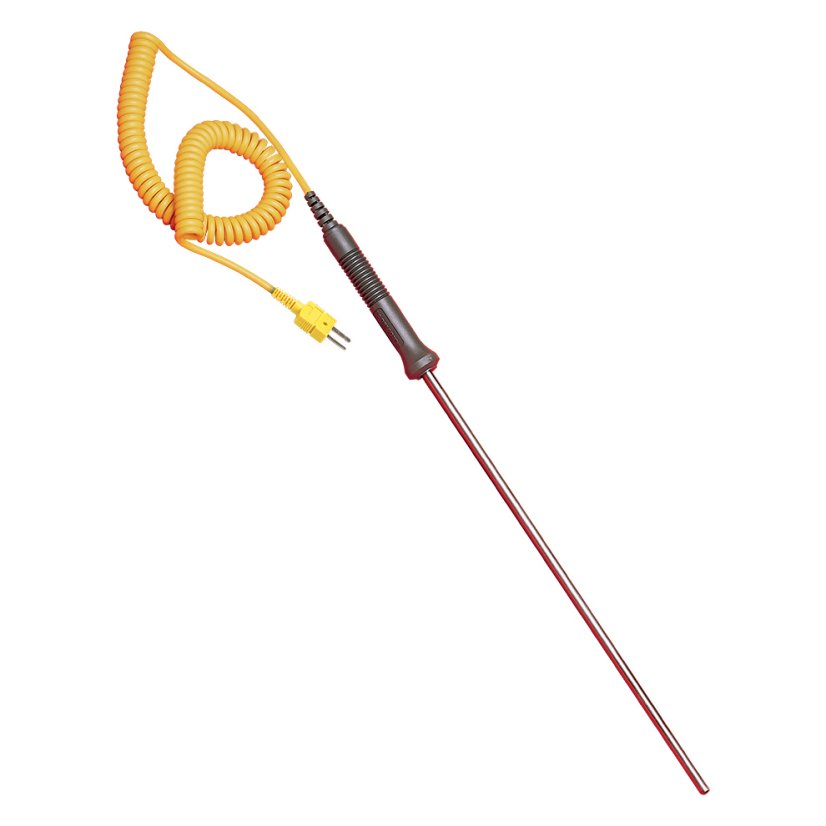

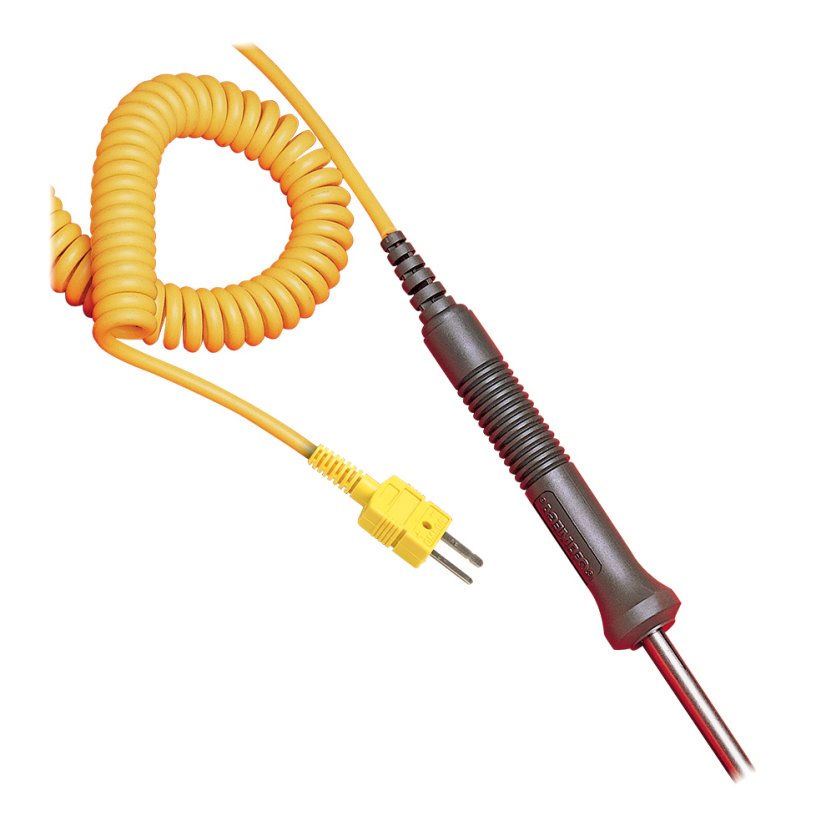

High Stability Hand-held SuperOMEGACLAD™XL Thermocouple Probe
Item# (PN): KHXL_NHXL Shipping and Payment

Super Accurate, Super Stable, Super Value, For Use Up to 1335°C. Excellent Long Term Stability at High Temperatures, Low Thermal Drift. Nickel-Chrome Based Super OMEGACLAD™ Sheathing Provides Excellent High Temperature Performance. Excellent Oxidation, Carburisation and Chlorination Resistance. Made from Class 1 Tolerance MI Cables. Probes Individually Pressure and Insulation Tested. More
Super OMEGACLAD™ XL Probes are an excellent choice for high temperature measurement. They provide very low drift at high temperatures as compared to conventional Inconel and Stainless Steel sheathed probes. They are available in both K and N thermocouple calibrations. Omega offers probes in a variety of styles.
See the Related Links section at the bottom of this page for addtional models.
We offer a wide range of types of measuring probes, various lengths, diameters and designs.
Contact us for a specific offer.
Option Descriptions:
(1)HXL-(2)(3)-(4)
(1) Thermocouple Calibration select from:
K for K thermocouple
N for N thermocouple
(2) Probe Diameter select from:
15 for 1.5 mm
30 for 3.0 mm
45 for 4.5 mm
60 for 6.0 mm
(3) Junction Style (see note above for help selecting junction style) select from:
G for grounded junction
U for insulated junction
E for exposed junction
(4) Probe Length select from:
150 for 150 mm length
300 for 300 mm length
450 for 450 mm length

Thermocouple Sensor / What is a Thermocouple?
A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.
Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...

How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
Choose the right temperature measurement instrument for your application...

What is a Type K Thermocouple?

What Are Common Applications for Thermocouples?
Thermocouples are the most widely used temperature sensors on the planet due to their combination of wide temperature capabilities, ruggedness, and low cost. Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites and spacecraft.
When it comes to high temperatures, small size, fast response, high vibration or shock, most times you will find thermocouples providing the temperature measurements.

eBook / Automotive
OMEGA is an industrial sensor and measurement solutions provider with over 50 years of experience. With the ability to provide a complete range of instruments and engineering services it would be difficult to find a better partner for the automotive industry.
OMEGA has a track record of providing state-of-the-art sensors and measurement instrumentation for the automotive industry. With our vast experience and knowledge in industrial applications and development of high quality measuring instruments, sensors and complete solutions...

Common Techniques to Calibrate Thermocouples
Temperature measurement is possible through several means. We commonly use thermometers for measuring temperature. However, for precision measurements, where even a small spike in temperature requires to be recorded, we use advanced forms of measurement devices like thermocouples. Thermocouples are measurement devices that can read very slight temperature changes. Hence, they are widely used in applications where accuracy is of utmost importance.
However, like any measurement device, the efficiency of thermocouples will deteriorate overtime under constant use. At this point, the thermocouple needs recalibration...

Understanding Thermocouple Accuracy Drift
One constant in industrial processing is that accuracy drift in a measurement device is something to be avoided. For critical applications, where temperature measurements directly influence performance, even a slight drift in the accuracy of a device like a thermocouple can lead to significant issues.
Yet, consumers continuously find that many of the thermocouples out there on the market end up needing to be recalibrated or replaced all together (sometimes after an annoyingly short period of time) due to, you guessed it, accuracy drift.
