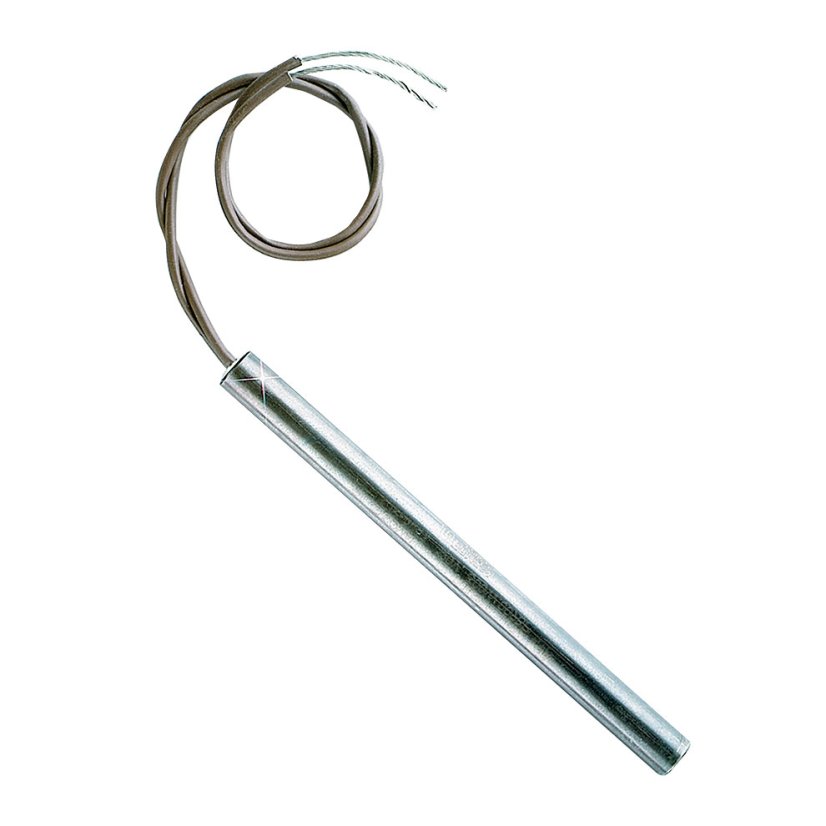

High Watt Density Cartridge Heaters with Incoloy® Sheath up to 870°C

OMEGALUX™ CIR series High Watt density cartridge heaters are manufactured to the highest industry standards using only premium materials. CIR Incoloy® 800 sheathed cartridge heaters can operate at working temperatures up to 760ºC with sheath temperatures up to 870°C. They have excellent corrosion resistance and are especially well suited for use in applications involving molds, dies, platens, hot plates, and sealing operations.

The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.

Note: ¼" Nominal Diameter CIR Series, Actual Diameter & Tolerance: 0.246 ±0.002" (6.248 mm). CIR Series cartridge heaters use high temperature mica Fiberglas^® insulated stranded lead wire (up to 450°C). Standard length 14"
