Hygienic Turbine Flowmeters For Process Liquid Measurement
Compliant with the ASME Bioprocessing Equipment Standard BPE-2019. 11 Process Connection Sizes Available, from 1½" to 4". Flow Rates from 1.3 to 2460 litres per minute. Suitable for Cleaning in Place (CIP). More
Item# (PN): FTB-400_serie Shipping and Payment

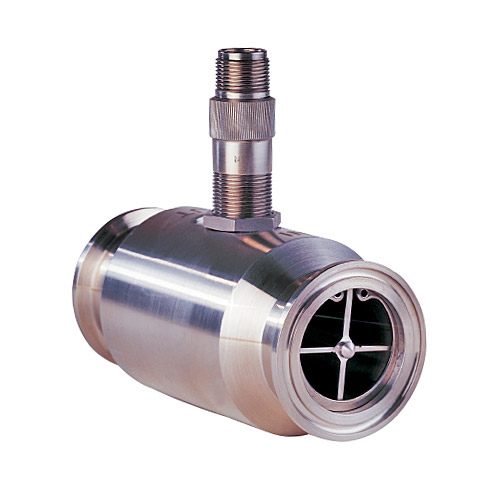

The Omega FTB-400A sanitary design turbine flow meters are designed and manufactured to be compliant with the ASME Bioprocessing Equipment Standard BPE-2019 for measurement of process liquids where high sanitary standards are required.
ASME-BPE-2019 is the leading Standard on how to design and build equipment used in the production of biopharmaceuticals. This series includes 11 process connection sizes, 1½" to 4" with standard Tri-Clamp™ fittings, covering flow rates for 1.3 to 2460 litres per minute.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
SPECIFICATIONS
Accuracy & Linearity: ±0.5% of reading or better
Repeatability: ±0.1% of reading or better
Temperature Range: -268 to 232°C (-450 to 450°F)
Signal Output: 10 mV rms or greater into a 10 kΩ load at minimum flowrate
Materials of Construction: 316 SS except as noted below:
Rotor: 17-4 PH SS
Retaining Rings: 15-7 MO PH SS
Bearings: Hard carbon composite
Parameters table:
Model No. | Tri-Grip™ Size |
Flowmeter Size |
Linear Flow Range (l/min) |
Length (mm) |
Weight (Kg) |
FTB-401A | 1½" | 1/4" | 1,3 to 13,2 | 90 | 1.4 |
FTB-402A | 1½" | 3/8" | 2,8 to 28,4 | 90 | 1.4 |
FTB-403A | 1½" | 1/2" | 4,7 to 36 | 90 | 1.4 |
FTB-404A | 1½" | 5/8" | 6,6 to 60 | 90 | 1.4 |
FTB-405A | 1½" | 3/4" | 9,5 to 110 | 83 | 1.4 |
FTB-406A | 1½" | 1" | 15 to 227 | 90 | 1.4 |
FTB-407A | 1½" | 1¼" | 23 to 350 | 117 | 2.3 |
FTB-408A | 1½" | 1½" | 30 to 490 | 117 | 2.7 |
FTB-409A | 2" | 2" | 57 to 850 | 154 | 3.2 |
FTB-410A | 3" | 2½" | 95 to 1514 | 254 | 3.6 |
FTB-411A | 4" | 3" | 152 to 2460 | 254 | 4.5 |
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
