Industrial Button Style Compression Load Cell 0-100 N to 0-200 kN
High Accuracy and Excellent Long Term Stability. Low Profile and Miniature Size. 5-Point Traceable Calibration Supplied. Stainless Steel Construction. More
Item# (PN): LCMGD Shipping and Payment

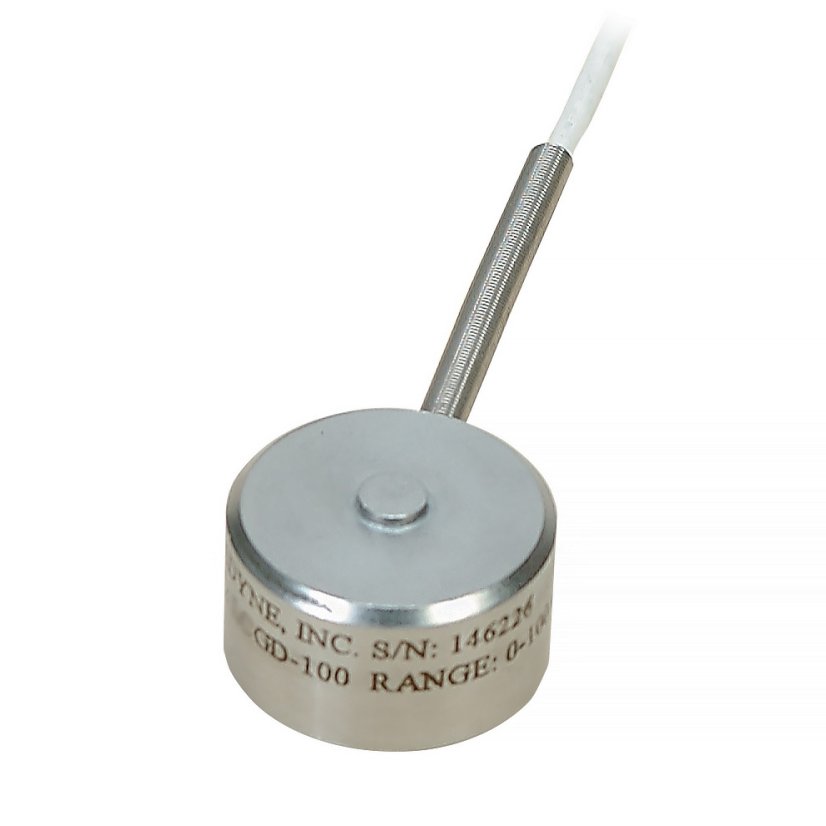

The LCMGD Series miniature low profile load cells are compression load cells with excellent long term stability. An all stainless steel construction assures reliability in severe industrial environments and a 5-point NIST traceable calibration is included with each load cell. These units are designed to operate by mounting on a flat surface, and they have a load button machined as an integral part of the basic load cell.
SPECIFICATIONS:
Excitation: 10 Vdc
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50% 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.20% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects:
Span: ±0.018% of Rdg/°C;
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms minimum
Construction: Stainless Steel
Electrical Connection: 1.5 metre screened Cable
Introduction to Load Cells
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of force sensors, strain gauge load cells are the most commonly used type.
Except for certain laboratories where precision mechanical balances are still used, strain gauge load cells dominate the weighing industry. Pneumatic load cells are sometimes used where intrinsic safety and hygiene are desired, and hydraulic load cells are considered in remote locations, as they do not require a power supply...
