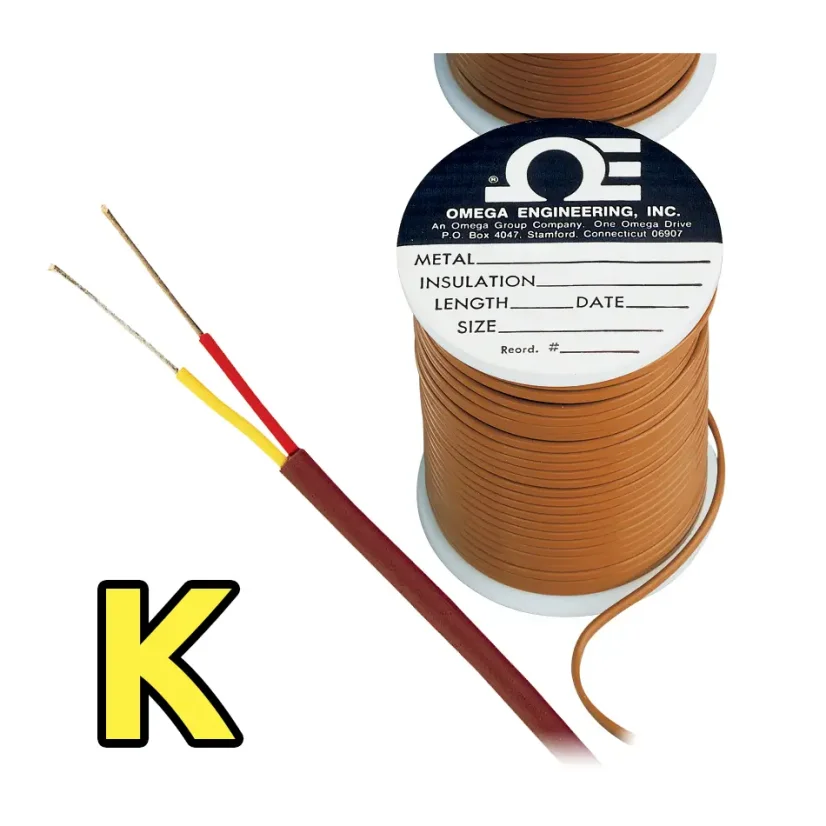

ANSI Color Code:
(+) Positive Wire - Yellow; (-) Negative Wire - Red; Overall - Brown
IEC Color Code:
(+) Positive Wire - Green; (-) Negative Wire - White; Overall - Green
Standard supply is ANSI version, if you want to order IEC version, please state this in the note.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
(1) Wire Insulation select from:
HH for High Temp Glass (0.8 & 0.5 mm Only)
GG for Glass
TG for PFA and Glass
TT for Neoflon PFA (High Performance)
FF for Neoflon (0.8 & 0.5 mm Only)
PP for PVC (0.5 mm Stranded Only)
PR for PVC figure of eight with no outer sheath (0.5 mm Only)
XC for Ceramic standard braid (1.6 0.8 and 0.5 mm Only)
XT for Ceramic tight braid (0.8 and 0.5 mm Only)
XL for Ceramic loose braid (0.8 and 0.5 mm Only)
XS for Silica (1.6 0.8 and 0.5 mm Only)
(2) Gauge select from:
20 for 20 AWG 0.8mm
20S for 20 AWG 7/0.32mm
24 for 24 AWG 0.5mm
24S for 24 AWG 7/0.2mm
30 for 30 AWG 0.25mm
36 for 36 AWG 0.13mm
40 for 40 AWG 0.08mm
(3) Tolerance select from:
for Class 2 leave blank
-SLE for Class 1/special limits of error
(4) Reel Length select from:
25 for 7.5 metres
50 for 15 metres
100 for 30 metres
200 for 60 metres
500 for 100 metres
1000 for 300 metres
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
Choose the right temperature measurement instrument for your application...
The thermocouple wire or cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end). On the other side, as it has been explain in this other article, a thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end.
Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end)...
