Load Cell and Strain Gauge Amplifier and Transmitter

Load cell or strain gauge amplifier/signal conditioner with selectable Full Scale Outputs of: 0-20 mA, 4-20 mA, 0-10 V, ±10 V. Input Range -7.6 to +7.6 mV/V max. User Selectable. 5 Vdc Bridge Excitation Built-In. Contact Closure Input for Remote Tare. 0 to 20 Second Input Filter. 2 to 6 Point Scaling for Non-linear Inputs. 10 or 80 Samples/Second. Easy Scaling and Set-Up Via USB and Free Software. More

Item# (PN): TXDIN1600S Shipping and Payment

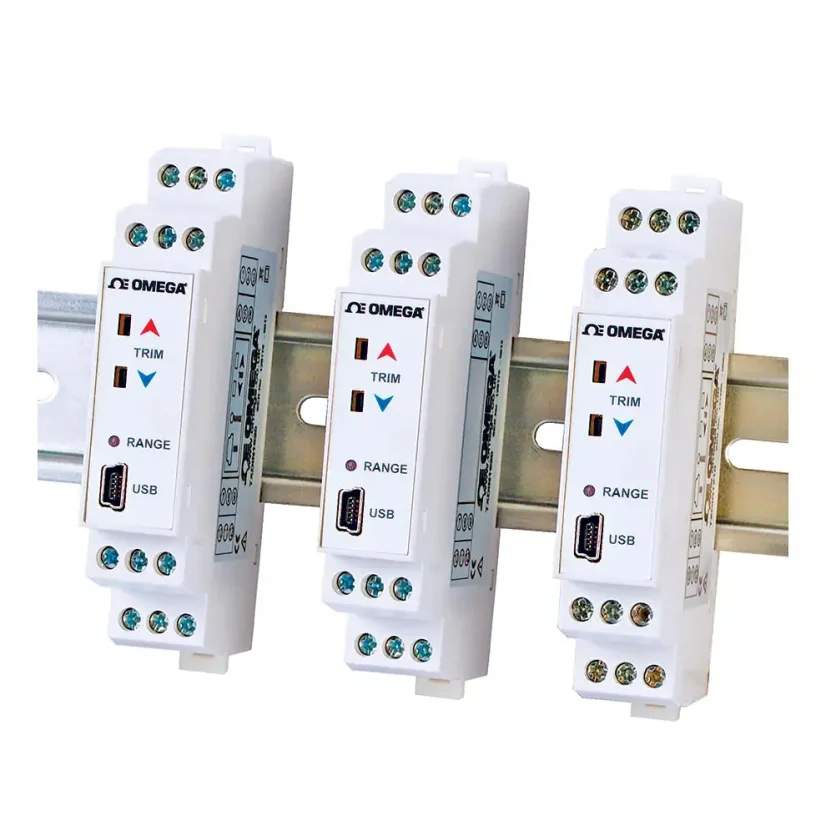

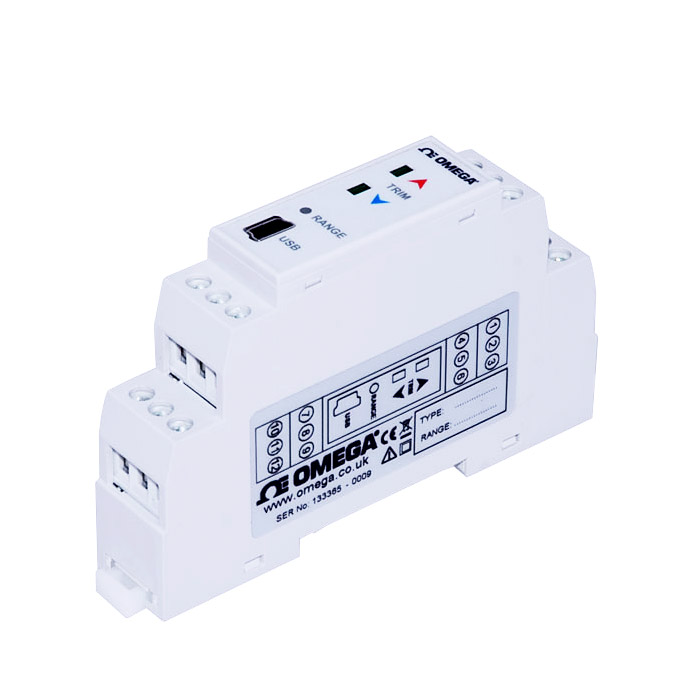

Omega's TXDIN1600S is a DIN rail mount amplifier for load cell or strain gauge inputs. Software available for free download allows the user to configure and scale the transmitter easily via a built-in mini USB port. Additionally, the user may read live process data through the software, allowing for offset and span calibration

Outputs can be either voltage, bipolar voltage or active/passive process current. The unit is powered by 10 to 48 Vdc or 10 to 32 Vac and is suitable for battery operation.

The high precision input stage of the device allows for a bridge excitation voltage of 5 Vdc to be used as opposed to the traditional 10 V. This reduces the power requirement for the bridge supply and up to four bridges (load cells) may be connected to the input.

Advanced features such as remote tare, multi-point scaling, filtering and built-in bridge excitation make this transmitter suitable for a wide variety of applications.

SPECIFICATIONS:

BRIDGE INPUT
Full Range: -7.6 to +7.6 mv\V; -38 to +38 mV @ 5V excitation
Type: Four Wire Ratiometric
Drift: < ± 0.05 %
Linearity: ± 0.01 %
Update Rate: Selectable, 10 or 80 SPS (Samples per second)

BRIDGE EXCITATION
Voltage: 5 Volts DC ± 0.1 V @ 59 mA
Bridge Impedance: Total 85 to 10000 Ω (operates with four 350 Ω load cells in parallel)

Tare Input Type: Remote volt free contact, up to 10 metres distance

OUTPUT CURRENT
Current Source: Range 0 to 21.5 mA , Max Load 750 Ω
Accuracy: (mA Out/ 2000) or 5 uA which ever is the greater, Drift 1 uA/°C

SUPPLY
Range: 10 to 48 VDC, 10 to 32 VAC Protected by internal 500 mA resettable fuse.
Power: < 1 W Full Power

GENERAL
Isolation: Supply to input to output 500 V dc.
Indication: LED, Green when output -0.1 to 100.1 %, else red
Interface: USB 2.0
Baud rate: 19,200 baud
Equipment: PC running windows XP, 7, 10 or later, USB cable.

APPROVALS
CE: BS EN 61326

Weight: < 70 grams
Dimensions: 90 mm H x 15.5 mm W x 56.4 mm D
Terminals: 2.5 mm Maximum

Complete specifications can be found in the spec sheet (PDF), see the "Download" section.

Download

TXDIN1600S_spec_sheet.pdf (pdf, 392.5 kB)

TXDIN1600S_en_manual.pdf (pdf, 957.4 kB)

What is a Signal Conditioner?

A signal conditioner is a device that converts one type of electronic signal into a another type of signal. Its primary use is to convert a signal that may be difficult to read by conventional instrumentation into a more easily read format. In performing this conversion a number of functions may take place.

Signal conditioning is a vital process performed within the Data Acquisition System. It involves the manipulation of the analog signal output from the sensors to prepare it for the next stage of processing. Signal conditioning amplifies and converts the signals from the sensors or...
