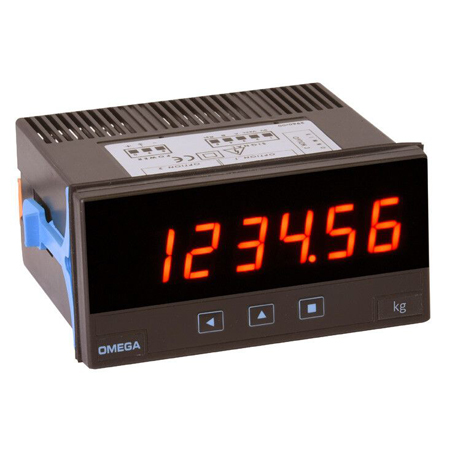

Load Cell or Strain Gauge Meter

Item# (PN): DPS20_serie Shipping and Payment

6-Digit display, size ⅛ DIN. Fast Access Menu - Front Panel Control. Configurable Tare Function. Optional Relay and Analog Output Models. Define a Maximum Tare Value to Prevent Undesired Tares. Independent Scaling. Optional Modbus RTRS-485 Model. 5 Levels of Brightness. Password Protection. More

The configuration options of the model are wider than offered by the online configurator above, see PDF specifications. Please contact us for other configurations or expansion cards.

OMEGA’s new panel meter DPS20 for load cells delivers high-performance at 1/8 DIN size for panel mounts and integration in a wide range of weight applications. The DPS20 accepts 4 and 6 wire load cells and provides 5 Vdc and 10 Vdc configurable excitation voltage to power the load cell. Two power supply options for high and low AC/DC power, allows this unit to be suited for global use.

The optional relays, analog output, and Modbus® RTU serial communications provide control and communication capability. Additional features of the DPS20 load cell meter include independent scaling of the load cell signal and reading units, prevention of false tares, stability alarms, and rear terminal with configurable function.

The DPS20 series offers exceptional performance at an economical price, with some unique and powerful features.

Download

DPS20_en_spec_sheet.pdf (pdf, 515.3 kB)

DPS20_en_manual.pdf (pdf, 1.3 MB)
