Mass Flow Controllers With Or Without Integral Display
±1% Accuracy. Linear Output. Low Cost. Thermal Technology. For Flow Rates up to 100 SLM. Power Supply Included. Comes standard with 5-point NIST cert. More
Item# (PN): FMA-A2000-series Shipping and Payment

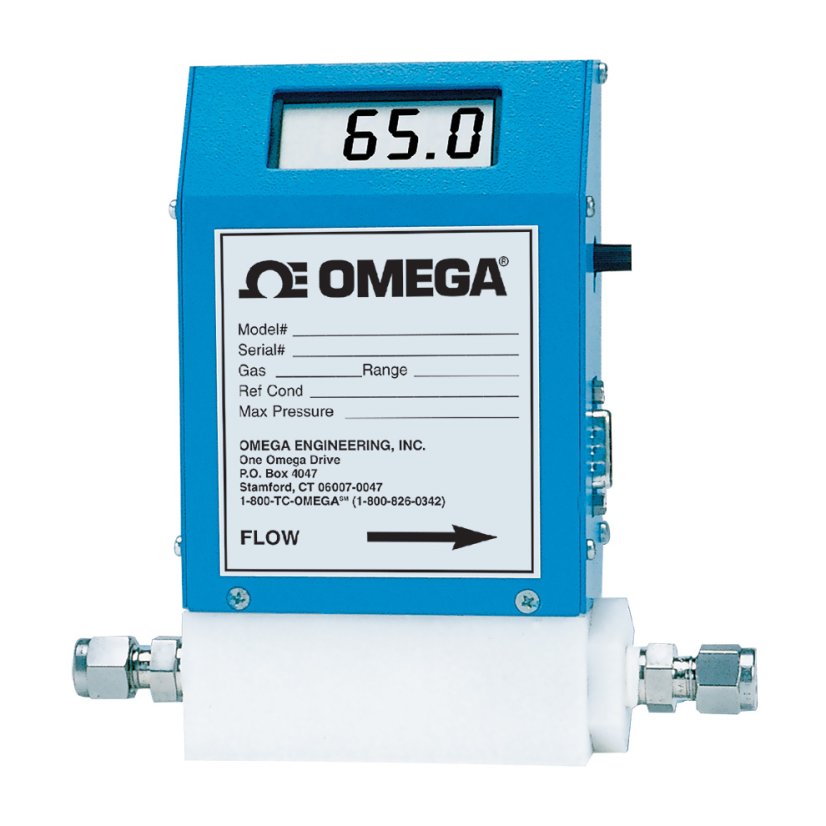

The FMA-A2100/2200/2300/2400 Series Electronic Mass Flowmeters/ Controllers provide high performance, versatility and state-of-the-art design in one compact package. The FMA-A2100/ 2200/2300/2400 uses capillary-type thermal technology to directly measure mass flow of gases. No temperature, pressure, or square root corrections are required. The FMA-A2300/2400 Series comes with an LCD display, and all models come with linear 0-5 and 4-20 mA output.
The FMA-A2100/2200/2300/2400 measures the mass flowrate of gases in 24 ranges from 0-10 SCCM to 1-100 SLM. For the complete listing, refer to the range table below. The FMA-A2100/2200/ 2300/2400 Series is compatible with most noncorrosive gases. The user is advised to check the wetted materials against gas compatibility.
OMEGA’s Mass Flow Controllers use an internal electromagnetic proportional valve to control the mass flowrate. A command signal can be supplied either by the internal setpoint pot or by a 0-5 Vdc external source.
SPECIFICATIONS:
Accuracy: ±1% of full scale including linearity
Repeatability: ±0.15% full scale or better
Turndown Ratio: 100:1
Response Time: 5 seconds
Gas Ambient Temperature: 0 to 50°C (32 to 122°F)
Temperature Coefficient: 0.05% full scale per 1°C or better
Pressure Coefficient: 0.01% full scale per psi or better
Minimum Pressure Requirements:
Meters: 1 inch of H2O
Controllers ≤1 SLM: 1 psi
Controllers >20 SLM: 20 psi
Differential Pressure for Mass Flow Controllers:
<5 LPM: 5 to 50 psi standard
>5 LPM: 20 to 40 psi standard
Maximum Gas Pressure:
Polyacetal: 250 psig
316 SS: 500 psig
Leak Integrity: 1 x10-6 cc/min of He or better
Wetted Parts:
Standard: Polyacetal, FKM O-rings
Optional: 316 SS, FKM O-rings
Connections: 1/4 FNPT standard; 1/4' compression fitting for all stainless steel models
Input/Output Connection: 9-pin sub-D connector
Control Signal: 0 to 5 Vdc
Control Valve: Electromagnetic normally closed
Output signal: Linear 0 to 5 Vdc, 1000 Ω min load, 4 to 20 mA, 500 Ω loop resistance
Input Power:
Meters: 24 Vdc @ 150 mA, 115 Vac, 220 Vac with AC adaptor
Controller: 24 Vdc @ 300 mA, 115 Vac, 220 Vac with AC adaptor
Dimensions: See drawing
Weight: 1.25 kg (2.75 lb) with power supply
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Range table:
Code | SCCM | Code | SLM | Code | SLM |
00 | 0-10 | 06 | 0-1 | 14 | 0-35 |
01 | 0-20 | 07 | 0-2 | 15 | 0-40 |
02 | 0-50 | 08 | 0-5 | 16 | 0-45 |
03 | 0-100 | 09 | 0-10 | 17 | 0-50 |
04 | 0-200 | 10 | 0-15 | 18 | 0-55* |
05 | 0-500 | 11 | 0-20 | 19 | 0-60* |
12 | 0-25 | 20 | 0-65* | ||
13 | 0-30 | 21 | 0-70* | ||
22 | 0-75* | ||||
23 | 0-100* |
* Only for FMA-A2100/2300 Series
* Insert range code from table at top of page to complete model number.
** Specify gas and inlet/outlet Pressure
FMA-A2200-SS-(**) and FMA-A2400-SS-(**) controllers have a stainless steel body (with 1/4' compression fittings)standard.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
What is a mass flow meter and how does it work?
A thermal mass flow meter measures the flow rate of gas mass based on the convective heat transfer of a heated surface to the flowing fluid. The components of a basic thermal mass flow meter include two temperature sensors with an electric heater between them. The heater can protrude into the fluid stream or can be external to the pipe.
