Mass Flow Meter for All Clean Gases

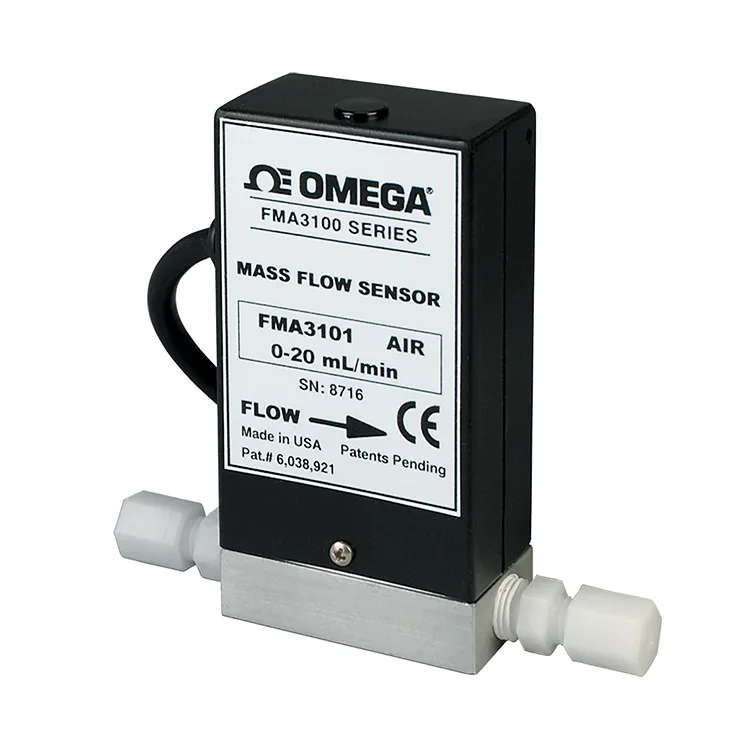

FMA3100 series mass flow sensors represent a breakthrough in mass flow sensor technology. State-of-the-art electronics, a compact mechanical design, and mass production tooling concepts are combined into one high-performance, cost effective product. The gas flow sensor is suitable for many OEM applications. A 0 to 5 Vdc linear output is standard.

FMA3300 series combine the features of the FMA3100 with an adjustable 3½ digit LCD digital display meter for viewing flow rate in engineering units (i.e., mL/min or L/min). These compact flowmeters have proved effective in many laboratory applications.

SPECIFICATIONS:

Output: 0 to 5 Vdc (2500 Ω minimum)
Accuracy: ±1.5% FS
Repeatability: ±0.5% FS
Response Time: 2 seconds (typical) to within ±2% of actual flow rate from 25 to 100% of full scale
Operating Ambient: 10 to 50°C, non-condensing atmosphere
Operating Pressure Range: To 150 or 500 PSI (depending on the model) maximum at 25°C
Temperature Coefficient: ±0.2% per °C
Pressure Coefficient: ±0.02% per psi
Input Power: 12 to 15 Vdc, 100mA (1.5W)
Connections: 1/8', 1/4' and 3/8'
Wetted Materials: Anodized aluminum, FKM O-rings, 304 and 316 SS, epoxy, acetal compression tube fittings standard
Gases: Most clean, dry gases (e.g., air, nitrogen, carbon dioxide, argon, hydrogen, helium, methane, oxygen)
Filtration: Requires 20-micron filter if gas contains any particulate matter

Complete informations can be found in the spec sheet (PDF), see the "Download" section.
