Miniature Button Style Load Cell 0-10 N to 0-5 kN
Item# (PN): LCMKD Shipping and Payment
Miniature Size - from 9.6 mm dia and only 3 mm high. 5-Point Calibration Certificate Included. Rugged all stainless steel construction and high performance. More

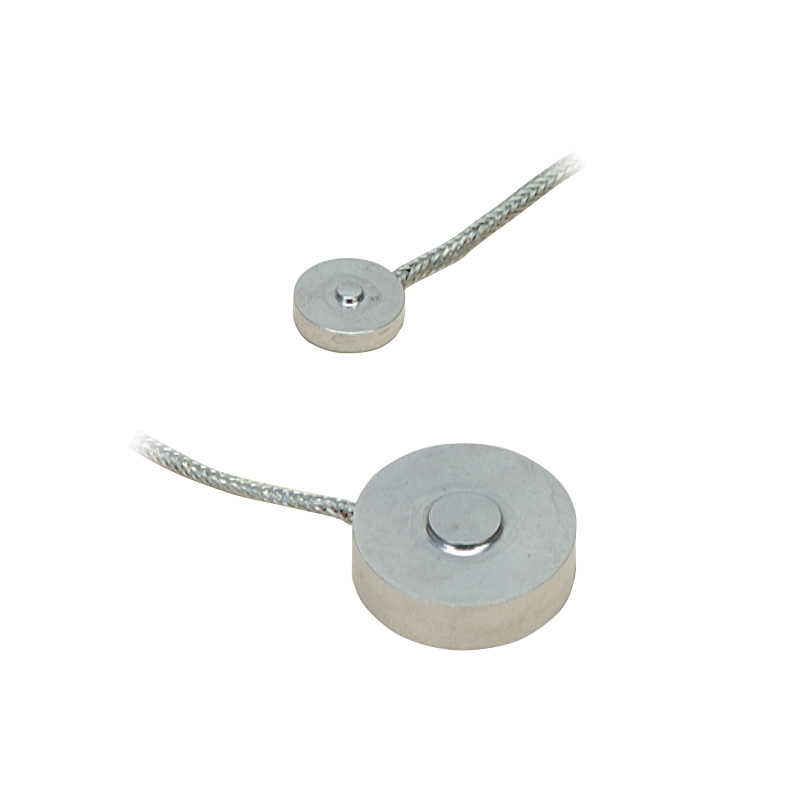

Small in size but not in performance, OMEGA’s LCMKD Series compression load cells are designed to measure load ranges from 10 to 5,000 Newtons. Rugged all stainless steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board which is included in the cable. These units are designed to be mounted on a smooth, flat surface.
SPECIFICATIONS:
Excitation: 5 Vdc, 7 Vdc max
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.25% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects:
Span: ±0.018% of FSO/°C
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms min
Full Scale Deflection: 0.025 to 0.075 mm
Electrical Connection: 1.5 metre, 4-core insulated cable with temperature compensation board.
Weight: < 14 grams
Introduction to Load Cells
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of force sensors, strain gauge load cells are the most commonly used type.
