SMPW Series Rated to 180°C. HMPW Series Rated to 260°C. Colour-Coded for IEC or ANSI. Captive Cover Screws. Accepts Stranded or Solid Wire up to 0.8mm dia. (0.52mm² csa). Quick Connect Contact Washers & Internal Wire Divider. More
Item# (PN): SMPW_HMPW

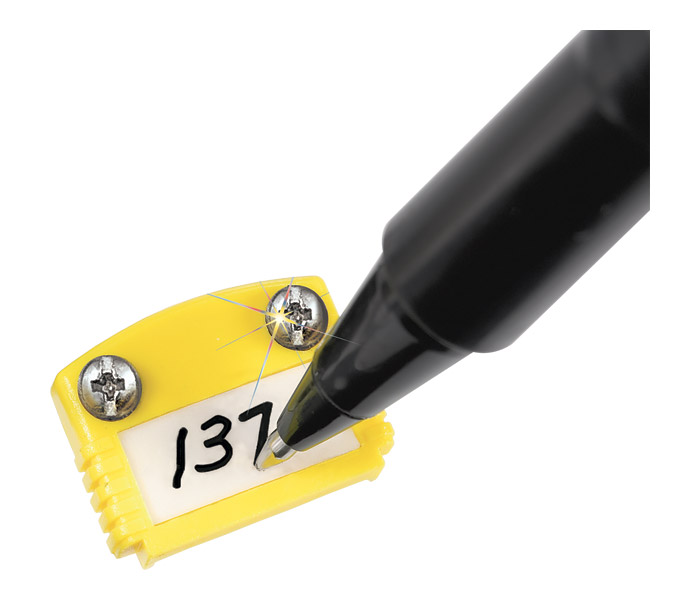

OMEGA's SMPW series miniature connectors for thermocouples, Pt100 and thermistors are ideal for even the most demanding temperature measurement applications. These SMPW series connectors offer a host of features including, heavy duty contruction, IEC or ANSI colour coding, removable reversible write-on window and chisel point male contacts for ease of connection.
SMPW connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.
SMPW connectors are made from glass-filled Nylon and have a maximum temperature rating of 180°C
HMPW connedctors are made from Liquid Crystal Polymer and have a maximum temperature rating of 260°C

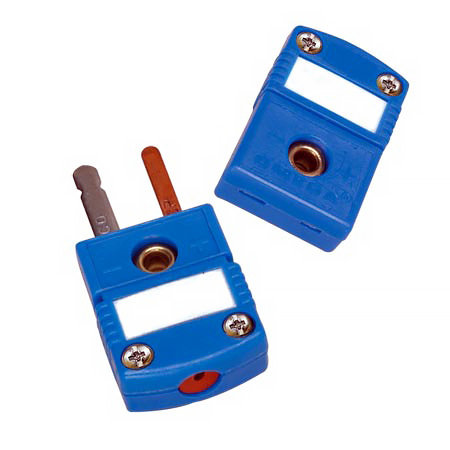

(SMPW-K-M, SMPW-J-M, SMPW-T-M, SMPW-E-M, SMPW-R/S-M, SMPW-N-M, SMPW-C-M, ...)
(SMPW-K-F, SMPW-J-F, SMPW-T-F, SMPW-E-F, SMPW-R/S-F, SMPW-N-F, SMPW-C-F, ...)
Check out our latest design - SMPW-CC Series with integral cable clamp. in related products.
Standard supply is ANSI version, if you want to order IEC version, please state this in the note.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
Installation Note for HMPW-x-F:
When using the rivet hole as a hold down point the maximum screw size is 3-48-NC or M2.5 x .45
Maximum Torque Value is 2 pounds-force inch or .230 kilogram-force meter.
