SMT Circuit Board Mountable Thermocouple, RTD or Thermistor Connectors

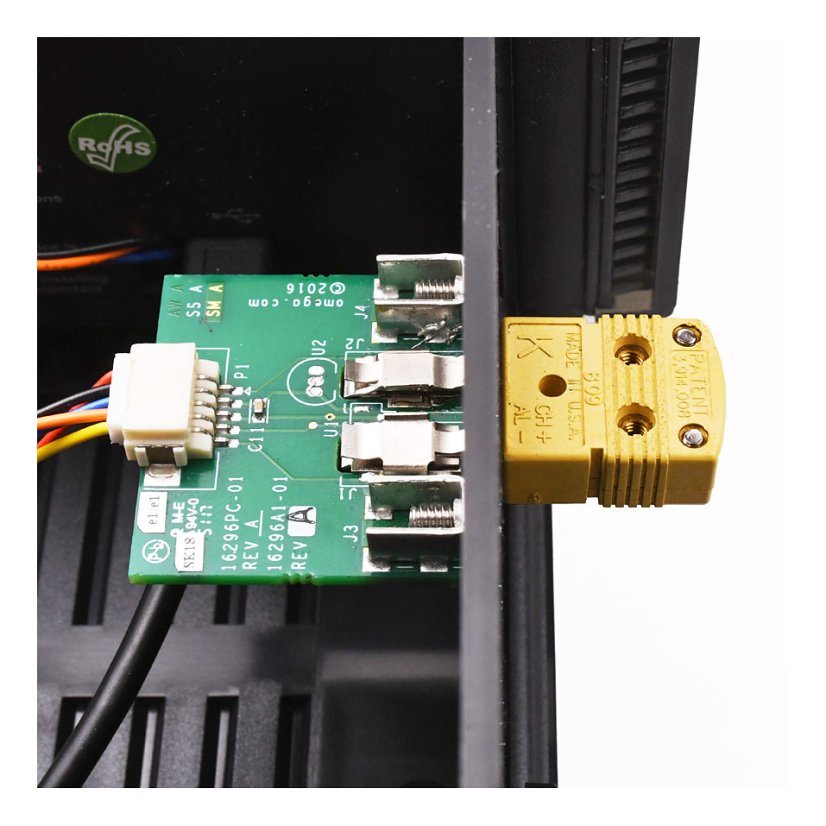

Surface mount device can be soldered directly to PCB. Produced on a reel for use with pick-and-place machines. Used in pairs for miniature 2-pin thermocouple connectors. 1 contact per pin connection great for RTD's and Thermistors. Perfect for handheld thermometers and dataloggers. Universal calibration provides great accuracy when paired with integrated cold junction compensation. Made of nickel-plated beryllium copper, boasting a high operating temperature range (even higher range on high temp PCB). Patent-pending design features reverse polarity protection for error-proof assembly. More
Item# (PN): PCC-SMD Shipping and Payment

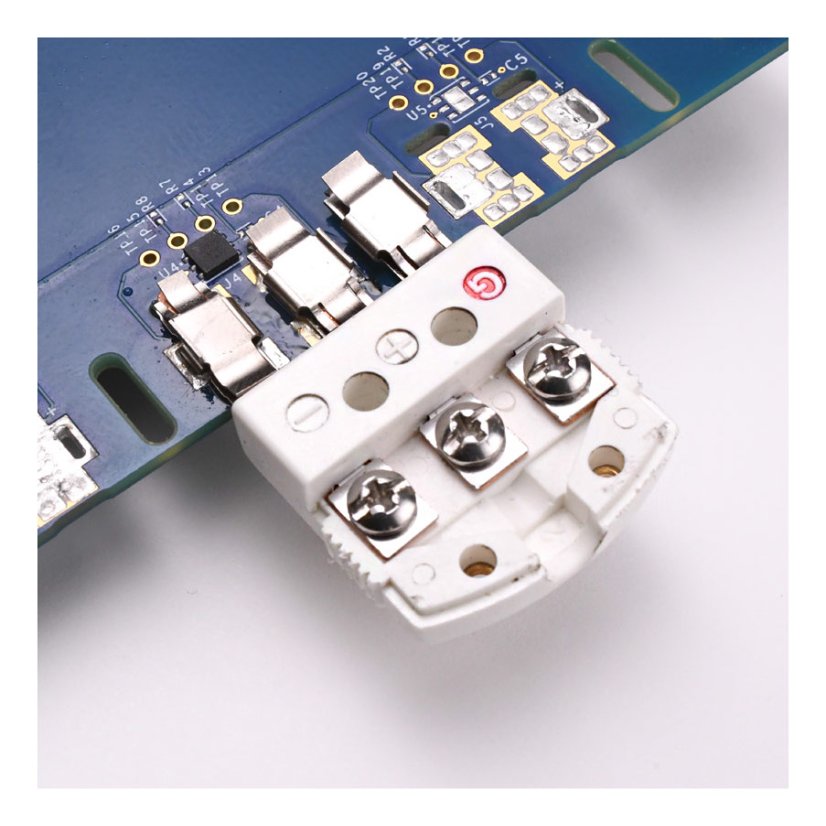

The PCC-SMD connector from OMEGA is perfect for bringing Thermocouple, RTD, and/or Thermistor probes to high volume production printed circuit boards. Take advantage of the built-in cold junction compensation features of your chosen Analog to Digital Converter (ADC). The flat bottoms of these connectors have a superior design that thermally couples them to the circuit board for ideal cold-junction compensation.
These SMT populated connectors can be used with any Thermocouple Calibration and are designed for low-cost, high-volume production.
They also feature a patent-pending asymmetric design that prevents connectors from being plugged in backwards. Connectors come conveniently packaged in 13” diameter tape-and-reel.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
