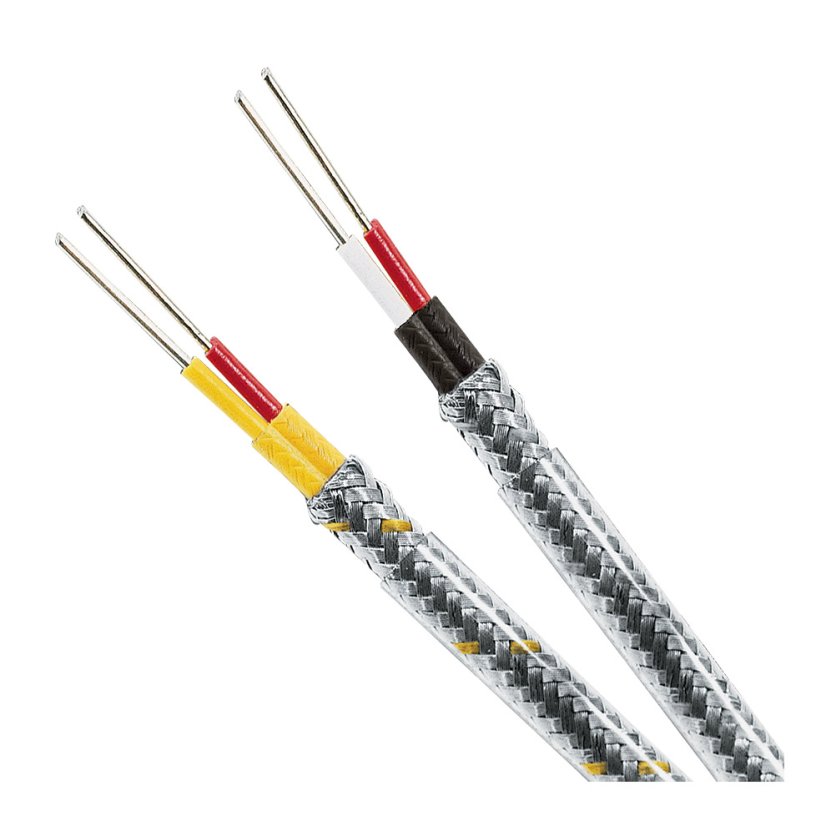

Stainless Steel Overbraid Thermocouple Duplex Extension Wire

Durable, Flexible and Long Lasting SS304 Overbraid. Stainless Steel Overbraid Electrically Shields and Mechanically Protects the Wire. PFA Coating Protects from Moisture and Provides Chemical Resitance. More

Item# (PN): EXTT-SB Shipping and Payment

OMEGA™ extension cables are designed for use in connecting a thermocouple probe to a readout or indicator. Made from extension grade thermocouple wire, J, K and E wire types are rated from 0-105°C (32 to 221°F) for the insulation. The range type T extension wire is rated from -60° to 100°C (-76 to 212°F).

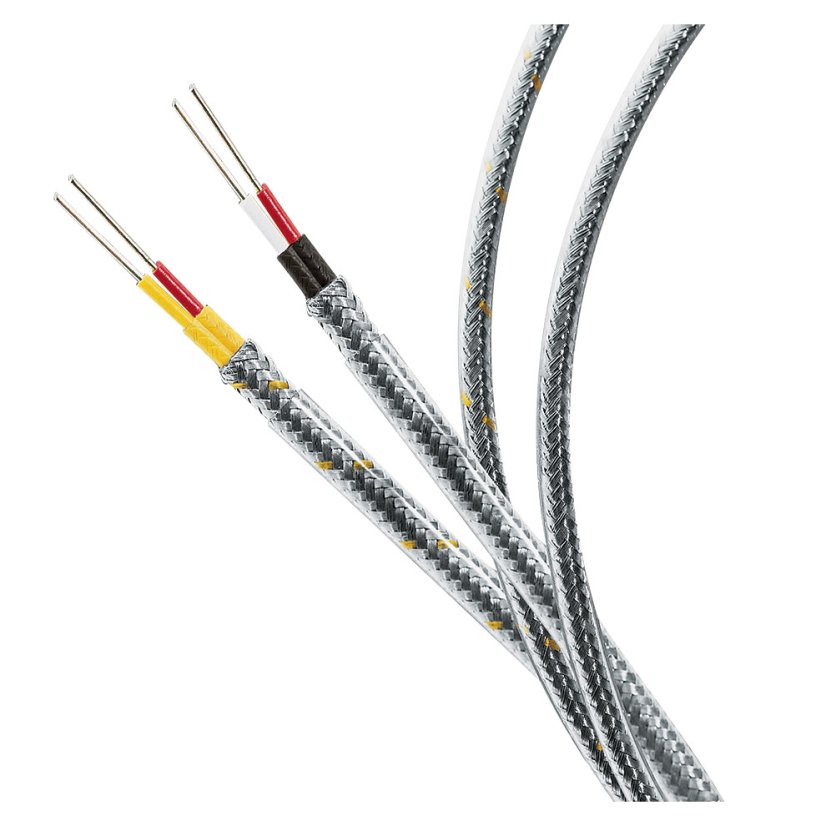

Used for a wide variety of applications, these cables are constructed with color-coded PFA applied to each wire leg. Another color-coded sheath of the same material is then extruded over the two primary legs. A metal overbraid is then applied over the insulated wire - stainless steel 304 over PFA wire. This overbraid adds durability, flexibility and long-term abrasion protection to the wire, in addition to providing electrical shielding for use in noisy environments. Finally, a third PFA layer is extruded over the entire assembly to protect the metal overbraid.

Standard supply is ANSI version, if you want to order IEC version, please state this in the note.

The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.

SPECIFICATIONS:

Cable type: Thermocouple Extension Wire
Conductor type: Solid
Conductor insulation: PFA (teflon)
Overall insulation: PFA (teflon)
Overbraiding type: Stainless Steel 304 Overbraid

Complete informations can be found in the spec sheet (PDF), see the "Download" section.

Parameters

Thermocouple type	K, J, T, E

Download

EXTT_SB_spec_sheet.pdf (pdf, 144 kB)

Barevne_znaceni_ANSI_IEC.pdf (pdf, 82.2 kB)

How is Temperature Measured?

Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.

Choose the right temperature measurement instrument for your application...

Thermocouple Wire / How it Works?

The thermocouple wire or cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end). On the other side, as it has been explain in this other article, a thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end.

Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end)...
