Stainless Steel S Beam Load Cells ±10 kgF to ±10 000 kgF

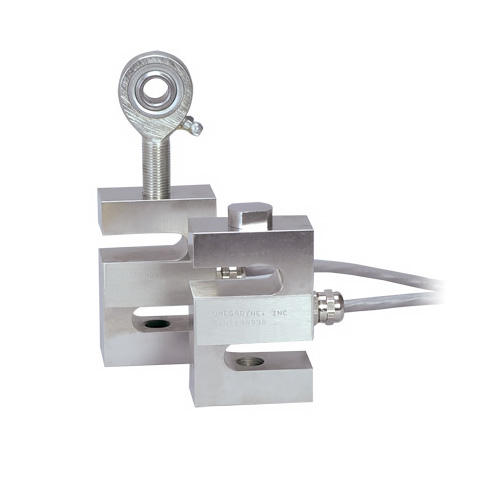

S beam load cell with Stainless Steel construction for Harsh Industrial Applications. 0.25% Interchangeable for Multiple Load Cell Applications. Calibrated in Tension. 5-Point Calibration certificate included. More

Item# (PN): LCM101 Shipping and Payment

SPECIFICATIONS:

Excitation: 10 Vdc, 15 Vdc max
Output: 3 mV/V ±.0075 mV/V
Linearity: ±0.03% FSO
Hysteresis: ±0.02% FSO
Repeatability: ±0.01% FSO
Zero Balance: ±1% FSO
Operating Temp Range: -40 to +93°C
Compensated Temp Range: 17 to 71°C
Thermal Effects: Zero: 0.002% FSO/°C Span: 0.002% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 350 ±10 Ohms
Output Resistance: 350.±10 Ohms
Full Scale Deflection: 0.25 to 0.50 mm
Construction: 17-4 PH Stainless Steel
Electrical: LCM101: <=100 kg is 9 m 7 x 0.2mm; >=250 kg is 9 m 7 x 0.32 mm; >=1500 kg is 4.6 m 7 x 0.32 mm; shielded cable.

Download

LCM101_spec_sheet.pdf (pdf, 278.9 kB)

Introduction to Load Cells

A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of force sensors, strain gauge load cells are the most commonly used type.

Except for certain laboratories where precision mechanical balances are still used, strain gauge load cells dominate the weighing industry. Pneumatic load cells are sometimes used where intrinsic safety and hygiene are desired, and hydraulic load cells are considered in remote locations, as they do not require a power supply...
