RMJ RSJ / Standard and Miniature Size Round Panel Jacks

More photos (3)

Add to favourites Add to compare list

RMJ and RSJ Series Accepts All Industry Standard Size and Miniature Size Male Connectors. Mounts in 16.0 mm (.63 in) Round or “D” Punch Holes. Round Bezel Shape. Bezel Sizes: 20.6 mm (.82 in) Round. Heavy Duty Glass-Filled Nylon Rated to 180°C (356°F). Polarity Keyed and Color-Coded. Dust Covers Sold Separately. No Filing Required when Mounting. Rear Mounting Nut Included Free. Accepts Solid or Stranded Wire up to 14 AWG. More

Item# (PN): RMJ_RSJ Shipping and Payment

Easy installation. No special tooling is required for installation OMEGA RMJ and RSJ connectors. Just drill or punch a round hole in your panel and tighten the supplied nut. Ideal for single-circuit applications where the connector must blend with existing instrumentation. Thermocouple circuits can be added to existing panels with only minimal interruption of operations.

RMJ and RSJ connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.

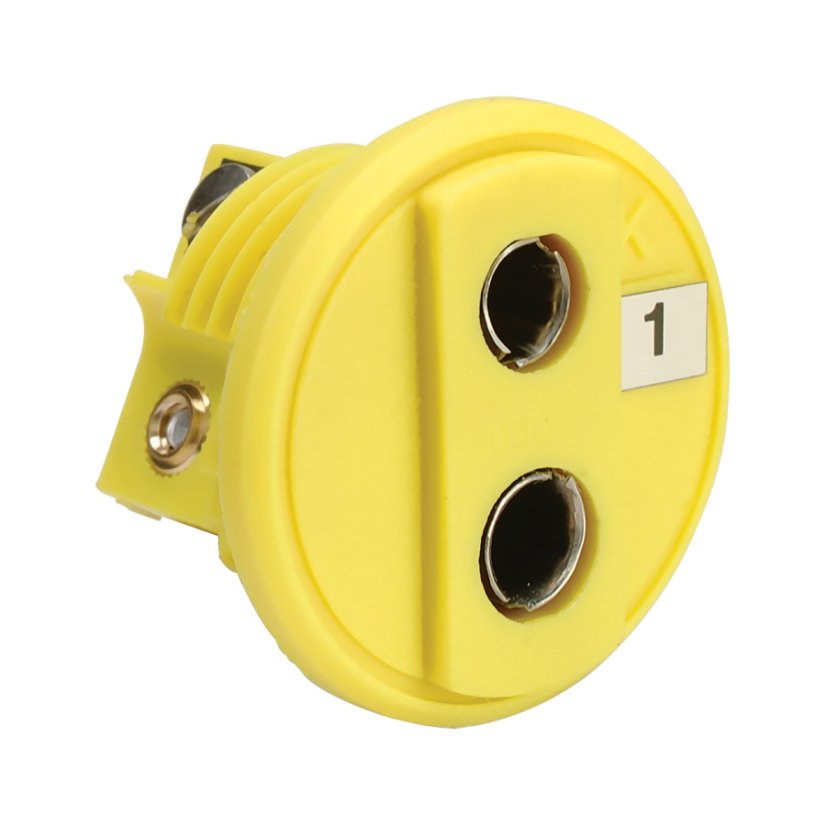

RSJ-K-F

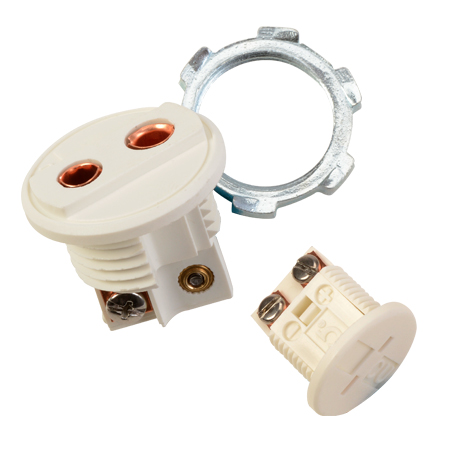

Thermocouple grade alloys used to form the contacts preserve the accuracy of the circuit even in changing ambient temperatures. An optional Front Mount Kit is also available to mount the connectors to a panel from the front. It includes screws, bushings and a Dust Plug.

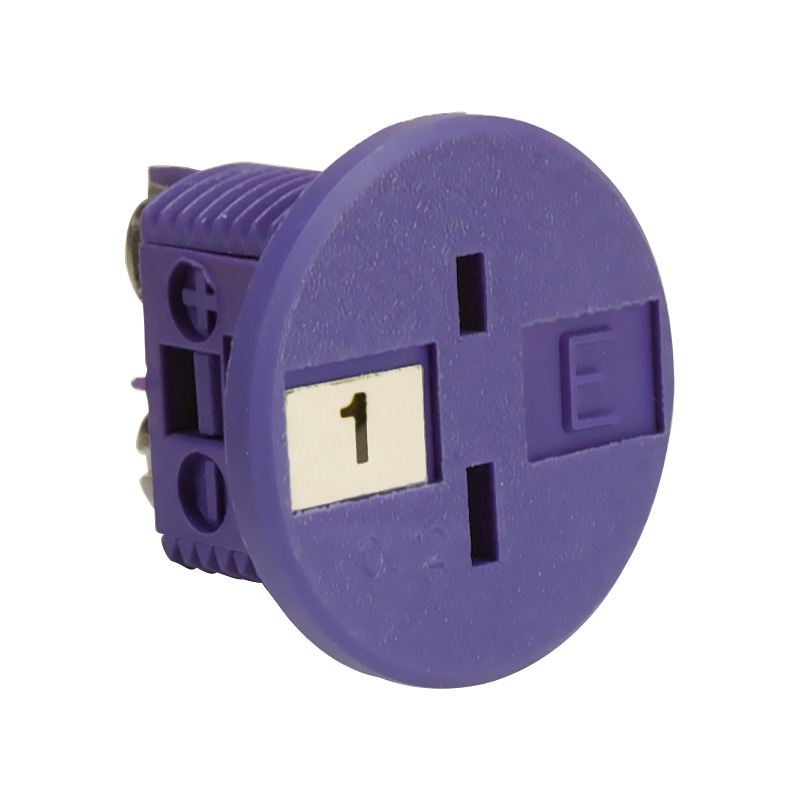

(RMJ-K-F, RMJ-J-F, RMJ-T-F, RMJ-E-F, RMJ-R/S-F, RMJ-N-F, RMJ-U-F, RSJ-K-F, RSJ-J-F, RSJ-T-F, RSJ-E-F, RSJ-R/S-F, RSJ-N-F, RSJ-U-F)

Standard supply is ANSI version, if you want to order IEC version, please state this in the note.

Complete informations can be found in the spec sheet (PDF), see the "Download" section.

Download

RMJ_RSJ_en_spec_sheet.pdf (pdf, 306.4 kB)

ANSI and IEC color coding (EN) (pdf, 82.2 kB)
