OSTW / Standard Connector for Thermocouple, Pt100, Thermistor
Item# (PN): OSTW_HSTW Shipping and Payment

Thermocouple Standard Connectors OSTW Series Rated to 180°C. HSTW Series Rated to 260°C. Thermocouple connectors with IEC or ANSI Colour Code. Captive Cover Screws. Hollow-Pin Construction. Accepts Stranded or Solid Wire up to 1.6 mm dia. Glass-Filled Nylon and Liquid Crystal Polymer Connectors are Mutually Compatible -- as Well as with All Industry Standard Size Connectors. Available with Quick Wiring Caps -- Simply Insert Wires in Caps and Tighten Screws. More
OMEGA OSTW and HSTW are standard size round pin 2 pole connectors for thermocouples, Pt100 and thermistors. They connect or extend thermocouple wire and cable to thermocouple sensors, temperature instrumentation and process controllers.This popular series of thermocouple connector is available in all thermocouple types and are colour colour coded to either IEC or ANSI standards. The contact washers allow the installer to use a straight wire strip. This greatly cuts installation/termination time and eliminates the torque that is normally associated with wire that is looped around a termination screw. OSTW-( )-F socket is universal, it will accept standard size round pin or mini size flat pin male thermocouple connector plugs.
OSTW and HSTW connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.
OSTW connectors are made from glass-filled Nylon and have a maximum temperature rating of 180°C
HSTW connedctors are made from Liquid Crystal Polymer and have a maximum temperature rating of 260°C

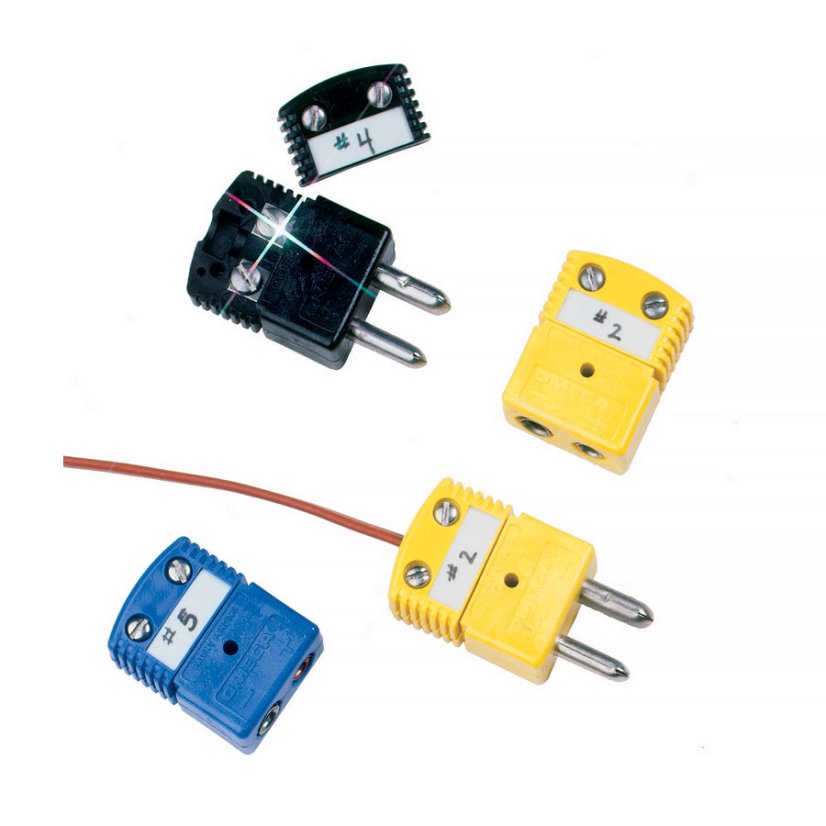

(OSTW-K-M, OSTW-J-M, OSTW-T-M, OSTW-E-M, OSTW-R/S-M, OSTW-N-M, OSTW-C-M, ...)
(OSTW-K-F, OSTW-J-F, OSTW-T-F, OSTW-E-F, OSTW-R/S-F, OSTW-N-F, OSTW-C-F, ...)
(HSTW-K-M, HSTW-J-M, HSTW-T-M, HSTW-E-M, HSTW-R/S-M, HSTW-N-M, HSTW-C-M, ...)
(HSTW-K-F, HSTW-J-F, HSTW-T-F, HSTW-E-F, HSTW-R/S-F, HSTW-N-F, HSTW-C-F, ...)
Check out our latest design - OSTW-CC Series with integral cable clamp. in related products.
Standard supply is ANSI version, if you want to order IEC version, please state this in the note.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.

How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
