Up to 4 Hz Reading Rate. Open Channel Detection. Configurable Channel Names. Accepts Thermocouple Types J, K, T, E, R, S, B, N. External Power or User Replaceable Battery. Pushbutton or Programmable Start. NIST Traceable Calibration Certificate Included. Simple Setup and Installation. Minimal Long-Term Maintenance. Long-Term Field Deployment. Does not require a communication interface, connects to the PC directly with a standard USB cable. More

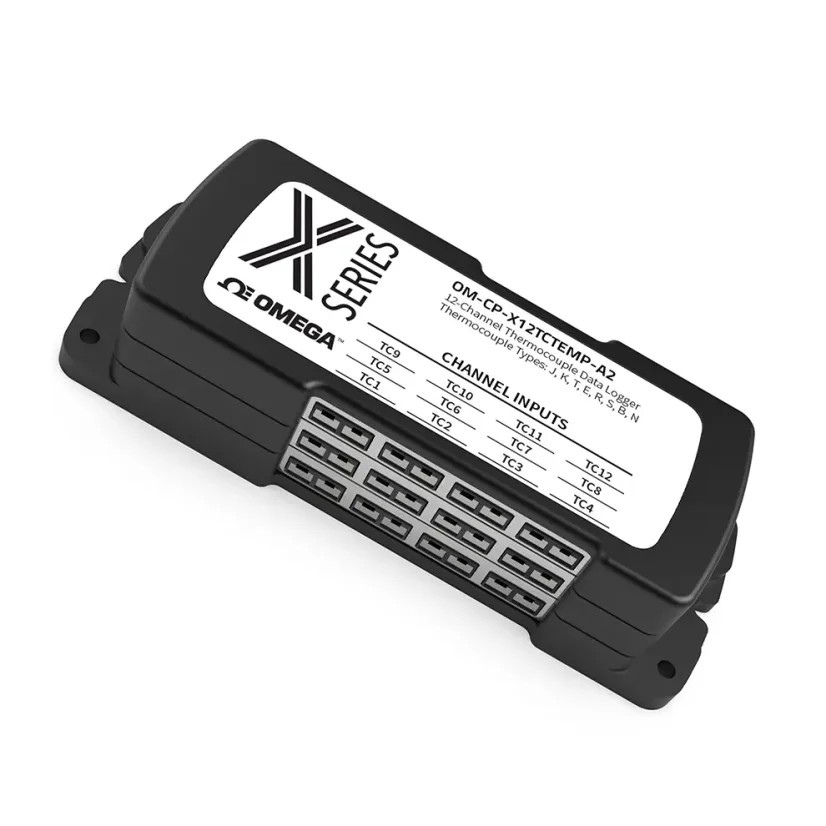

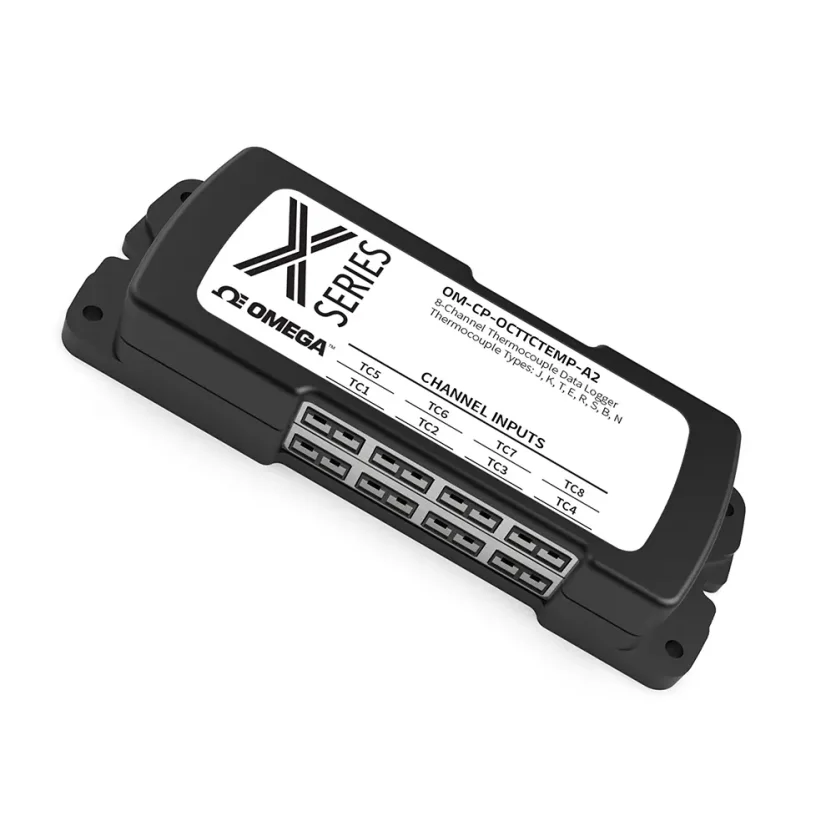

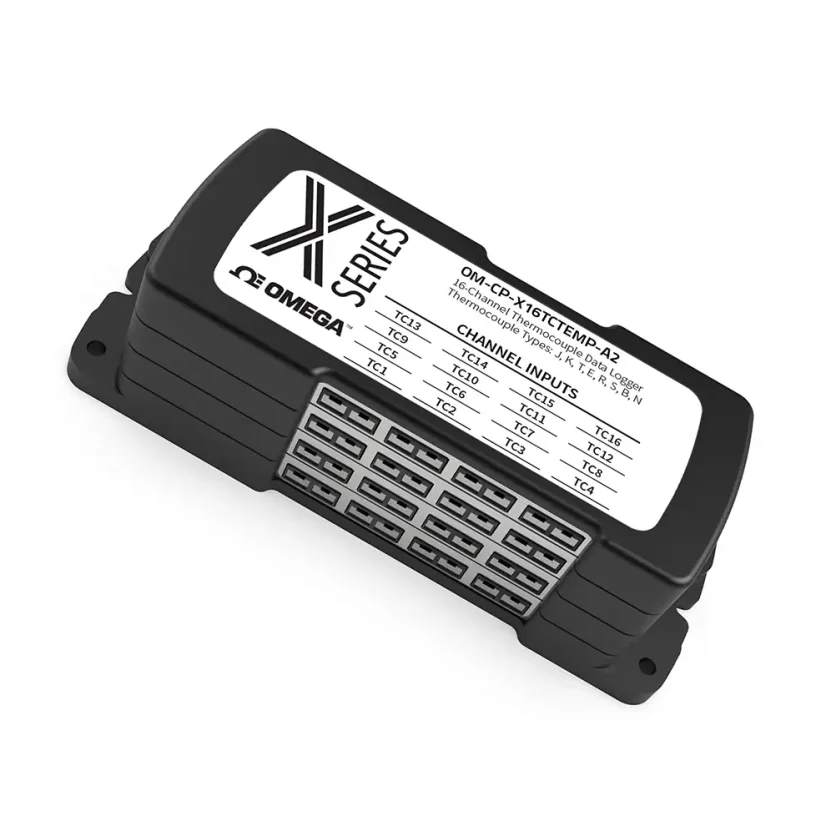

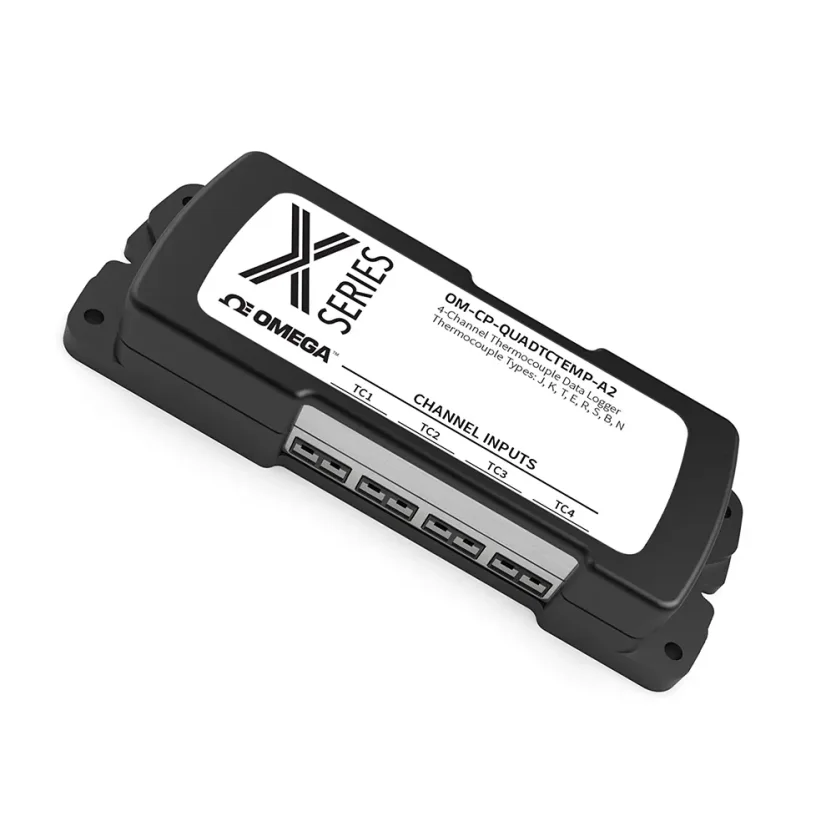

The new OM-CP-TCTempX Series consists of 4, 8, 12 and 16-channel Thermocouple data loggers with a reading rate of up to 4 Hz. X-Series devices ship with a standard USB-A to Micro USB cable for use with free OM-CP PC based software (no longer requires the OM-CP-IFC200 communication interface like previous models). The X-series has a high memory capacity and increased download speed compared to previous generations of product.
Dataloggers are ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged and displayed on-screen for real-time monitoring. It can then be downloaded to a PC for further analysis.
Using the OM-CP Data Logger Software, starting, stopping and downloading from the OM-CP Series data loggers is simple and easy. New models no longer requires the OM-CP-IFC200 communication interface like previous models (connects to the PC directly with a USB cable). Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
If you are interested in temperature calibration, also order the appropriate thermocouples for the required number of channels.
Internal Senzor Temprature Range: -20°C to +60°C
Temprature Resolution: 0.01°C
Calibrated Accuracy: ±0.5°C (0°C to 50°C)
Thermocouple Type: J, K, T, E, R, S, B, N
Input Connection: female subminiature (SMP)
Cold Junction Compensation: automatic, based on internal channel
Memory (All channels enabled):
4-channel: 524,032 readings per channel
8-channel: 262,016 readings per channel
12-channel: 174,677 readings per channel
16-channel: 131,008 readings per channel
Start Modes: software programmable immediate start or delay start, up to 6 months in advance
Real Time Recording: may be used with PC to monitor and record data in real time
LEDs: 1 per channel and 2 status LEDs
Reading Rate: 4 Hz up to 1 reading every 24 hours
Calibration: digital calibration through software; date automatically recorded within device
Battery: 9V lithium included, user replaceable
Battery Life: 18 months typical with display off; 3 months typical with continuous display use
Data Format: date and time stamped °C,°F, K, °R, mV and V
Time Accuracy: ±1 minute/month
Computer Interface: USB-A to micro USB cable (included); 460,800 baud
Operating System Compatibility: Windows 7/8/10
Operating Environment: -20°C to +60°C; 0% RH to 95% RH non-condensing
4-channel: 65.6 mm × 184.2 mm × 31.0 mm
8-channel: 65.6 mm × 184.2 mm × 31.0 mm
12-channel: 65.6 mm × 184.2 mm × 42.7 mm
16-channel: 65.6 mm × 184.2 mm × 54.4 mm
4-channel: 368 g
8-channel: 368 g
12-channel: 580 g
16-channel: 800 g
Enclosure: Black anodized aluminum
For technical specifications, see the spec sheet in the "Downloads" section.
Technically speaking, a data logger is any device that can be used to store data. This includes many data acquisition devices such as plug-in boards or serial communication systems which use a computer as a real time data recording system. Most instrument manufacturers, however, consider a datalogger a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.
The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Data loggers are available in various shapes and sizes...
