Universal Load Cells ±100 N to ±50 kN

Miniature Package for Test Stands and Difficult Locations. Rugged, Heavy Duty Construction. Dual Mounting Studs for Easy Installation. 5-Point Calibration. More

Item# (PN): LCM202 Shipping and Payment

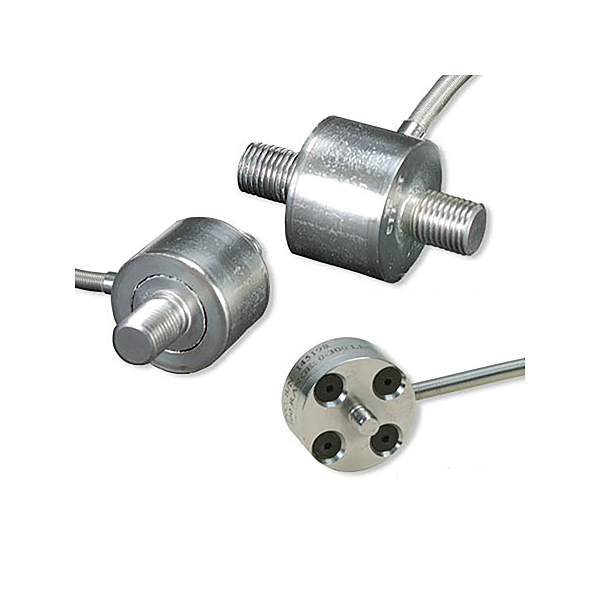

OMEGA’s LCM202 Series Load Cell offers the designer a compact series with ranges from 100 to 50,000 N and accuracy of 0.25%. The all stainless steel construction and rugged design assure long life in industrial and commercial applications.

SPECIFICATIONS:

Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.25% FSO(Linearity, Hysteresis, Repeatability Combined)
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero: 0.009% FSO/°C Span: 0.009% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±10 Ohms
Construction: Stainless Steel
Electrical: 1.5 m 4-core cable
Protection Class: IP65

Download

LCM202_spec_sheet.pdf (pdf, 506.5 kB)

Introduction to Load Cells

A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of force sensors, strain gauge load cells are the most commonly used type.

Except for certain laboratories where precision mechanical balances are still used, strain gauge load cells dominate the weighing industry. Pneumatic load cells are sometimes used where intrinsic safety and hygiene are desired, and hydraulic load cells are considered in remote locations, as they do not require a power supply...
