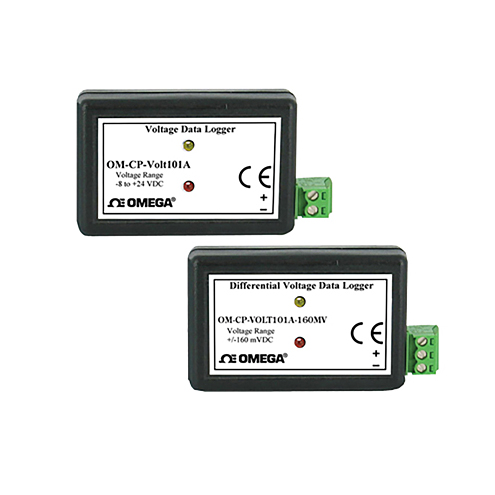

Voltage Data Loggers
Item# (PN): OM-CP-VOLT101A_series Shipping and Payment
Voltage Data Logger with Multiple Start/Stop Function. Programmable Engineering Units. Large Data Storage 1,000,000 Readings. 10-Year Battery Life. LED Alarming. High Speed Download Capability. More
The OM-CP-VOLT101A voltage data logger provides a low cost solution for logging single channel DC Voltages. Its high accuracy and 16-bit resolution place this product at the forefront of low level DC voltage recording devices. This data logger is ideal for accurately measuring and recording battery voltages, sensor output signals, photovoltaic studies, as well as many other low level DC voltage sources. With user programmable engineering units, the user can scale the input voltage automatically. The OM-CP-VOLT101A is available in four different input ranges: 160 mV, 2.5V, 15V and 30V versions.
Data retrieval is simple. Plug the device into an available USB port and our easy-to-use software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel file.
| INPUT RANGES | OM-CP-VOLT101A-160MV |
OM-CP-VOLT101A-2.5V |
OM-CP-VOLT101A-15V |
OM-CP-VOLT101A-30V |
| Voltage Input Range |
±160 mV
|
-3 to +3 V
|
-8 to +24 V
|
-8 to +32 Vdc
|
| Resolution |
5 µV
|
0.1 mV
|
0.5 mV
|
1.0 mV
|
| Calibrated Accuracy |
±0.01%
|
±0.05%
|
||
| Input Impedance |
>1 MΩ
|
125 kΩ
|
||
| Overload Protection |
±5 V**
|
±50 V*
|
||
| Input Type |
Differential
|
Single ended
|
||
* Indefinately
** For 10 seconds
For technical specifications, see the spec sheet in the "Downloads" section.
Data Logger / Introduction to Data Logging Devices
Technically speaking, a data logger is any device that can be used to store data. This includes many data acquisition devices such as plug-in boards or serial communication systems which use a computer as a real time data recording system. Most instrument manufacturers, however, consider a datalogger a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.
The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Data loggers are available in various shapes and sizes...
