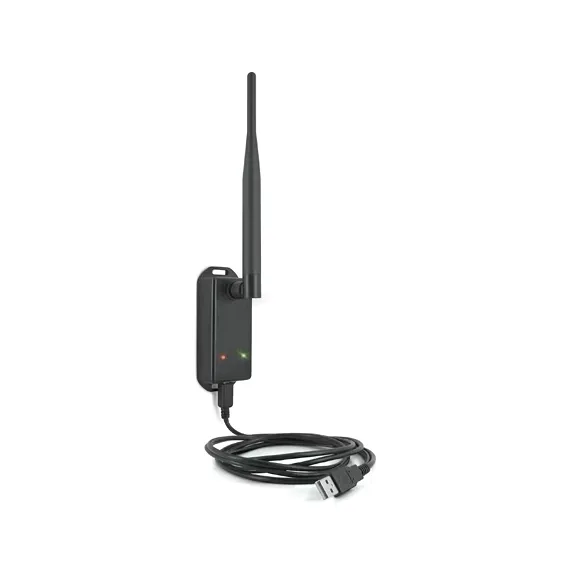

Wireless Receiver for OM-CP Series

The OM-CP-RFC1000-EXT-EUR is designed with a high powered transceiver that has a substantially long transmission range, meaning better performance in occluded environments (ovens, refrigerators, etc.). This OM-CP-RFC1000-EXT-EUR also includes an external antenna, allowing more flexibility with mounting positions in both orientation and proximity to metal walls. This may be used as a repeater, or directly plugged into the PC via the USB port. PC software comes on a flash drive.

The OM-CP-RFC1000-EXT-EUR transmits to other OM-CP-RFC1000-EXT-EURs up to 1,2 Km maximum typical outdoors/line of sight, 300 m maximum typical indoors/urban. The OM-CP-RFC1000-EXT-EUR transmits to data loggers up to 600 m maximum typical outdoors/line of sight, 150 m maximum typical indoors/urban. The OM-CP-RFC1000-EXT-EUR can connect to a maximum of 64 data loggers. The OM-CP-RFC1000-EXT-EUR transmits on a frequency of 2.405GHz - 2.475 GHz.

SPECIFICATIONS:

Operating Environment:
 OM-CP-RFC1000: -20 °C to +85 °C, 0 %RH to 95 %RH non-condensing
 Power Supply: 0 °C to +40 °C, 20 %RH to 85 %RH non-condensing
Transmission Distance to Data Logger:
 Unobstructed line-of-sight (outdoors): 2,000 feet max
 Typical urban environment (indoors): 500 feet max
Transmission Distance to RFC1000:
 Unobstructed line-of-sight (outdoors): 2,500 feet max
 Typical urban environment (indoors): 700 feet max
Compatible Data Loggers: OM-CP-RFOT, Therm-A-lert and OM-CP-RF2000A Series
Maximum number of connected data loggers: 64
Frequency: 2.405 GHz - 2.475 GHz
Ingress Protection: IP40
Dimensions Body: 96.52 mm x 40.64 mm x 20.32 mm
Antenna: 69 mm
Weight: 40 g
Approvals: FCC ID: OA3MRF24J40MC, IC#: 7693A-24J40MC, CE, ETSI 300 328 (EU R&TTE)
