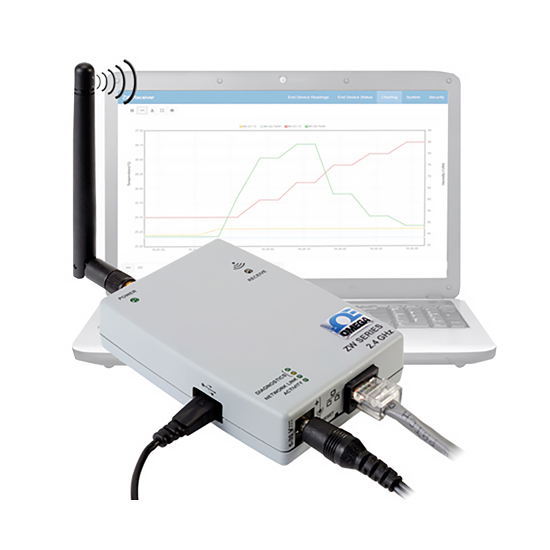

Wireless Receiver ZW-REC series

Price
€ 301,30 excl. VAT, € 364,57 incl. VAT

Manufacturer
OMEGA

Product code
ZW-REC

can be ordered Watch availability - date of dispatch to be specified
qty

Built-In Web Server with SSL Encryption. Supports Up to 128 End Devices. Compatible with HTML5 and Mobile. Log data with Omega Enterprise Gateway (OEG). More

High-performance, low power consumption OMEGA™ ZW-REC wireless receiver is designed to communicate up to 1000m* (3280') outdoor and around 100m* (328') indoor to various wireless sensors/transmitters. It connects directly to an Ethernet network to serve active web pages and display the data. This built-in web server supports encryption to protect the sensitive data. Email and Text alarms can be sent using OMEGA Dashboard with the receiver. Wirelessly updating firmware for compatible devices is another key feature.

You can monitor and record a range of remote sensors, including Thermocouple, RTD, infrared, Ambient Temperature, Relative Humidity and Barometric Pressure over an Ethernet network with no special software — just your web browser. OMEGA offers the complete wireless system solution supporting a wide range of application requirements in various industries, like Aerospace, Food Processing, Laboratory Research.

* Without obstruction or interference.

Compatible Wireless Transmitters
ZW Series (ZW-ED): Up to 128 End Devices
UW Series (UWTC, UWRTD, UWIR, UWRH, UWPH): Up to 127 End Devices

Environmental: 0 to 70°C (32 to 158°F), 90% RH non-condensing

Agency Approval: ECCN 5A992; EMC 2014/30/EU; LVD 2014/35/EU; RED 2014/53/EU; FCC ID TY0JN5168M5
Note: Because of transmission frequency regulations, the ZW series products may only be used in the United States, Canada, Europe, China, Japan, Korea, and Brazil.

A Complete Wireless System Requires At Least:
Case 1: One ZW End Device (ZW-ED), One Digital Probe (zTPx-P, ZTHPx-P or zBTx-P) and One ZW Receiver (ZW-REC).
Example: 3 ZW-ED, 3 zTP1-P and 1 ZW-REC for a 3 zone wireless temperature measurement system

Case 2: One UW Series End Device (UWTC-x, UWRTD-x, UWIR-x, UWRH-x, UWPH-x) and One ZW Receiver (ZW-REC).
Example: UWTC-2 and ZW-REC for a complete wireless thermocouple system
