External Thermocouple, RTD, or Contact Closure. Configurable internal sensor mix of Temperature, Humidity, Barometric Pressure, or Light sensor. Free Layer N Standard Cloud service accessible from any connected device. Easy setup with one-button pairing. Transmits up to 1.2 km with standard AA batteries. Transmits up to 3.2 km when powered with 5V USB. AES-256 Encrypted wireless link keeps your data secure. Local data logging up to 10,649 data points. More
Layer N SS-002 Smart Sensors provide an external 3-wire RTD, thermocouple, or contact closure solution in addition to the built in suite of precision internal sensing elements that come standard with the SS-001 to accurately measure environmental conditions for a wide range of applications.
The SS-002-0 offers a configurable choice of an external thermocouple, RTD, or DIN (contact closure).
The SS-002-1 offers a configurable mix of any three of the four internal sensors: Temperature, Humidity, Barometric Pressure, Ambient Light, AND one external sensor option: Thermocouple, RTD, or DIN (contact closure).

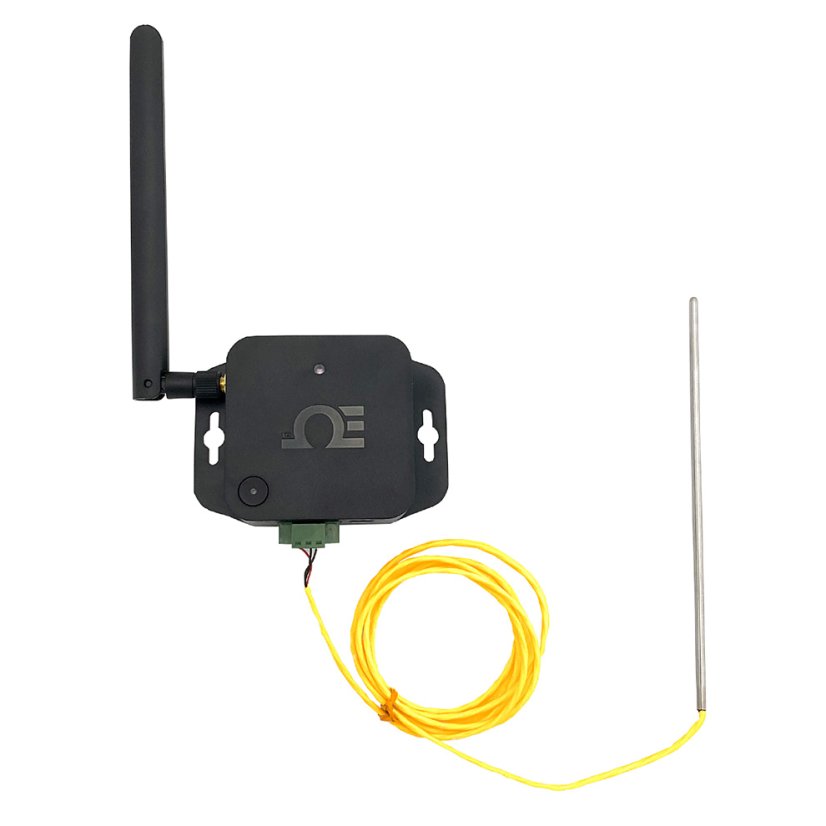

Connecting an external thermocouple to the SS-002 series smart sensor:
The Wireless Gateways utilize Sub GHz Frequency Hopping Spread Spectrum (FHSS) technology to ensure robust, long range communications to Layer N Smart Sensors. Transmission ranges of up to 1.2 km can be achieved when the sensor is powered with the standard AA batteries, and transmission ranges of up to 3.2 km can be achieved with a Smart Sensor in range boost mode powered by a standard external 5V USB power supply.
Plug and Play
Layer N Smart Sensors are easily paired to the Layer N Gateway with the press of a button, and will automatically show up on your Layer N Cloud Account. Local data logging for your Smart Sensor devices keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Layer N Cloud keep you informed on the status of all your vital processes.
Layer N wireless products are designed with state of the art security features to protect your data with robust AES256 encryption and advanced PKA-EC521bit (NIST) elliptic-curve cryptography to protect your data. The gateway features a TPM (Trusted Platform Module) secure hardware element which protects the safety of all encryption keys and usesX.509 device certificates for secure communication between the gateway and the Layer N Cloud.
Advanced Omega Level N features may be configured through SYNC software and include selective data extraction, measurement and device traceability, local alarms and adaptive transmission rates to reduce data congestion and extend battery life.
Your Data at a Glance with Layer N Cloud
Layer N Cloud consolidates and brings your data to you when you need it, wherever you are. The intuitive cloud interface allows you to monitor and store your data, set alarms and alerts, and provides insights on device activity.
Wireless Communication Frequency: 868 MHz
Range: Up to 3.2 km (when powered by USB, without obstruction)
Alkaline Battery: 2x AA batteries (included); Lifetime: Up to 1.5 years with frequency of 1 reading per hour
USB Power*: 500mA @ 5V (Micro USB cable not included)
Operating Conditions for Base Unit:
Battery Powered: -15°C to 55°C, non-condesning
USB Power: -20°C to 65°C, non condensing
Software: Compatible with SYNC configuration software and Layer N Cloud
|Temperature||-20°C to 70°C||±0.3°C|
|Humidity @ 25°C||0% to 80%||±2.5%|
|80% to 100%||±3.5%|
|Barometric Pressure @ 25°C||700 mbar to 1100 mbar||±4 mbar|
|Barometric Pressure @ Full
|300 mbar to 1100 mbar||±6 mbar|
|Light||0-43691 illuminance||Relative level only|
