Thermocouple Wires
K Type Thermocouple Duplex Wire (AWG 40/36/30)
can be ordered
from
€ 35.30 excl. VAT
High Quality Type "K" Thermocouple Grade Wire. Diameter 0,080 mm / 0,127 mm / 0,255 mm (AWG 40, 36, and 30). Choice of Insulation, Wire…
K Type Thermocouple Duplex Wire (AWG 24/20)
can be ordered
€ 44.10 excl. VAT
High Quality Type "K" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, & Length.…
Overbraid K Type Thermocouple Duplex Wire
can be ordered
from
€ 66.20 excl. VAT
High Quality Overbraid Type "K" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, &…
Bare Thermocouple Wire (Wide Range of Diameters)
can be ordered
€ 26.50 excl. VAT
Bare Thermocouple Wire, Uninsulated. Wire Diameters from 0,0127mm to 3,264 mm. 15, 30, 150, 300 Metre Reels. Can be ordered including…
T Type Thermocouple Duplex Wire (AWG 40/36/30)
can be ordered
from
€ 31.50 excl. VAT
High Quality Type "T" Thermocouple Grade Wire. Diameter 0,080 mm / 0,127 mm / 0,255 mm (AWG 40, 36, and 30). Choice of Insulation, Wire…
T Type Thermocouple Duplex Wire (AWG 24/20)
can be ordered
from
€ 33.10 excl. VAT
High Quality Type "T" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, & Length.…
Overbraid T Type Thermocouple Duplex Wire
can be ordered
from
€ 52.70 excl. VAT
High Quality Overbraid Type "T" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, &…
Insulated Thermocouple Wire (ANSI)
can be ordered
€ 28.70 excl. VAT
Insulated thermocouple wired with a single Strand. Extruded PFA. ANSI Colour Coded. Excellent in a Vacuum. Non-Flammable. Wire Diameters…
Insulated Thermocouple Wire (IEC)
can be ordered
€ 28.10 excl. VAT
Insulated thermocouple wired with a single Strand. Extruded PFA. IEC Colour Coded. Excellent in a Vacuum. Non-Flammable. Wire Diameters…
J Type Thermocouple Duplex Wire (AWG 40/36/30)
can be ordered
from
€ 33.10 excl. VAT
High Quality Type "J" Thermocouple Grade Wire. Diameter 0,080 mm / 0,127 mm / 0,255 mm (AWG 40, 36, and 30). Choice of Insulation, Wire…
J Type Thermocouple Duplex Wire (AWG 24/20)
can be ordered
€ 33.10 excl. VAT
High Quality Type "J" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, & Length.…
Overbraid J Type Thermocouple Duplex Wire
can be ordered
from
€ 58 excl. VAT
High Quality Overbraid Type "J" Thermocouple Grade Wire. Diameter 0,510 mm / 0,810 mm (AWG 24 and 20). Choice of Insulation, Wire Gauge, &…
Technical Learning

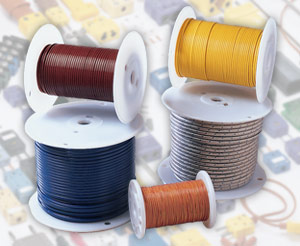

Thermocouple Wire / How it Works?
The thermocouple wire or cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end). On the other side, as it has been explain in this other article, a thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end.
Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end)...
