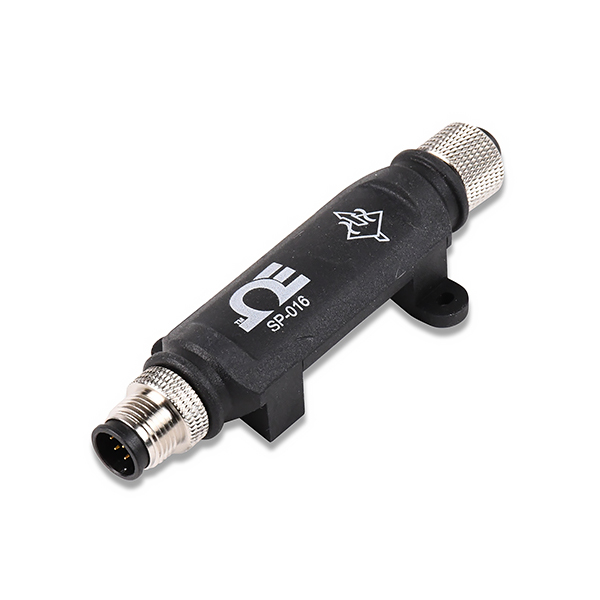

Smart Probe Heat Flux Sensor
1x Heat Flux Thermopile including Thermocouple Temperature Compensation monitoring device. 2x Digital I/O. Software configurable through SYNC configuration software. Modular M12 construction. OMEGA Smart Core enabled. Data Logging, Integrated Alarm and Control. Plug and Play Device Detection. Sensor health monitoring. More
Item# (PN): SP-016-1 Shipping and Payment
The Omega Link SP-016 Heat Flux Smart Probe provides an easy way to integrate your thermopile-based heat flux sensor to the Omega Link Ecosystem. The SP-016 performs the necessary calculations to provide the heat flux measurement in W/m2. The SP-016 accepts heat flux sensors through its M12 4-pin connector and Omega Link Smart Interfaces through its M12 8-pin connector. Omega offers an optional M12-S-M-FM connector to easily connect wire leads to your SP-016.
The SP-016 supports any single thermopile sensor input (mV/W/m2) and temperature compensation input (thermocouple). Additionally, the SP-016-1 provides 2 open drain discrete inputs/outputs that may be used to detect external switch closures or control external alarms and control relays.
Intuitive Configuration
Configure your Omega Link Smart Probe using SYNC’s intuitive configuration interface.
Edge Control and Built in I/O
The Omega Link SP-016 features 2 configurable digital I/O pins. These can be used for a myriad of applications including driving relays, physical alarms, or sensing dry contacts like door switches. The SP-016 can also be utilized as an edge controller, with autonomous independent decision-making capabilities to generate local alarms or provide control outputs based on sensor inputs.
Smart Core Enabled
Smart core is integral to all Omega Link Smart Probes. This powerful suite of advanced features enable plug and play connectivity, alarms and notifications, data assurance, data logging, and storage.
Smart Interface Modularity
Customize your Omega Link Ecosystem with modular Smart Interfaces that connect and transmit data from your Smart Probe to the Omega Link Cloud.
Your Data at a Glance with Omega Link Cloud
Omega Link Cloud consolidates and brings your data to you when you need it, wherever you are. The intuitive cloud interface allows you to monitor and store your data, set alarms and alerts, and provides insights on device activity.
SPECIFICATIONS:
Input power voltage: 2.8 VDC - 3.3 VDC
DIO DIGITAL INPUTS
VinHighThreshold= 2.2 VMAX
VinLowThreshold= 0.3 VMIN
VinMAX= 30 VDC
DIO DIGITAL OUTPUTS
2x Open Drain 100 mA max
VMAX= 30 VDC
Operating Temperature: -40 to 85°C
Rating: IP67 when mated
Dimensions: 22.1 mm W x 96.7 mm L (0.87” x 3.80”) not including mounting tabs
Agency Approvals: CE, EMC 2014/30/EU, LVD 2014/35/EU
Compatibility: Compatible with OEG, SYNC configuration software, Omega Link Cloud, and Modbus Networks
