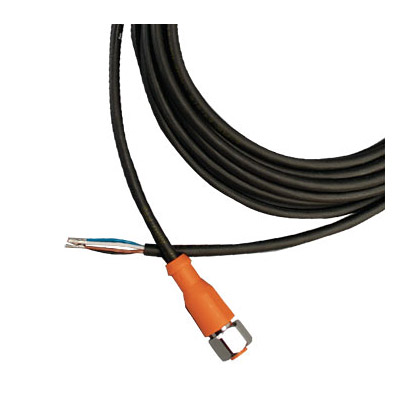

M12 Cable for RTD, Thermistor and Transmitters

Cable length

Connector A

Connector B

Insulation

from € 15.80 excl. VAT

qty

Standard M12 Connectors with Gold Plated Contacts. Straight or Right Angle Connection. Single Ended Connector with Stripped Lead Termination and Double Ended Connector Cable Types Available. PVC, Polyurethane or Silicone Jacket/Insulation. Cables Have Four #24AWG Stranded Copper Conductors. Available in various lengths. More

Item# (PN): M12C Shipping and Payment

These extension cables can be used for connecting sensors such as our M12 Style Sanitary Sensors, PR-21 and PR-22 Industrial RTD Sensors or other sensors, to transmitters or instruments such as Omega's DTG-RTD Digital RTD Thermometer, TX94A-SS 4 to 20mA Transmitter, UWRTD-S-2 or UWRTD-2-NEMA Wireless Transmitters or other products which include an M12, 4-pin connector (see related product links below).

These M12 extension and patch cables are available in a variety of lengths. Special length patch cables with connectors both ends can be custom assemblied by cutting a single ended cable to your required length and then adding one of our field mountable connectors shown in the table below.

SPECIFICATIONS:

These cables are supplied in a variety of configurations including:

Straight socket style M12 connector one end with stripped leads the other end
Right angled socket style M12 connector one end with stripped leads the other end
Straight socket style M12 connector one end with a straight plug style M12 connector the other end
Right angled socket style M12 connector one end with a straight plug style M12 connector the other end

The M12 cables include the following materials:

Insulation Style	Order Code	Cable Color	Ambient Temp*	Nut Material	Contact Material	Cable Diameter
PVC	PVC	Orange	-25 to 100°C	316 SST	Gold Plated Brass	4,83 mm
Polyurethane	PUR	Black	-25 to 90°C	Nickel Plated Brass	Gold Plated Brass	4,83 mm
Silicone	SIL	Gray	-50 to 180°C	Nickel Plated Brass	Gold Plated Brass	4,32 mm

Please Note:
* = Ambient temperature shown is for the cable, molded connectors are rated to 90°C Max.
"PVC" and "PUR" molded connectors are Orange, "SIL" molded connectors are Gray.
