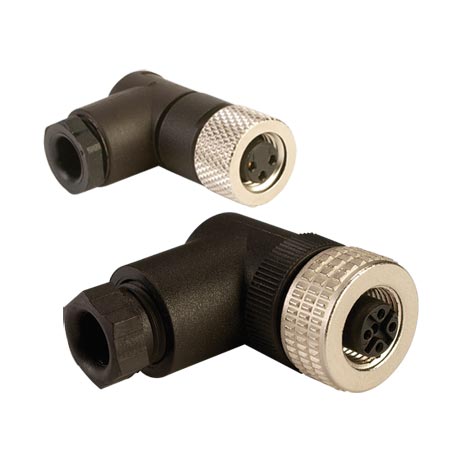

Provide Convenient means of Connecting Sensors to Equipment with M8 or M12 Connections. Available in Straight or Right Angled Geometries. IP67 Rated. Connectors Include Plated Brass Pins or Sockets. M12 Connectors Feature "A" Coded, 4 Pin Screw-Type Wire Connections. M8 Connectors Feature 3-Pin Solder Cup Style Wire Connections. More
These field mountable industrial connectors can be used with our M8 RTD, M12 RTD, M8 & M12 thermocouple extension cables or with smart Omega Link probes SP-xxx series. The M12 connectors feature convinient screw terminal style pins or sockets eliminating the need for solder connections in the field. The M8 connectors feature solder-cup style connections due to the limited space available.
The field mountable connectors are available in four configurations:
- Right Angled Recepticles (M12-R-F-FM)
- Straight Recepticles (M12-S-F-FM)
- Right Angled Plugs (M12-R-M-FM)
- Straight Plugs (M12-S-M-FM)
Specificatons and Materials:
- Rotating threaded connecting nuts are plated brass
- Molded housings are black nylon
- Pins and Sockets are plated brass
- Temperatue Range: -25 to 85°C
- M12 Connectors Have Screw Connections for Wire Attachment.
- M12 Connector Cable Requirement: #18 to #24AWG Conductors, 4 to 6mm Cable OD
- M8 Connectors Have Solder Connections for Wire Attachment
- M8 Connector Cable Requirement: #24AWG Conductors, 4 to 6mm Cable OD
