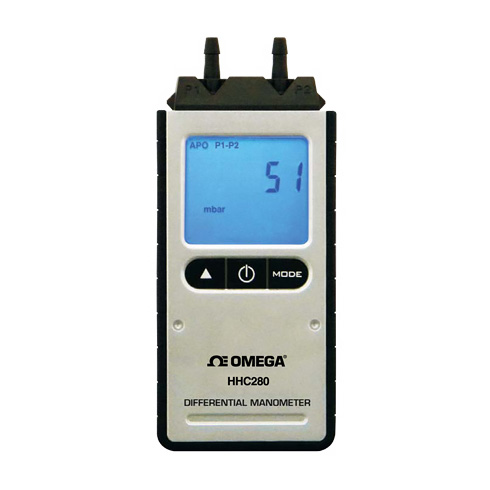

Differential Manometer

HVAC System Troubleshooting. Gas Pressure Measurements. Compliant for Pitot Tubes for Measuring Air Velocity. 0 to 40 inH2O/0 to 100 hPa. Dual Inputs P1 and P2. Functions: HOLD / MIN / MAX / MAX-MIN / AVG. Auto Power-Off (10 Minutes). Backlight with Auto-Off (15 Seconds). More

Item# (PN): HHC280 Shipping and Payment

Differential Pressure Meter HHC280

SPECIFICATIONS:

Eight Selectable Units: mmH2O, mmHg, psi, inH2O, inHg, hPa, mbar, Pa, plus m/s and fmp (for air velocity)
Range: 0 to 100 hPa/0 to 1019.7 mmH2O
Resolution: 0.1 hPa/0.1 mmH2O

Accuracy:
±0.03 hPa (0 to 0.30 hPa)
±0.05 hPa (0.31 to 1.00 hPa)
±0.1 hPa + 1.5% or rdg (rest of range)
±0.3 mmH2O (0 to 3.0 mmH2O)
±0.5 mmH2O (3.1 to 10.2 mmH2O)
±1.02 mmH2O + 1.5% of rdg (rest of range)

Operating Temperature: 0 to 50°C (32 to 122°F)
Power: 2 “AAA” batteries (included)
Battery Life: 85 hours typical with alkaline batteries
Dimensions: 24.7 x 50.9 x 132.9 mm (0.98 x 2.0 x 5.2")
Weight: 113 g (4.0 oz)

Comes complete with batteries, carrying strap, and protection cap.

Download

HHC200-SERIES_spec_sheet.pdf (pdf, 548.4 kB)

HHC280_en_manual.pdf (pdf, 198.2 kB)
