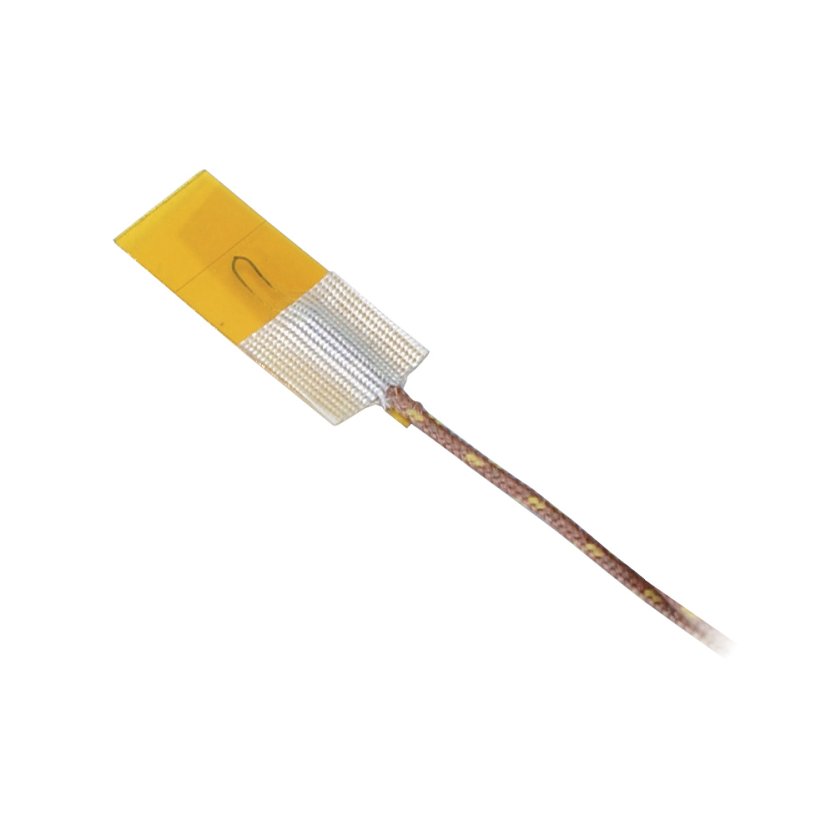

Fast Response Self-Adhesive Thermocouple (Pack of 5)
Prices for packs of 5. Polyamide Carrier. Self-Adhesive Backing, Easy Installation. Low Mass Junction Area for Fast Response. Resistant to many Chemicals and Oils. Temperature Range: -40 to 260°C. Available in Type J, K, T, and E Thermocouples, ANSI or IEC Color Codes. Available with Miniature Color Coded Connectors or Stripped Leads. Stocked in 1, 2, and 3 metre Lengths. Custom Lead Lengths Available. Also Available with Stainless Steel Overbraid for Tougher Applications. More
Item# (PN): SA1XL Shipping and Payment
The surface thermocouples probes from the SA1XL series achieves response times of less than 0.15 seconds. This thermocouple is constructed using a Kapton/fibreglass junction insulation along with a fibreglass-insulated lead wire. The SA1XL can be used as a self-adhering thermocouple for temperatures up to 260°C or it can be cemented in place for use at temperatures up to 315°C.

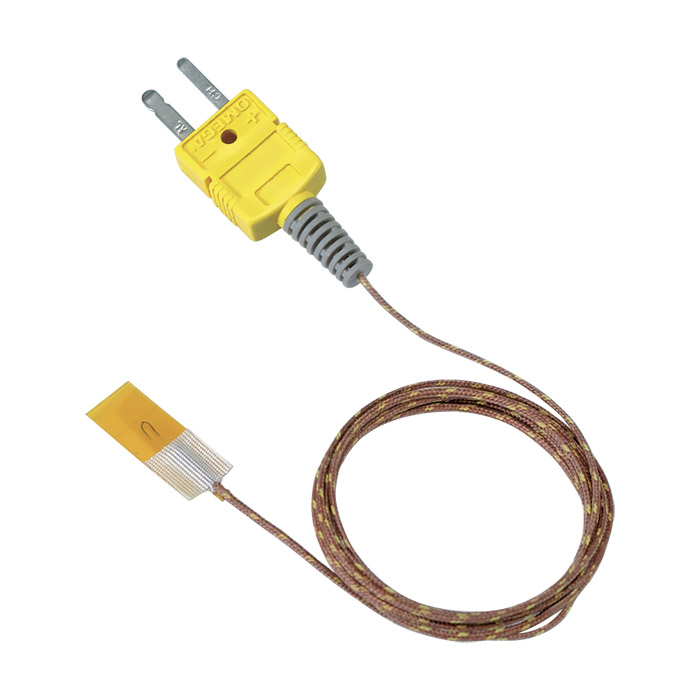

These thermocouples can be used in outdoor and wet environments, including bright sunlight, with little to no effect on performance or accuracy. Our unique construction techniques provides a fast responding thermocouple junction in a thin and flexible mounting pad. These thermocouples are available in 2 styles, stripped #30AWG solid leads, or with a miniature color coded connector.
SPECIFICATIONS:
Thermocouple: ANSI color code J/K/T/E or IEC color code JI/KI/TI/EI
Accuracy: Special limits of error
Junction Type: Ungrounded sensor construction
• Polyimide tape base with silicone adhesive and paper peel sheet
• Polyimide tape cover
• PFA insulated and jacketed 30 AWG cable
• Glass filled nylon connector when specified
Temperature Range:
Sensor: -17 to 260°C
Connector: -29 to 180°C
Insulation Resistance: 100 MOhm minimum at 100 Vdc at room temperature and sensor mounted to surface
Thermocouple Sensor / What is a Thermocouple?
A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.
Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...
How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
Choose the right temperature measurement instrument for your application...
What is a Type K Thermocouple?
What Are Common Applications for Thermocouples?
Thermocouples are the most widely used temperature sensors on the planet due to their combination of wide temperature capabilities, ruggedness, and low cost. Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites and spacecraft.
When it comes to high temperatures, small size, fast response, high vibration or shock, most times you will find thermocouples providing the temperature measurements.
