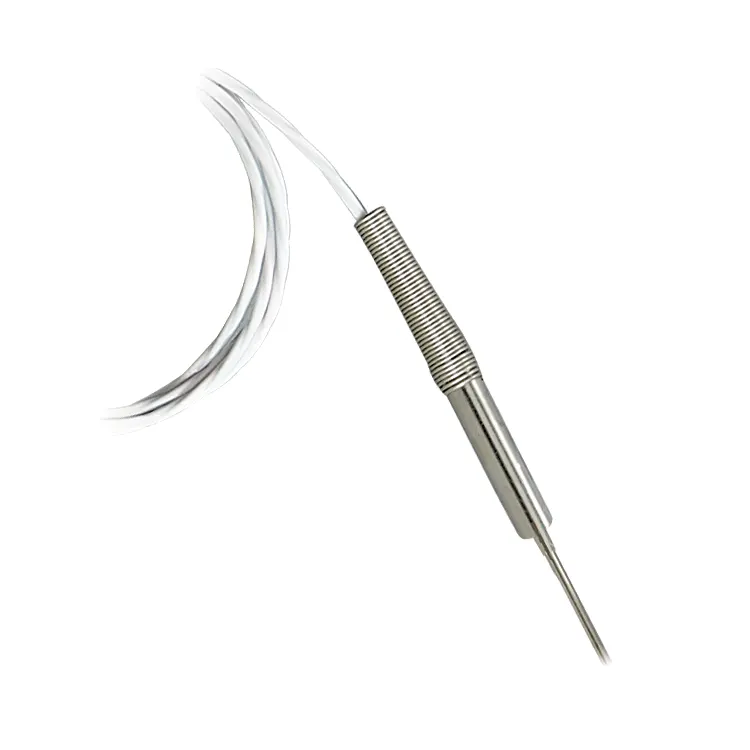

General Purpose RTD (PT100) Probe with Metal Strain Relief
Class A accuracy Pt100 conforming to IEC 60751. 2, 3, and 4-wire lead wire styles. Low temperature range: -50 to 250°C. High temperature range: -50 to 450°C. Extreme Pt100 temperature range: -200 to 600°C. Standard probe lengths: 2, 3, 4, 6, 9, 12, 18 and 24 in. Pt100 and Pt1000 RTD element. Stripped-end leads with other cold-end termination options. Dual Pt100 / Pt1000 element offered on 1/4 in. diameter probes only. The standard length of the cable is 1 m. More
Item# (PN): PR-11 Shipping and Payment
Omega's PR-11 RTD Pt100 (Pt1000) probe with insulated lead wire has a shrink-tube strain relief support at the sheath/wire transition to provide wire flexibility and durability. This 304 stainless steel Pt100 probe is offered in 2-, 3-, or 4-wire configuration. Pt100 probe is available in three temperature ranges covering -200°C to 600°C (-328 to 1112°F) to accommodate your specific temperature needs. Applications for this Pt100 probe include liquid immersion, slurries and emulsions, granular material measurements, as well as temperature monitoring of heat bars, kilns, and pipes. The standard length of the cable is 1 m.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Comes with bare stripped ends as standard. You can order the probe, including the installation of connectors. Put the required connectors in the basket together with the probe. If needed, order the required connectors separately, see "Related Products" below.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
RTD Pt100 vs Thermocouple
It is not practical to compare RTDs (Pt100 and others) and thermocouples generally. However, if we compare their performance in terms of specific criteria, we can see which is best suited for specific applications. Thermocouples are best for working at high temperatures. New manufacturing techniques have improved the measurement range of RTD probes, but more than 90% of RTDs are designed for temperatures below 400°C.
In contrast, some thermocouples can be used at up to 2500°C. Thermocouples are generally cheaper than RTDs...
Origin Story of the RTD / Pt100
The same year (1821) that Thomas Seebeck made his discovery about thermoelectricity (Seebeck effect, see thermocouples), Sir Humphrey Davy announced that the resistivity of metals showed a marked temperature dependence. Fifty years later, Sir William Siemens proffered the use of platinum as the element in a resistance thermometer. His choice proved most propitious, as platinum is used to this day as the primary element in all high-accuracy resistance thermometers, Pt100, Pt1000 etc.
In fact, the Platinum Resistance Temperature Detector, or RTD Pt100, is used today as an interpolation standard from the oxygen point (-182.96°C) to the antimony point (630.74°C)...
What are RTD temperature sensors?
RTDs or Resistance Temperature Detectors, are temperature sensors that contain a resistor that changes resistance value as its temperature changes. The most popular RTD is the Pt100. They have been used for many years to measure temperature in laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability.
Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is usually quite fragile, so it is often placed inside a sheathed probe to protect it...
