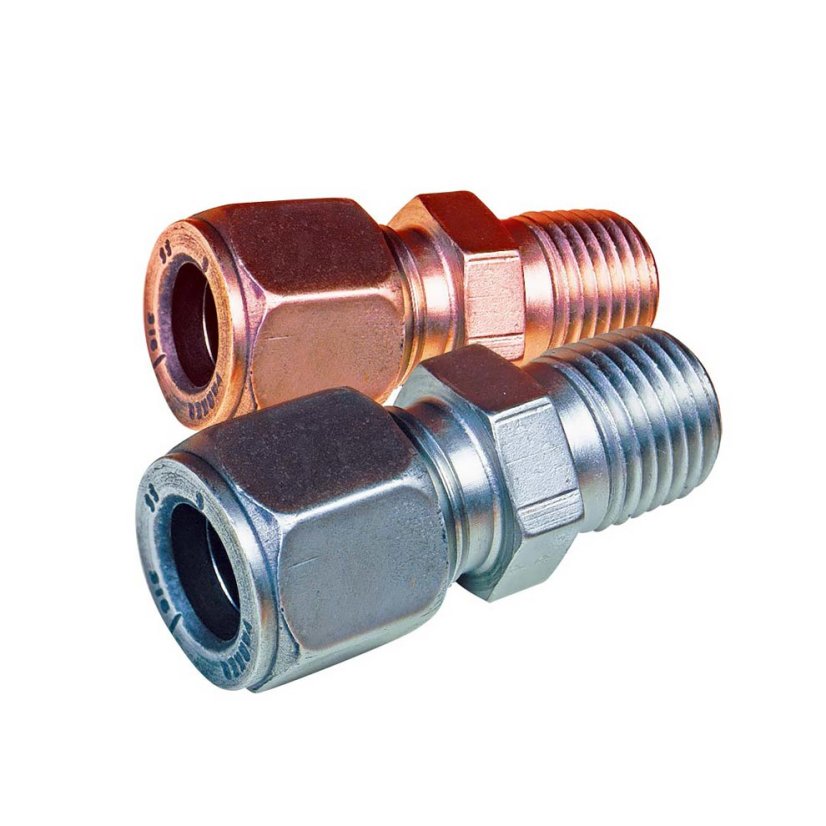

OMEGALOK™ compression fitting with conical seal
Item# (PN): BRLK_SSLK Shipping and Payment
BRLK and SSLK compression Fittings. Ferrule Design for Positive Pressure Seal. Heavy Duty Construction in Stainless Steel or Brass. For Protection Tube Diameters 1/16" to 1/2". Metric Models are available for Metric Probes and Protection Tubes. More
Compression Fittings
- Ferrule Design for Positive Pressure Seal
- Heavy Duty Construction in Stainless Steel (SSLK) or Brass (BRLK)
- For Protection Tube Diameters 1/16" up to 1/2"
- Metric Models are available for Metric. Probes and Protection Tubes
| Protection Tube O.D. |
Male Th's NPT) |
Length "A" IN. |
Brass Model No. |
316 Stainless Steel Model No. |
| 1/16" | 1/16" | .97 | N/A | SSLK-116-116 |
| 1/16" | 1/8" | 1.03 | BRLK-116-18 | SSLK-116-18 |
| 1/8" | 1/8 " | 1.18 | BRLK-18-18 | SSLK-18-18 |
| 1/8" | 1/4" | 1.74 | BRLK-18-14 | SSLK-18-14 |
| 3/16" | 1/8" | 1.22 | BRLK-316-18 | SSLK-316-18 |
| 3/16" | 1/4" | 1.81 | BRLK-316-14 | SSLK-316-14 |
| 1/4" | 1/8" | 1.29 | BRLK-14-18 | SSLK-14-18 |
| 1/4" | 1/4" | 1.48 | BRLK-14-14 | SSLK-14-14 |
| 5/16" | 1/4" | 1.54 | N/A | SSLK-516-14 |
| 3/8 " | 1/4" | 1.59 | BRLK-38-14 | SSLK-38-14 |
| 3/8" | 3/8 " | 1.59 | BRLK-38-38 | SSLK-38-38 |
| 3/8" | 1/2" | 1.81 | BRLK-38-12 | SSLK-38-12 |
| 1/2" | 1/2" | 1.94 | BRL K-12-12 | SSLK-12-12 |
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
