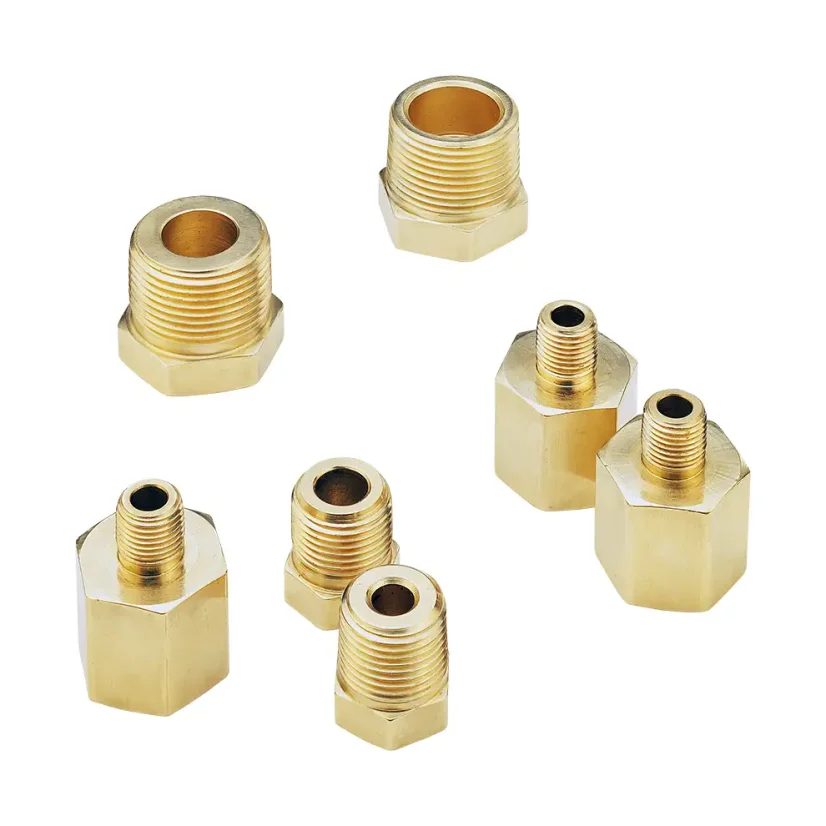

OMEGALOK™ Adaptors and Bushings
Available in Stainless Steel, Brass or Carbon Steel. Reduce Down to 1/8" NPT. Adapt Up to 1" NPT. Metric models available. Rugged Design. More
Item# (PN): RA_RB_serie Shipping and Payment
NPT Adapters and Bushings
NPT Thread | "B" Hex |
"A" IN |
Brass Model No. |
Stainless Steel Model No. |
|
Male | Female | ||||
Reducing adapters | |||||
1/8 | 1/4 | 1 1/8 | 1.50 | RA-18-14-BR | RA-18-14-SS |
1/8 | 1/2 | 1 1/8 | 1.50 | RA-18-12-BR | RA-18-12-SS |
1/4 | 1/2 | 1 1/8 | 1.69 | RA-14-12-BR | RA-14-12-SS |
7/16-20 | 1/4 | 1 1/8 | 1.94 | RA-716-14-BR | RA-716-14-SS |
1/2 | 3/4 | 1 3/8 | 1.94 | RA-12-34-BR | RA-12-34-SS |
1/2 | 1 | 1 5/8 | 2.16 | N/A | RA-12- 1-SS |
Reducing Bushings | |||||
1/4 | 1/8 | 7/8 | 1.09 | RB-14-18-BR | RB-14-18-SS |
1/2 | 1/8 | 7/8 | 1.09 | RB-12-18-BR | RB-12-18-SS |
1/2 | 1/4 | 7/8 | 1.09 | RB-12-14-BR | RB-12-14-SS |
3/4 | 1/2 | 1 1/8 | 1.17 | RB-34-12-BR | RB-34-12-SS |
1 | 1/2 | 1 3/8 | 1.36 | RB- 1-12-BR | RB-1-12-SS |
1 | 3/4 | 1 3/8 | 1.36 | RB- 1-34-BR | RB-1-34-SS |
1 1/4 | 3/4 | 1 3/4 | 1.48 | — | RB-114-34CS |
1 1/4 | 1 | 1 3/4 | 1.48 | — | RB-114-1CS |
1 1/2 | 1 | 2 | 1.56 | — | RB-112-1-CS |
Metric Thread Adapters
Thread Types | "Flats" mm |
"Length" mm |
Brass Part No. |
Stainless Steel Part No. |
|
Female NPT |
Male BSPT |
||||
1/8 | 1/8-28 | 14 | 27.7 | MTA1-1/8-1/8-BR | MTA1-1/8-1/8-SS |
1/4 | 1/4-19 | 19 | 36.1 | MTA1-1/4-1/4-BR | MTA1-1/4-1/4-SS |
3/8 | 3/8-19 | 22 | 38.1 | MTA1-3/8-3/8-BR | MTA1-3/8-3/8-SS |
1/2 | 1/2-14 | 27 | 49.3 | MTA1-1/2-1/2-BR | MTA1-1/2-1/2-SS |
3/4 | 3/4-14 | 34 | 51.3 | MTA1-3/4-3/4-BR | MTA1-3/4-3/4-SS |
1 | 1-11 | 41 | 58.4 | MTA1-1-1-BR | MTA1-1-1/2-SS |
BSPT | NPT | ||||
1/4-19 | 1/4 | 19 | 36.3 | MTA2-1/4-1/4-BR | MTA2-1/4-1/4-SS |
3/8-19 | 3/8 | 22 | 38.4 | MTA2-3/8-3/8-BR | MTA2-3/8-3/8-SS |
1/2-14 | 1/2 | 27 | 49.8 | MTA2-1/2-1/2-BR | MTA2-1/2-1/2-SS |
NPT | BSPP | ||||
1/8 | 1/8-28 | 14 | 25.1 | - | MTA3-1/8-1/8-SS |
1/4 | 1/4-19 | 19 | 33.5 | MTA3-1/4-1/4-BR | MTA3-1/4-1/4-SS |
3/8 | 3/8-19 | 22 | 35.8 | MTA3-3/8-3/8-BR | MTA3-3/8-3/8-SS |
1/2 | 1/2-14 | 27 | 44.2 | MTA3-1/2-1/2-BR | MTA3-1/2-1/2-SS |
3/4 | 3/4-14 | 34 | 48.0 | MTA3-3/4-3/4-BR | MTA3-3/4-3/4-SS |
1 | 1-11 | 41 | 53.3 | MTA3-1-1-BR | MTA3-1-1-SS |
BSPP | NPT | ||||
1/4-19 | 1/4 | 19 | 27.4 | MTA4-1/4-1/4-BR | MTA4-1/4-1/4-SS |
3/8-19 | 3/8 | 22 | 32.3 | MTA4-3/8-3/8-BR | MTA4-3/8-3/8-SS |
1/2-14 | 1/2 | 27 | 41.9 | MTA4-1/2-1/2-BR | MTA4-1/2-1/2-SS |
Replacement Ferrules - (pkg of 10)
Protection Tube O.D. |
Brass | Stainless Steel |
PTFE |
1/16" | B-FER-1/16 | SS-FER-1/16 | T-FER-1/16 |
1/8" | B-FER-1/8 | SS-FER-1/8 | T-FER-1/8 |
3/16" | B-FER-3/16 | SS-FER-3/16 | T-FER-3/16 |
1/4" | B-FER-1/4 | SS-FER-1/4 | T-FER-1/4 |
5/16" | B-FER-5/16 | SS-FER-5/16 | T-FER-5/16 |
3/8" | B-FER-3/8 | SS-FER-3/8 | T-FER-3/8 |
1/2" | B-FER-1/2 | SS-FER-1/2 | T-FER-1/12 |
*NOTE: PTFE can only be used with stainless steel compression fittings.
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
