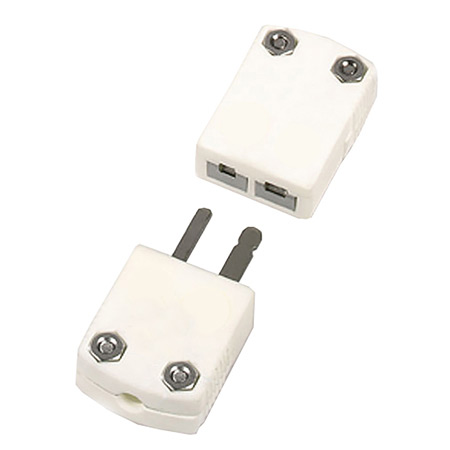

USHX / High Temperature Miniature Connector for Vacuum Applications

USHX Series Has No Glaze or Marking Ink to Contaminate High Vacuum Furnaces. Uses Removable Colour-Coded Dots for Thermocouple Type Identification. Ceramic Body Temp Rating: 650°C. Heavy Duty USHX Ceramic Construction. One-Piece Body with Removeable Cap Design. Oversized Terminal Screws for Easy Wiring. Accepts Stranded or Solid Wire up to 0,8 mm dia. More

Item# (PN): USHX Shipping and Payment

OMEGA USHX miniature connectors are ideal for use with fine diameter thermocouple wires in applications where high temperatures are required. USHX connectors are shipped with a removable colour-coding dot to conform to ANSI or IEC standards. For applications such as high vacuum furnaces where contamination would adversely affect the process. Two-piece ceramic construction assures long life, while the oversized terminal screws allow for easy wiring.

USHX connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.

(USHX-K-M, USHX-J-M, USHX-T-M, USHX-E-M, USHX-R/S-M, USHX-N-M, USHX-C-M, ...)
(USHX-K-F, USHX-J-F, USHX-T-F, USHX-E-F, USHX-R/S-F, USHX-N-F, USHX-C-F, ...)

Standard supply is ANSI version, if you want to order IEC version, please state this in the note.

Complete informations can be found in the spec sheet (PDF), see the "Download" section.

Download

SHX_en_spec_sheet.pdf (pdf, 491.2 kB)

ANSI and IEC color coding (EN) (pdf, 82.2 kB)

How is Temperature Measured?

Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
