M12 & M8 Thermocouple Compensated Cable

Add to favouritesAdd to compare list
Specify product selection
Variant does not exist
none (stripped leads)

Assembly of connectors (optional)

from € 17.70 excl. VAT
qty
OMEGA Engineering

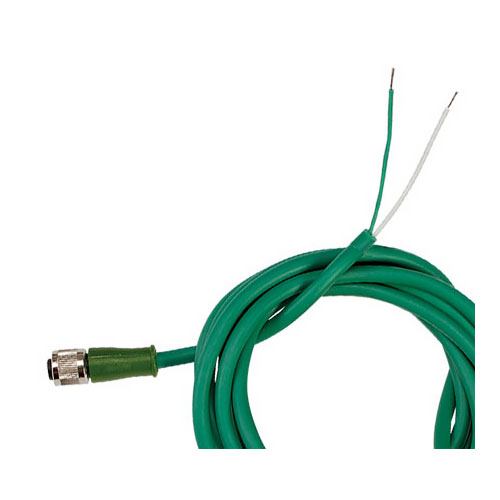

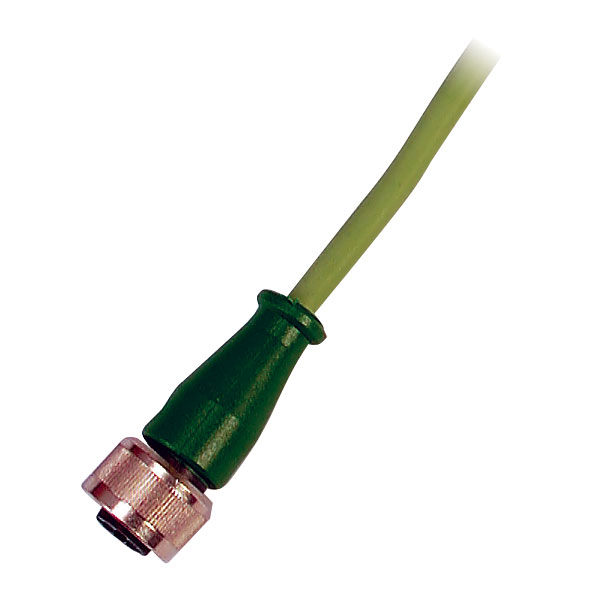

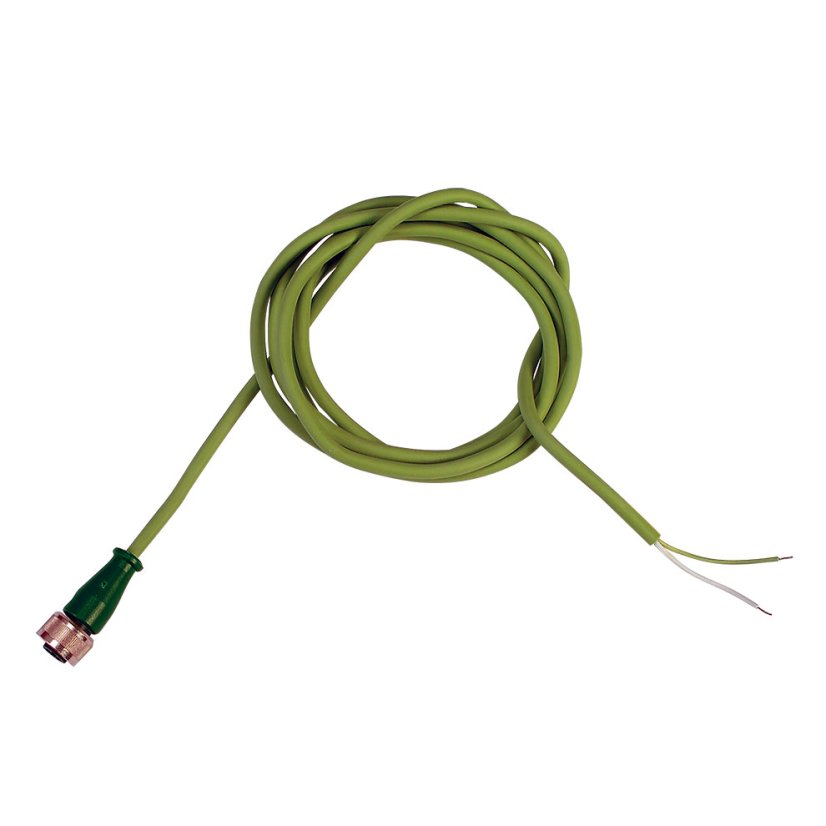

Available in M8 and M12 Constructions. Cables Include Female Connectors One End and Stripped Leads on the Other. Cables Have Thermocouple Compensated Wires. Cables Have Silicone Insulation and Jacket and Molded Nylon Connectors with Metal Attachment Nuts. Temperature Range: 90°C Max at the Connector and 180°C Max for the Cable. More

Item# (PN): M12tccables Shipping and Payment

Omega's line of M8 and M12 over molded extension cables are great for connecting M8 and M12 enabled thermocouple sensors to your process or measurement instrument.

    These cables include M8 and M12 connectors containing uncompensated connector sockets and thermocouple extension grade cables in Type K and J calibrations. Colors include both ANSI and IEC color codes (see table below). These cables are sold with stripped leads standard for easy connection directly to your measurement or control instrument. If you need a connector for attaching the cable to your instrumentation, Omega offers thermocouple connectors which connect to a wide variety of hand held and other instruments.

    The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.

    Comes with bare stripped ends as standard. You can order the cable, including the installation of connector B. Put the required connector in the basket together with the cable. If needed, order the required connectors separately, see "Related Products" below.

    SPECIFICATIONS:

    • Cable: #24AWG stranded thermocouple extension grade conductors with silicone rubber insulation and overjacket.
    • Connector: Nylon overmolded connectors with gold plated brass contacts and nickel plated brass connecting nut.
    • Temperature Limit: 180°C for the silicone extension cable and 90°C for the molded connector.
    • Color Codes: Available in both ANSI and IEC color codes (see table below).

    Thermocouple Type Outer Jacket Positive Conductor Negative Conductor Over Molded Connector Material
    Type K IEC Green Green White Green
    Type J IEC Black Black White Black
    Type K ANSI Yellow Yellow Red Yellow
    Type J ANSI Black White Red Black

    Complete informations can be found in the spec sheet (PDF), see the "Download" section.

    Parameters
    Thermocouple type K, J
    Download
    M12tccables_spec_sheet.pdf (pdf, 144.3 kB)
    Barevne_znaceni_ANSI_IEC.pdf (pdf, 82.2 kB)

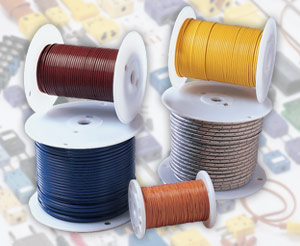

    Thermocouple Wire / How it Works?

    Thermocouple Wire / How it Works?

    The thermocouple wire or cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end). On the other side, as it has been explain in this other article, a thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end.

    Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end)...
