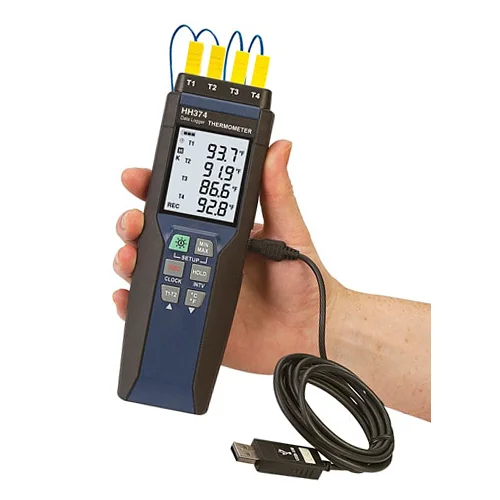

4 Channel Data Logger Thermocouple Type K Thermometer

Price

€ 369.50 excl. VAT

Manufacturer

Model (PN)

HH374

Calibration of Temperature (accredited, 100-1100°C)

3 points calibration

5 points calibration

Specify calibration points, address for calibration certificate...

can be ordered - date of dispatch to be specified

qty

4-Channel Thermocouple K Type Input. USB Interface with Windows® 7/8/10 Software. 16,000 Records per Channel. Hold/Max/Min/Avg Functions. Auto Shut-Off for Battery Saving. LED Back Light. More

Add to favourites Add to compare list

The HH374 has a high resolution and fast analogue-to-digital converter. Measurement settings and results are shown on the backlit LCD display. Data can be stored in the meter or directly saved on a computer through USB interface.

Recorded data can be further processed on a computer. With the exclusive software (included), recording/recalling of data and programming of logging parameters can be done directly through a PC.

If you are interested in temperature calibration, also select the appropriate temperature probes for the required number of channels.

SPECIFICATIONS:

Measurement Range: -200 to 1372°C (-328 to 2501°F)
Input Protection: 60V DC nebo 24 Vrms AC Max
Resolution: 0.1°C/°F <1000, 1°C/°F =1000
Accuracy: ±(0.1% of reading + 0.7°C) ±(0.1% of reading + 1.4°F)
Temperature Coefficient: 0.01% of reading + 0.05°C per °C (<18°C or >28°C)
Sample Rate: 1 time per second
Battery Type: 9V battery (included)
Battery Lifetime: Approximately 80 hours (alkaline battery)
AC Adaptor: 9 Vdc (8 to 10 Vdc maximum)
Operating Enviroment: -10 to 50°C and 10 to 90% RH (no condensing)
Storage Enviroment: -40 to 60°C and 10 to 75% RH
Dimensions: 197 H x 65 W x 36 mm D
Approximate Weight: 285 g
System Required: Windows 7/8/10

Download

HH374_spec_sheet.pdf (pdf, 269.2 kB)

HH374_en_manual.pdf (pdf, 1021.7 kB)

Data Logger / Introduction to Data Logging Devices

Technically speaking, a data logger is any device that can be used to store data. This includes many data acquisition devices such as plug-in boards or serial communication systems which use a computer as a real time data recording system. Most instrument manufacturers, however, consider a datalogger a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.

The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Data loggers are available in various shapes and sizes...

How is Temperature Measured?

Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.

Choose the right temperature measurement instrument for your application...
