DTC / Dual Standard Connector for Thermocouple, Pt100, Thermistor
Exclusive DTC Series Chamber Design Assures Electrical Isolation Between Circuits. Interlocking Parts for Added Strength. Single Screw Caps. No Probe Clamp Required. IEC or ANSI Color-Coded. Companion Dual Circuit Probe Available. Temperature Rating up to 180°C. Compatible with Two Prong Standard Size Connectors. More
Item# (PN): DTC Shipping and Payment

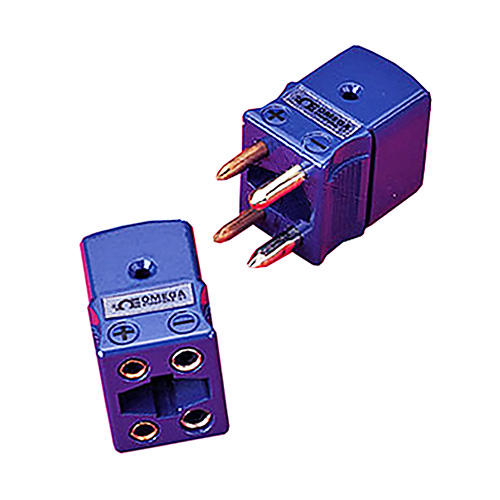

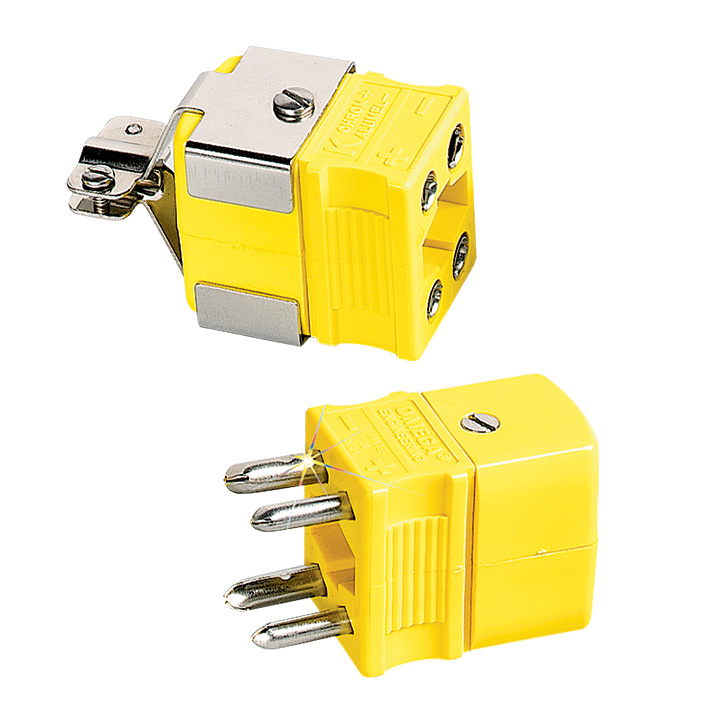

The OMEGA™ DTC is one connector which performs the function of two. The DTC connects two pairs of thermocouple wires or one dual thermocouple and two extension wires. The excellent thermal and electrical characteristics of the thermocouple-grade contacts assure high accuracy.
DTC connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.
Dimensions:
(DTC-K-M, DTC-J-M, DTC-E-M, DTC-T-M, DTC-R/S-M, DTC-N-M, DTC-U-M)
(DTC-K-F, DTC-J-F, DTC-E-F, DTC-T-F, DTC-R/S-F, DTC-N-F, DTC-U-F)
Standard supply is ANSI version, if you want to order IEC version, please state this in the note.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
