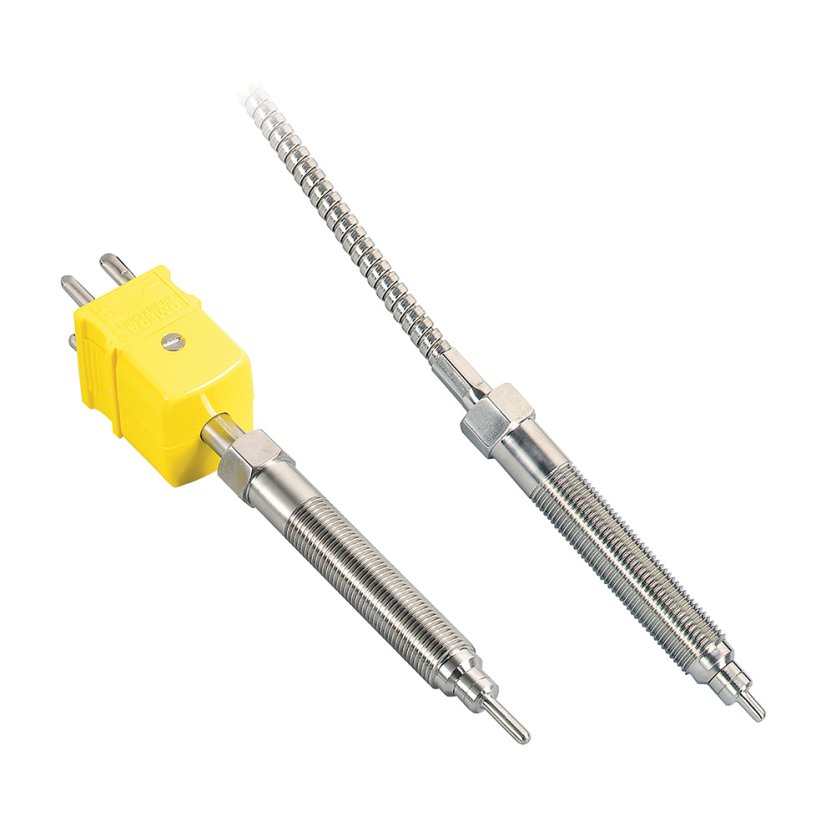

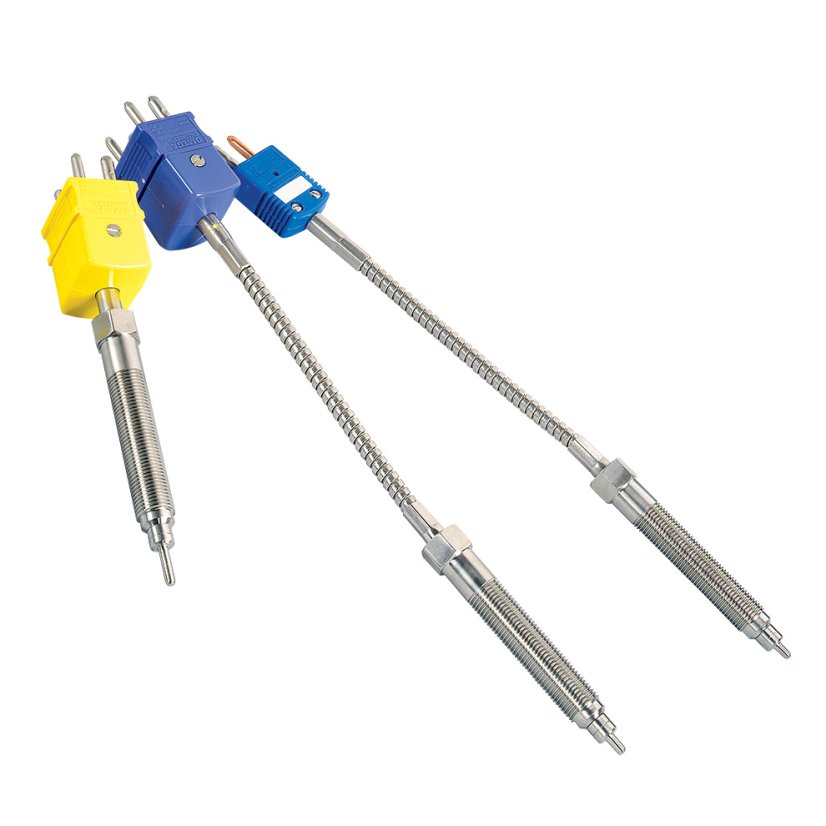

Thermocouple Probes for Plastic Extruders
Service Temperatures to 480°C. Single or Dual Element Probes with Quick-Disconnect Termination. Rigid Plug or Flexible Extension Models. 316 Stainless Steel Tips. Many “A” and “B” Dimension. Configurations Available. More
Item# (PN): TER_TEFE_SEFE_SERP Shipping and Payment
OMEGA’s Heavy Duty, Plastic Processing Thermocouples mount directly in extruder heads or die adapters of injection molding machines with sensor tip projected directly into the plastic melt. Immersion lengths, styles and mounting arrangements are available in a wide range of possible configurations. All thermocouples are constructed of Type 316 Stainless Steel.
Dimensions table:
Style | Dimension "A" (inches) | Dimension "B" (inches) |
1 | flush | 3 |
2 | 1/4 | 3 |
3 | 1/2 | 3 |
4 | 3/4 | 3 |
5 | 1 | 3 |
6 | flush | 6 |
7 | 1/4 | 6 |
8 | 1/2 | 6 |
9 | 3/4 | 6 |
10 | 1 | 6 |
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Advantages of the dual design:
The online configurator may not contain all available options. If you do not find what you are looking for, please contact us.
Complete informations can be found in the spec sheet (PDF), see the "Download" section.
Option Descriptions:
(1)-(2)-(3)
(1) Assembly Style select from:
TEFE for Dual Element Flexible Extension with DTC Connector
TERP for Dual Element Rigid Plug with DTC Connector
SERP for Single Element Rigid Plug with OST Connector
SEFE for Single Element Flexible Extension with OST Connector
(2) Calibration select from:
J for J type thermocouple
K for K type thermocouple
T for T type thermocouple
E for E type thermocouple
(3) Dimension/Size select from:
1 for Dimension Style 1
2 for Dimension Style 2
3 for Dimension Style 3
4 for Dimension Style 4
5 for Dimension Style 5
6 for Dimension Style 6
7 for Dimension Style 7
8 for Dimension Style 8
9 for Dimension Style 9
10 for Dimension Style 10
Thermocouple Sensor / What is a Thermocouple?
A thermocouple is a sensor for measuring temperature. This sensor consists of two dissimilar metal wires, joined at one end, and connected to a thermocouple thermometer or other thermocouple-capable device at the other end. When properly configured, thermocouples can provide temperature measurements over wide range of temperatures.
Thermocouples are known for their versatility as temperature sensors therefore commonly used on a wide range of applications...
How is Temperature Measured?
Temperature can be measured via a diverse array of sensors. All of them infer temperature by sensing some change in a physical characteristic. Six types with which the engineer is likely to come into contact are: thermocouples, resistive temperature devices (RTDs Pt100 and thermistors), infrared radiators, bimetallic devices, liquid expansion devices, and change-of-state devices.
Choose the right temperature measurement instrument for your application...
What is a Type K Thermocouple?
What Are Common Applications for Thermocouples?
Thermocouples are the most widely used temperature sensors on the planet due to their combination of wide temperature capabilities, ruggedness, and low cost. Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites and spacecraft.
When it comes to high temperatures, small size, fast response, high vibration or shock, most times you will find thermocouples providing the temperature measurements.
