HGST / Low Noise Standard Size Connector

Illustration image (color of the connector according to the selected type of thermocouple, HGST-T-M and HGST-T-F)

Illustration image (color of the connector according to the selected type of thermocouple, HGST-T-M)

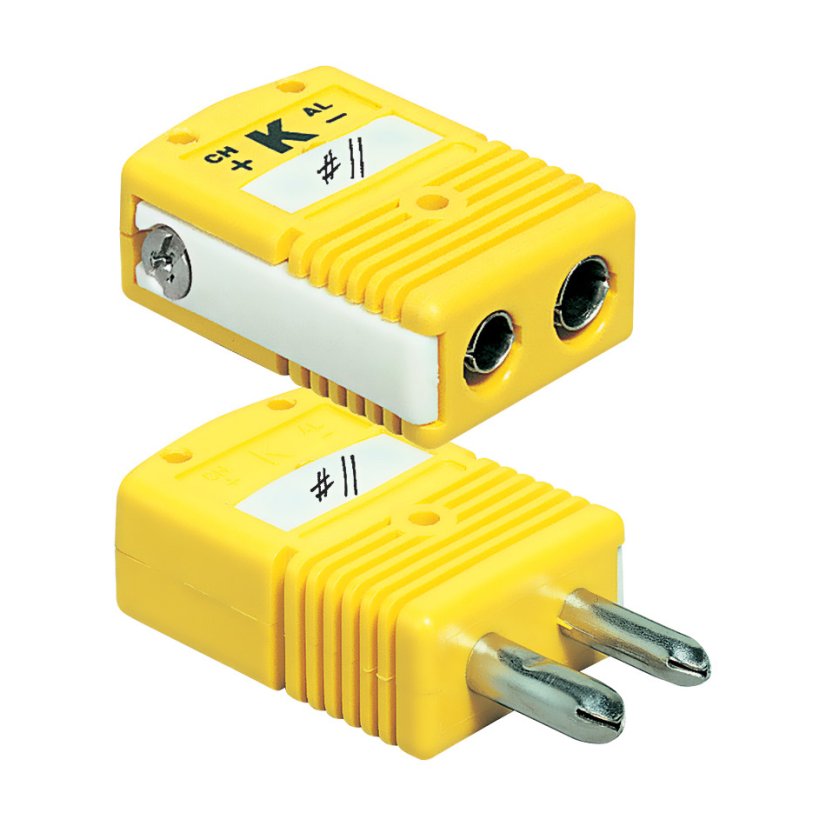

Hollow Pin Connector HGST-K-M and the counterpart HGST-K-F

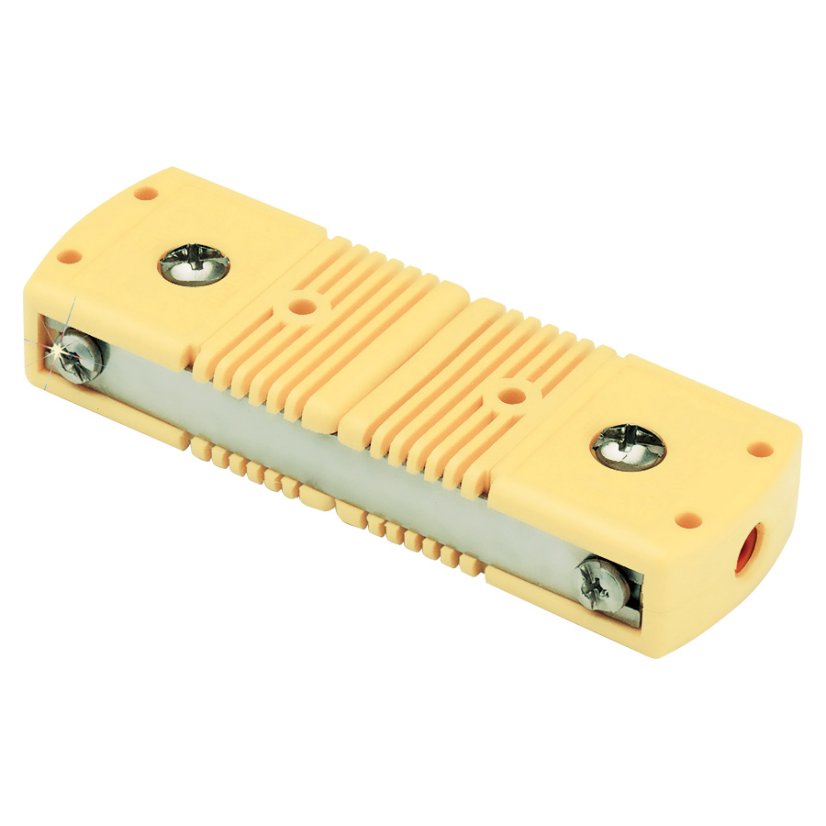

Illustration image (color of the connector according to the selected type of thermocouple, HGST-K-M and HGST-K-F)

More photos (5)

Add to favourites Add to compare list

HGST Series Connectors. Connector Ground Strap Protects Against Electrical Noise Errors. Solid Pin Male Construction add durability. Works with Shielded Wire -- Best with Twisted Shielded Wire. Superior Mechanical Connection Locks Male and Female Connectors. Color-Coded for Thermocouple Type. Environmentally Friendly Cadmium-Free Liquid Crystal Polymer Shell. Write-On Windows for Easy Identification. Rated to 260°C. More

Item# (PN): HGST Shipping and Payment

Type K and E are available with solid pins, other types of plugs are only available with hollow pins.

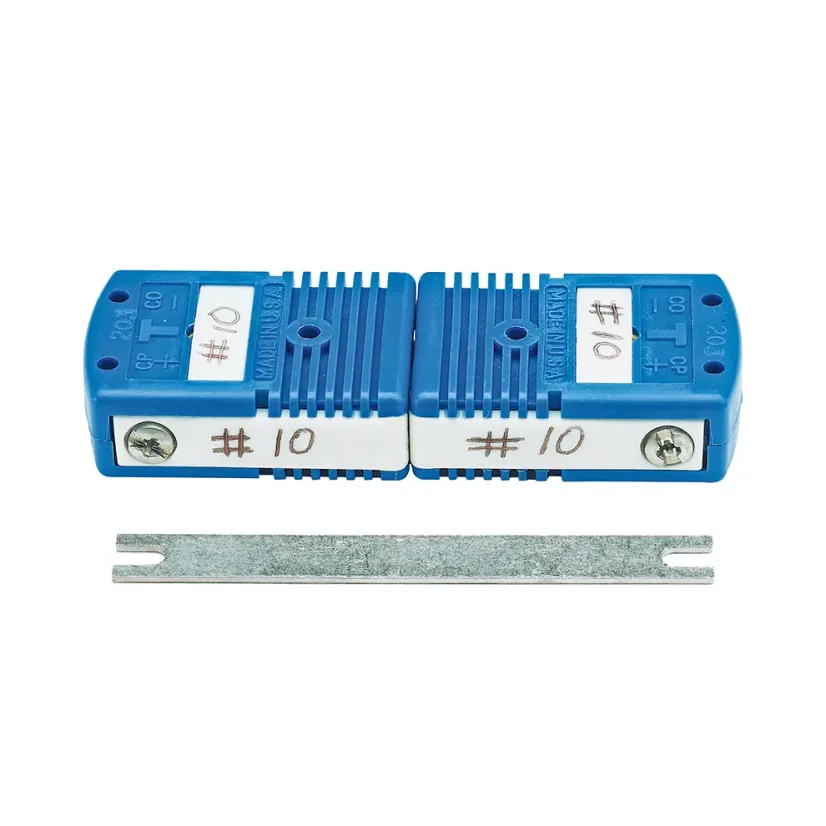

The new HGST low noise connectors are designed to provide easy connection of ground wires to probes and extension wires. The drain wire of a 20 AWG twisted shield cable or the shield of the overbraided wire is crimped and held in place by the HGST’s internal hardware. The HGST has excellent thermal and electrical characteristics to assure high accuracy. Each connector includes an HCP-L and HCP-HGST write-on window. Ground straps GS-GST may be ordered separately to provide additional mechanical rigidity and strengthen the mechanical bond between the connectors. Ground straps also maintain the electrical contact through the connector, protecting against electrical noise errors. Male connectors with a solid pin construction for extra durability.

The connectors are also designed for use with Pt100 and thermistors, select uncompensated type U.

HGST-K-M, HGST-K-F and more

(HGST-K-M, HGST-J-M, HGST-T-M, HGST-E-M, HGST-R/S-M, HGST-N-M, HGST-U-M)
(HGST-K-F, HGST-J-F, HGST-T-F, HGST-E-F, HGST-R/S-F, HGST-N-F, HGST-U-F)

Standard supply is ANSI version, if you want to order IEC version, please state this in the note.

Complete informations can be found in the spec sheet (PDF), see the "Download" section.
